manual LAN Controller V3.0 – LANKON-008
www.tinycontrol.eu
SENSORS CONNECT

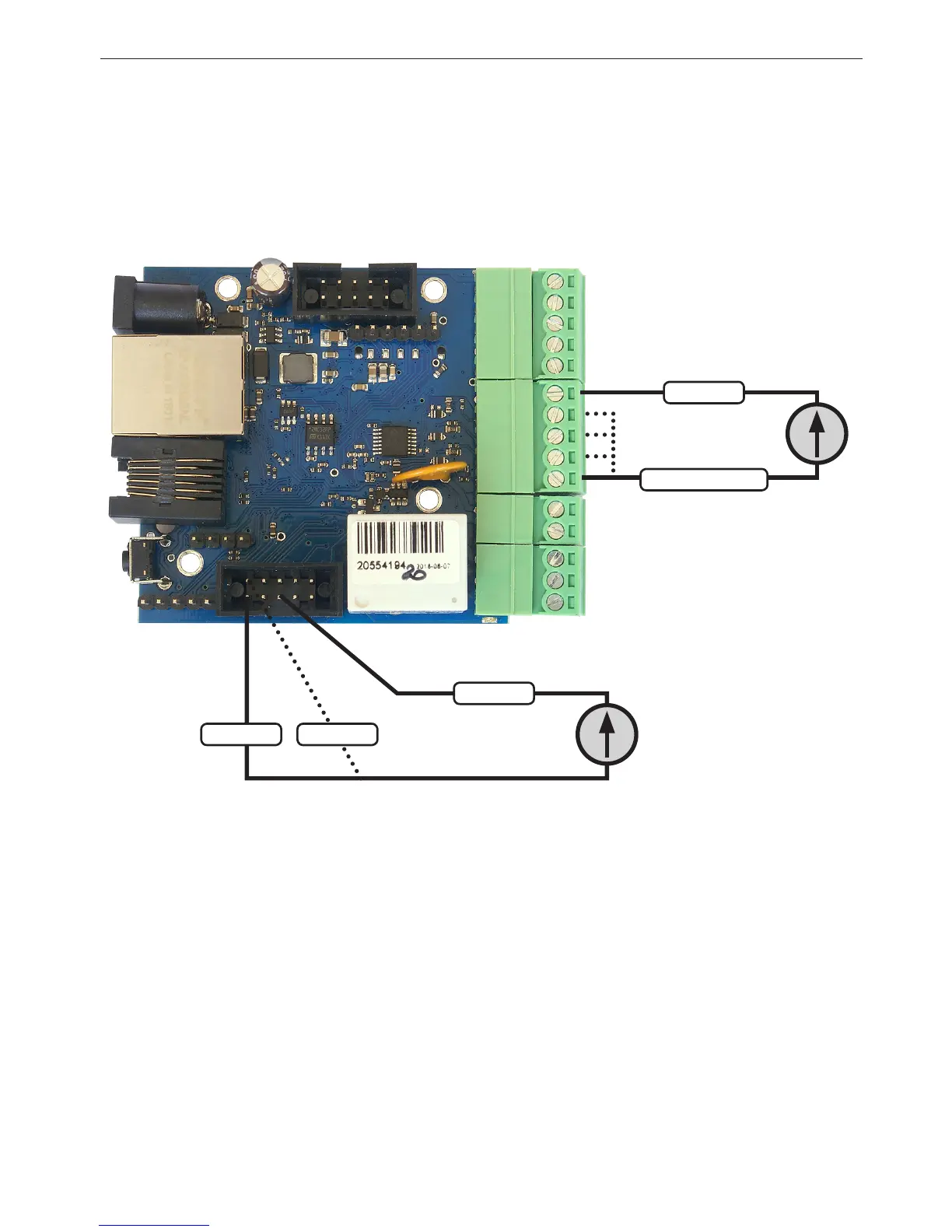

1. Measurement of DC voltage at the inputs INPA1÷INPA4 (3÷33V)
To enable the measurement to be in the "Input" to choose for INPA1÷INPA4 range
Vin = 3.3V or 33V, and possibly small signal strengthening GAIN.
For INPA5 and INPA6 can turn on only 3.3V range.
Measured voltage:
0 ÷ 3.3 V DC
Measured
voltage:
0 ÷ 3.3 V DC
0r
0 ÷ 33 V DC
GND
GND
INPA6
Pin5
Pin2Pin1
INPA1÷INPA4
INPA5
