Product functions
In more detail…
GB
IE
NOTE: A longer workpiece should be supported after it leaves the
machine to ensure a good even finish.

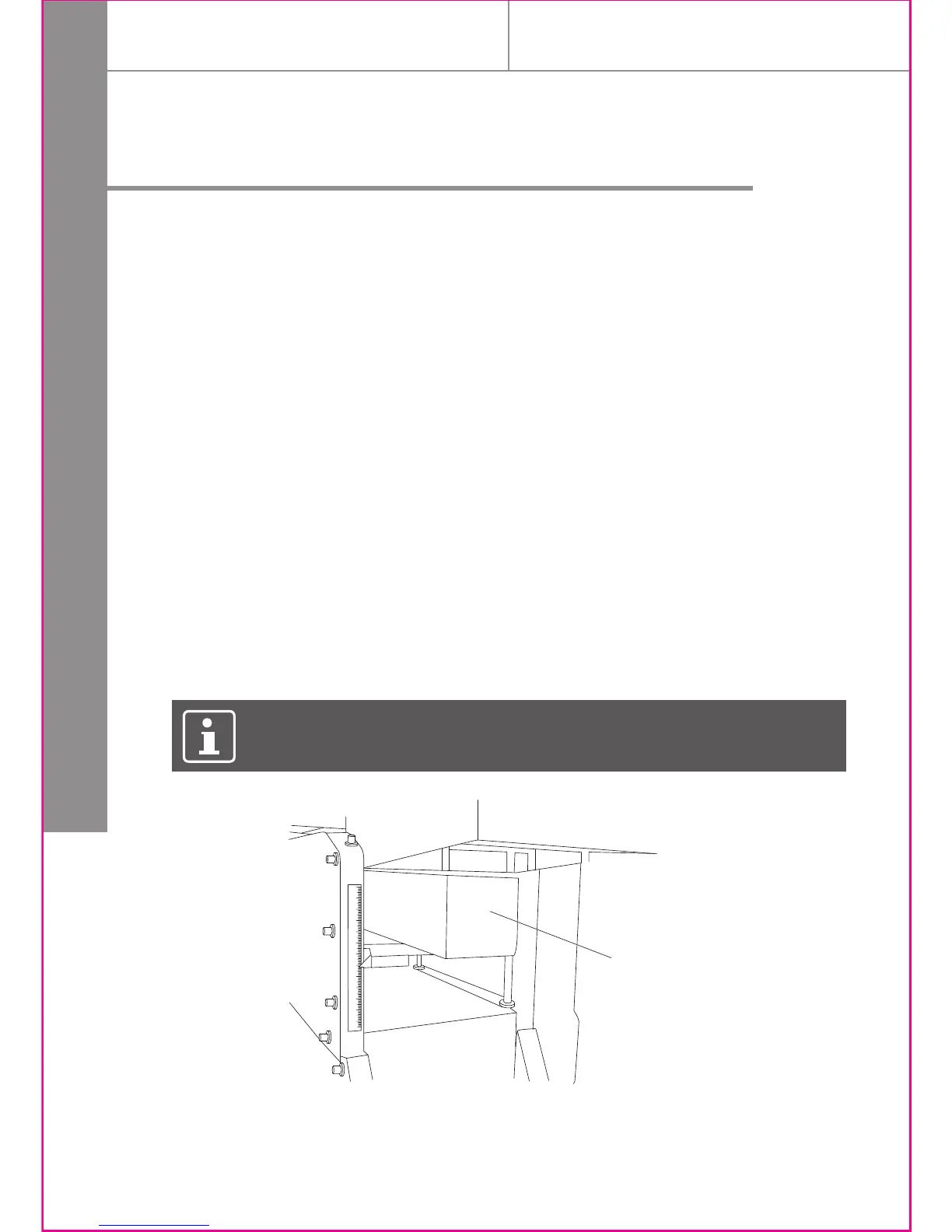

Fig. 31
3) Setting the depth of cut
The depth of cut is set by how high / low the thicknessing bed is in relation to the
cutter-block.
> Measure the workpiece.
> Set the bed to just over this measurement, using the scale to the left of the in-feed
table.
> Turn the height adjusting handle anticlockwise to lower the thicknessing bed,
clockwise to raise it.
> Ensure that the cutter block is free from foreign objects (including the workpiece
to be thickened).
> Connect the planer thicknesser to the mains supply.
> Turn the thicknesser on with the green “1” button.
> Allow the planer to reach its maximum speed.
> Place the workpiece onto the in-feed table.
> Turn the height adjustment handle (11) half a turn clockwise to raise the bed.
> Continue this process until the workpiece comes into contact with the thicknesser
drive rollers.
> Once the workpiece comes into contact with the rollers they will automatically
“pull” it through the machine and over the cutterblock.
> Continue this process until the workpiece is at the desired thickness.
