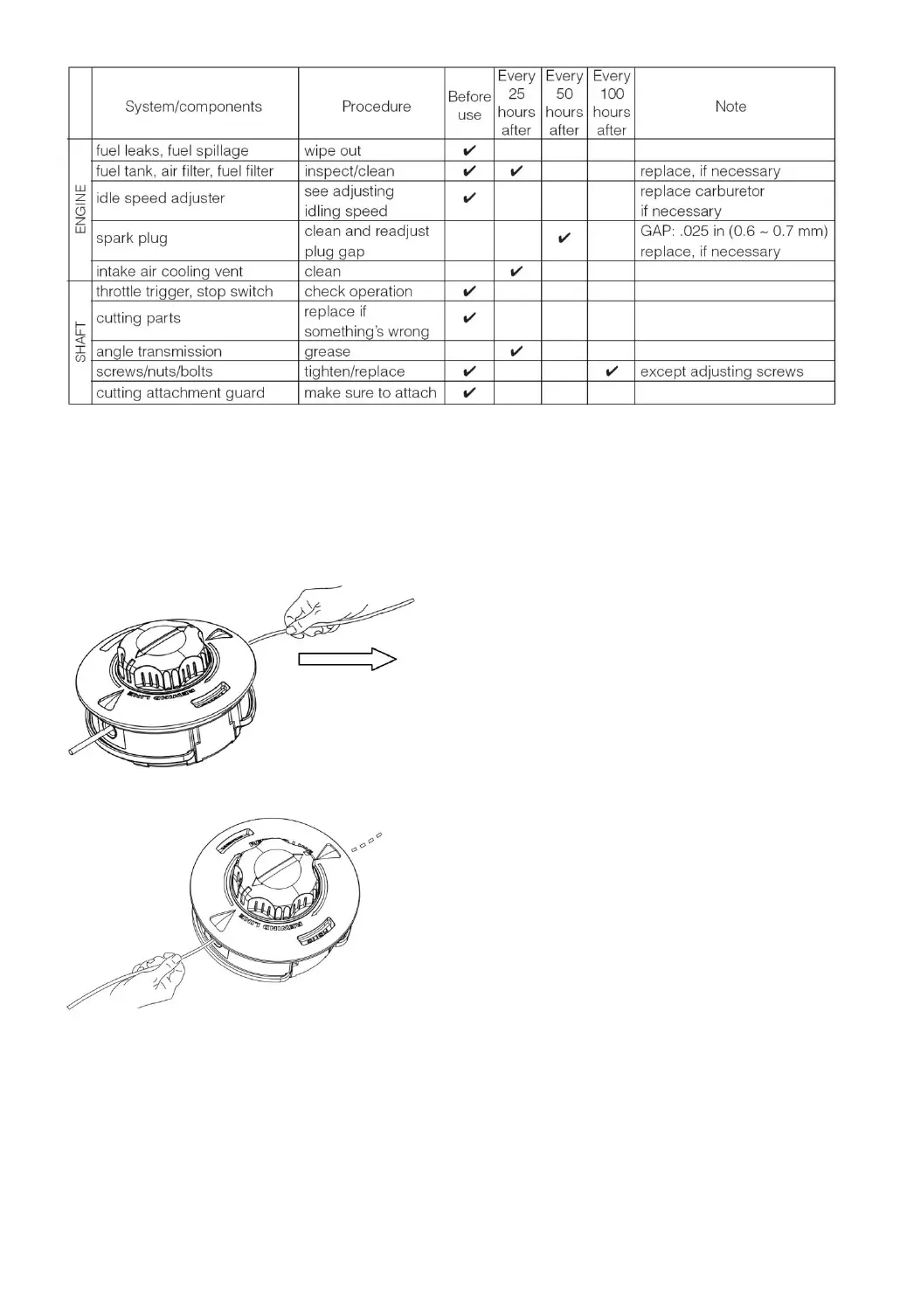

REFILLING TRIMMING LINE
1. When the trimmer line is about to run out, you need to reload a new one. For replacement line, use a
diameter of 2.4mm (.095in). The spool is capable for a line up to 4m. Avoid using a larger line as it may
cut down the trimming performance.
2. Line up the arrow marks on knob and body of the head. Pull out the trimmer line from one side.
3. Insert new trimmer line through one of the eyelets to the other side.
4. Extend both ends of the line until their length matches.
