O P E R AT I N G M A N U A L
Thermostat
Introduction

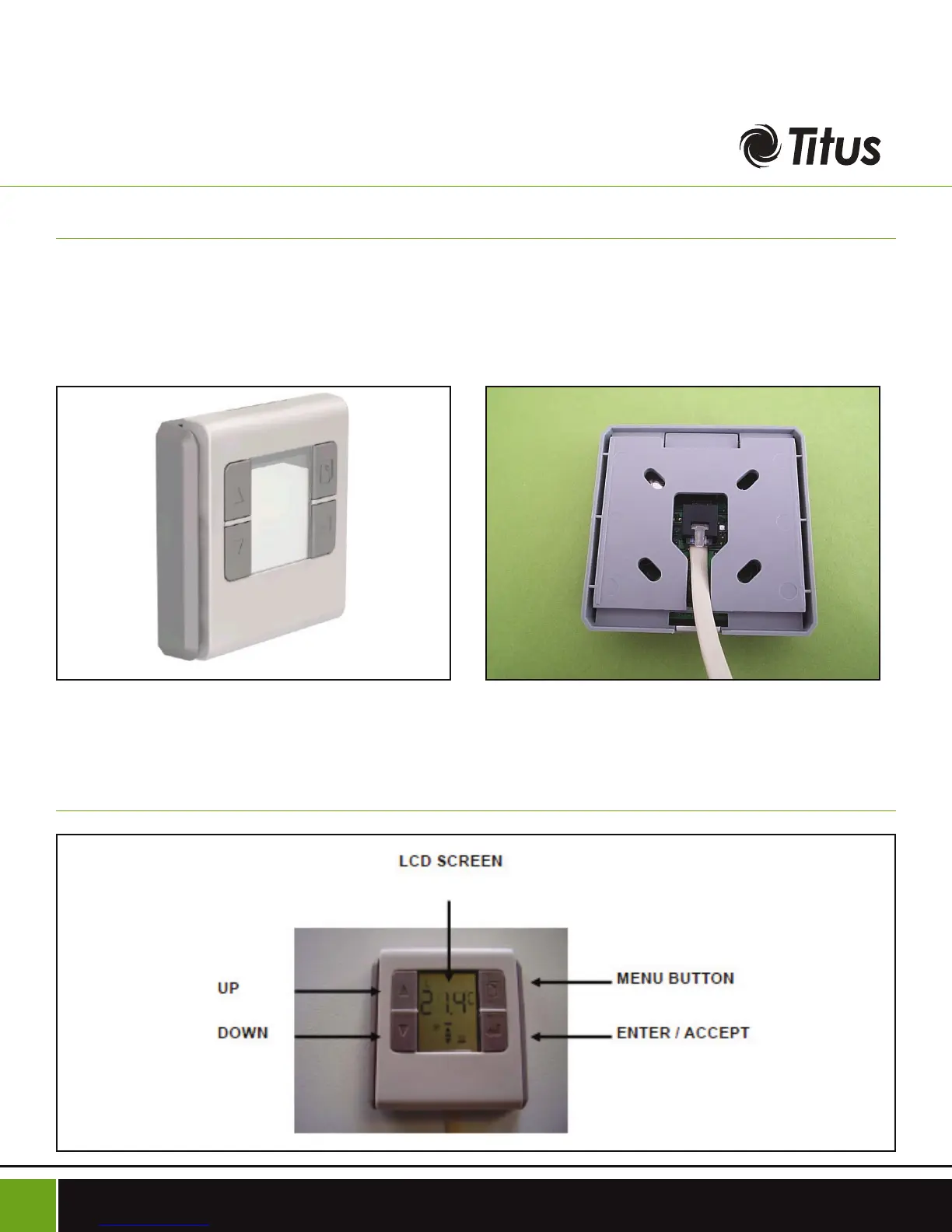

This Setup module is fitted with an LCD display. The ad-
juster is supplied in an aesthetically pleasing, compact 3”
by 3 ¼” plastic enclosure. The unit provides for the com-
missioning and configuration of Titus MLM controllers.
The unit is plugged into any open RJ12 socket provided on
the set of diffusers connected to a power pack. One RJ12
socket is available on the back of the diffuser tile on the
MLM connection box and the other RJ12 socket is available
in the trim of the diffuser on the MLM interface board.
Operating Panel General
