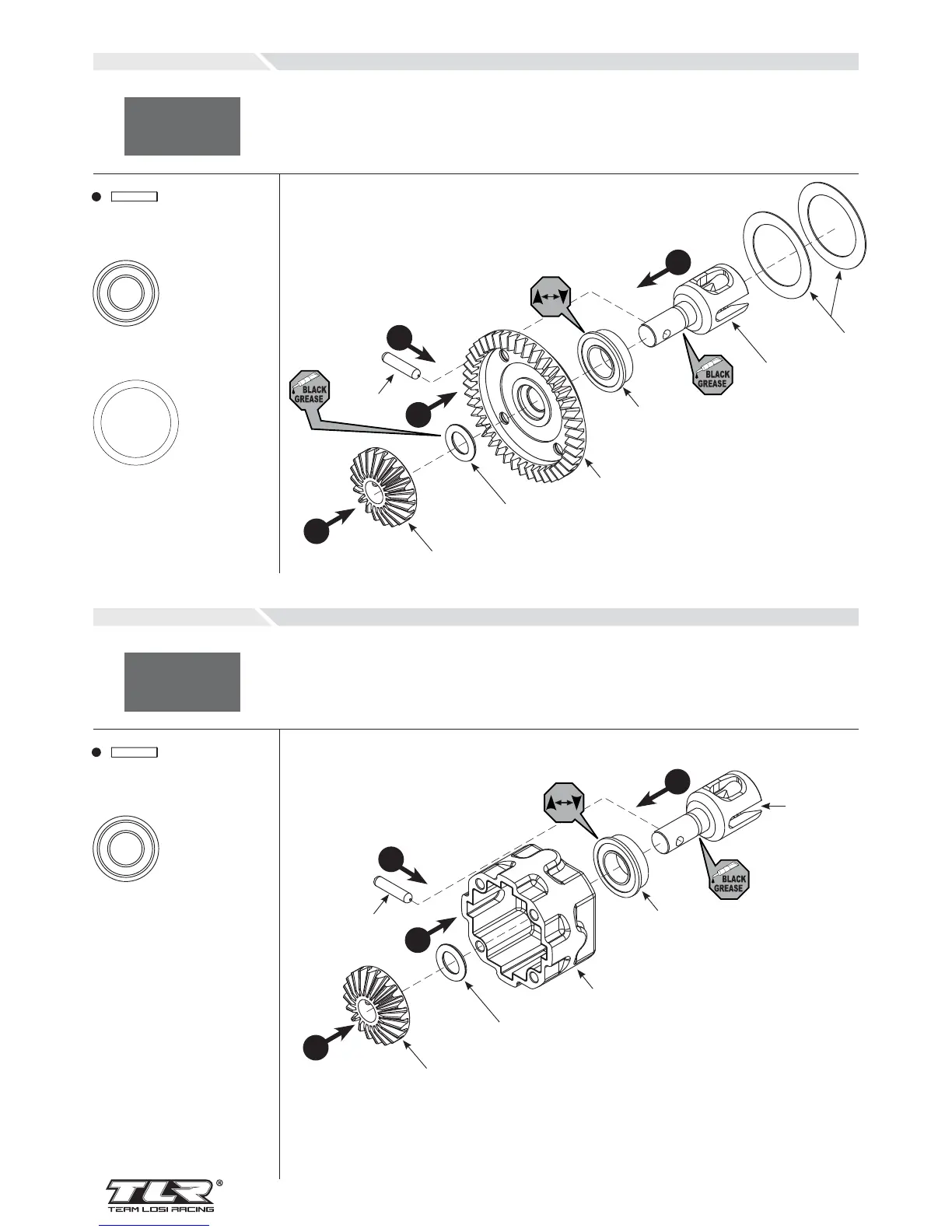

B-1
EN Ring Gear Assembly
DE Zusammenbau des Tellerrads
FR Montage du planétaire
IT Assemblaggio corona dentata
B-2
EN Differential Case Assembly
DE Zusammenbau des Differenzialgehäuses
FR Assemblage du corps de différentiel
IT Assemblaggio alloggiamento diff
LOSA6948
TLR242011
LOSA3505
LOSA3502
1
2
3
4
LOSA3518
LOSA3553
LOSA6948
LOSA3505
LOSA3502
LOSA3518
1
2
3
4
LOSA3500
LOSA3553
LOSA4452
LOSA3518 x 1
2.5 x 12.80mm
LOSA6948 x 1
F 8 x 14 x 4mm
LOSA3518 x 1
2.5 x 12.80mm
LOSA6948 x 1
F 8 x 14 x 4mm
LOSA4452 x 2
14 x 17 x 0.1mm
