TLR 8IGHT-T E 3.0 - TOOLS REQUIRED ERFORDERLICHE WERKZEUGE OUTILS NÉCESSAIRES UTENSILI NECESSARI; Steering Link Assembly

9
9
A-1

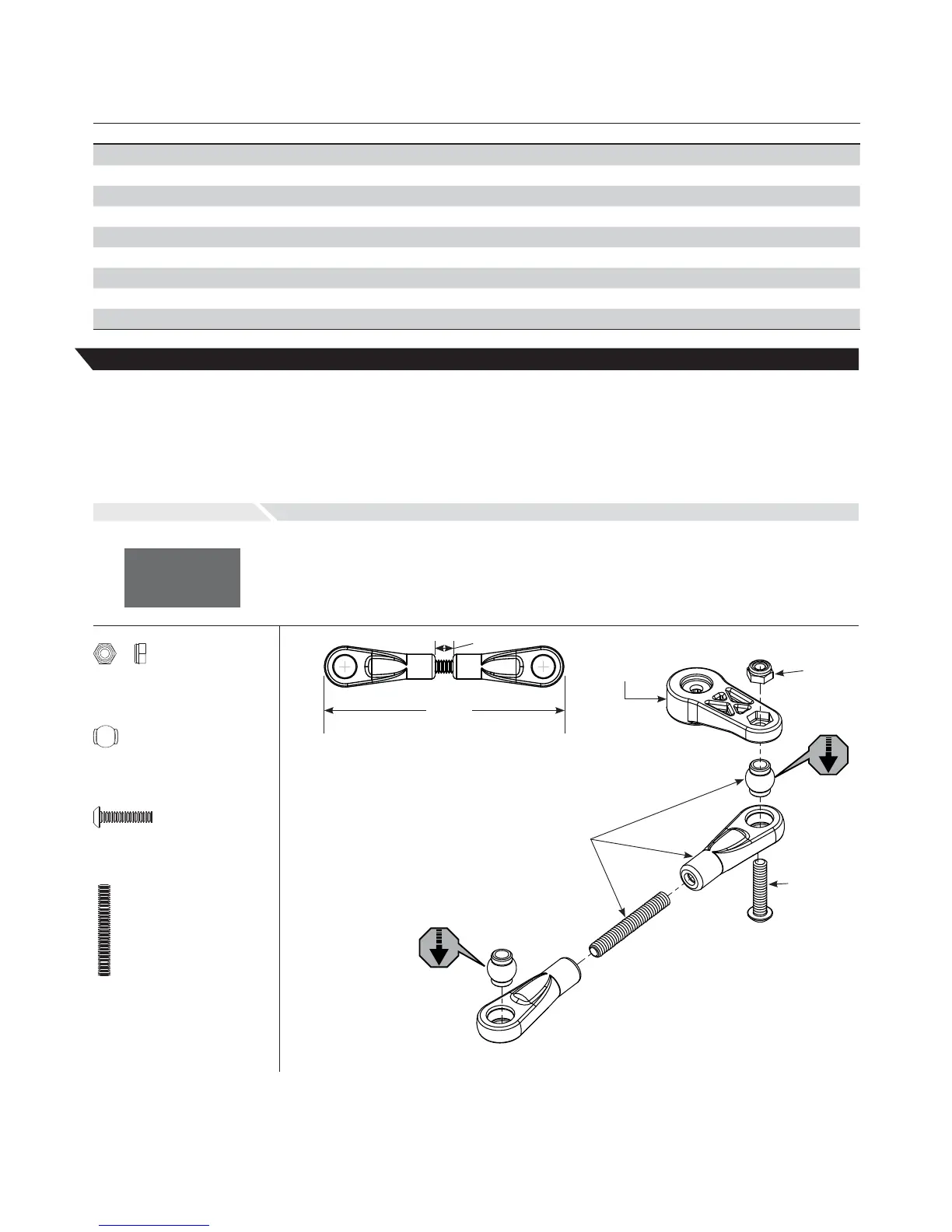

EN Steering Link Assembly
DE Zusammenbau des Lenkgestänges
FR Assemblage de la tringlerie de direction
IT Assemblaggio rinvii sterzo
Completed Kit Specifi cations
20.08 in (560.7mm) Overall Length\Gesamtlänge\Longueur totale\Lunghezza totale del telaio
14.9–15.1 in (379-383mm) Wheelbase\Radstand\Empattement\Interasse
16.4 in (417mm) Front Track Width\Spurbreite vorne\Largeur de la voie avant\Larghezza zona anteriore
16.4 in (417mm) Rear Track Width\Spurbreite hinten\Largeur de la voie arrière\Larghezza zona posteriore
7.3 in (185mm) Overall Height\Höhe\Hauteur totale\Altezza generale
LOSA9168
LOSA6306
58.34mm
LOSA6256
LOSA6306 x 1
4-40 x 3/16”
LOSA6044 x 2
rod ball ends
LOSA6256 x 1
4-40 x 1/2”
LOSA6045
LOSA6045 x 1
5-40 x 7/8”
4.5mm
TOOLS REQUIRED \ ERFORDERLICHE WERKZEUGE \
OUTILS NÉCESSAIRES \ UTENSILI NECESSARI
ENGLISH DEUTSCH FRANÇAIS ITALIANO
.050” Hex Wrench 0,050-Zoll-Inbusschlüssel Clé hexagonale, 1,27 mm Chiave esagonale da 0,050”
1.5mm Hex Wrench 1,5 mm-Inbusschlüssel Clé hexagonale, 1,5 mm Chiave esagonale da 1,5 mm
1/16” Hex Wrench 1/16”-Inbusschlüssel Clé hexagonale, 1/16”” Chiave esagonale da 1/16”
5/64” Hex Wrench 5/64”-Inbusschlüssel Clé hexagonale, 5/64” Chiave esagonale da 5/64”
3/32” Hex Wrench 3/32”-Inbusschlüssel Clé hexagonale, 3/32” Chiave esagonale da 3/32”
Body Scissors Lexanschere Ciseaux à lexan Corpo forbici
Needle-Nose Pliers Spitzzange Pince à bec Pinze a becchi lunghi
Regular Pliers Normale Zange Pince ordinaire Pinze normali
Hobby Knife Hobbymesser Cutter Cutter da modellismo
