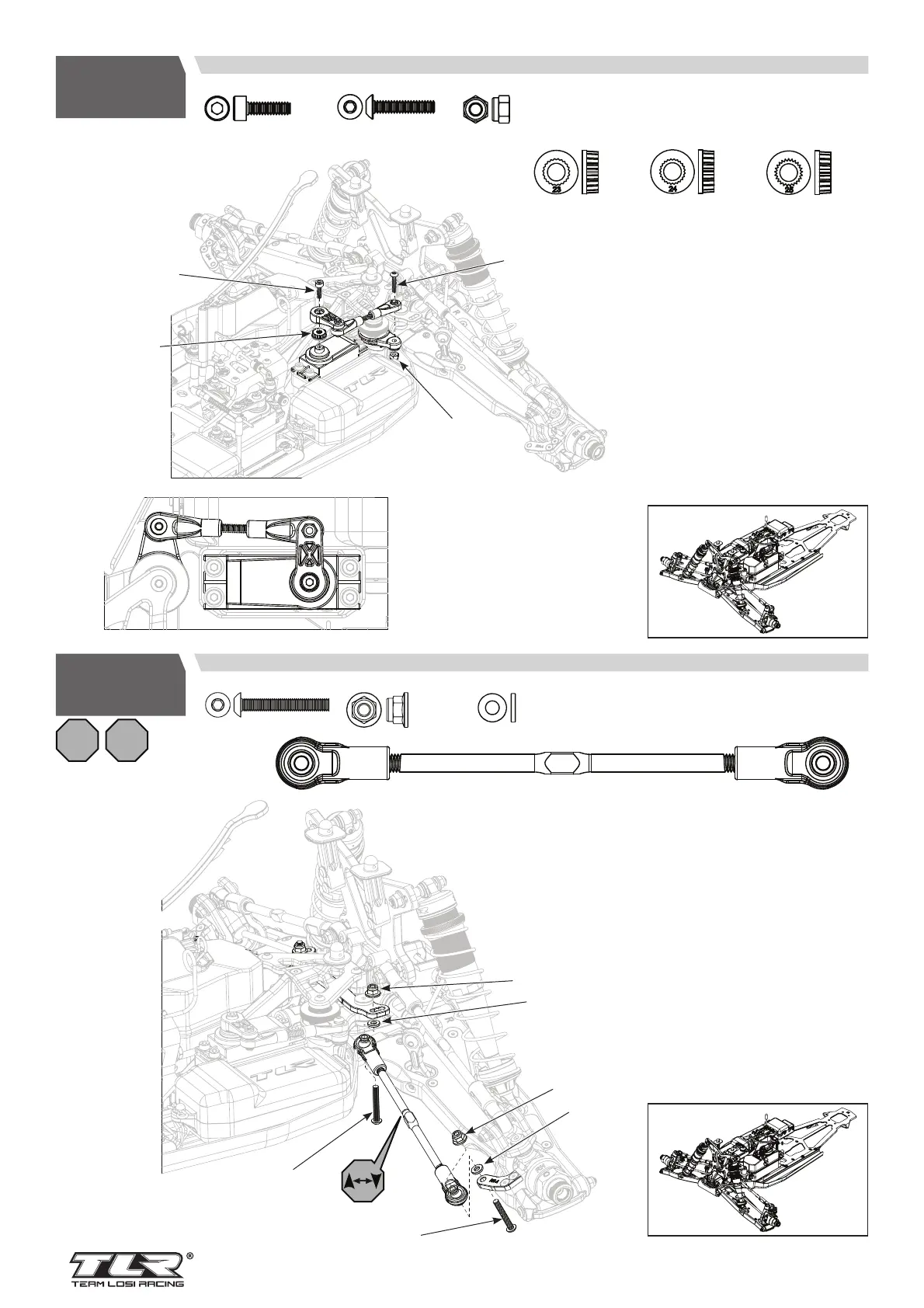

TLR 8IGHT-XT - H10 Servo and Steering Assembly; EN Use correct insert for servo spline.

M3 x 10mm CH
M3 x 14mm BH
M3 Locknut
TLR5932 x1 TLR5910 x1 TLR6313 x1
TLR241030 x1 TLR241030 x1 TLR241030 x1
M3 x 20mm BH
M3 Flanged
2mm
TLR5911 x4 TLR245016 x4 TLR336007 x4
x2
EN Use correct insert for servo spline.
DE Verwendung des richtigen Einsatzes
für die Servoverzahnung.
FR Utilisez la bonne insertion pour la
cannelure du servo.
IT Utilizzare l’inserto adatto per la
scanalatura del servo.
TLR5910
TLR5932
TLR6313
TLR241030
L
R
L
R
L
L
TLR5911
TLR336007
TLR336007
TLR245016
TLR245016
TLR5911
60
60
H10
H11
