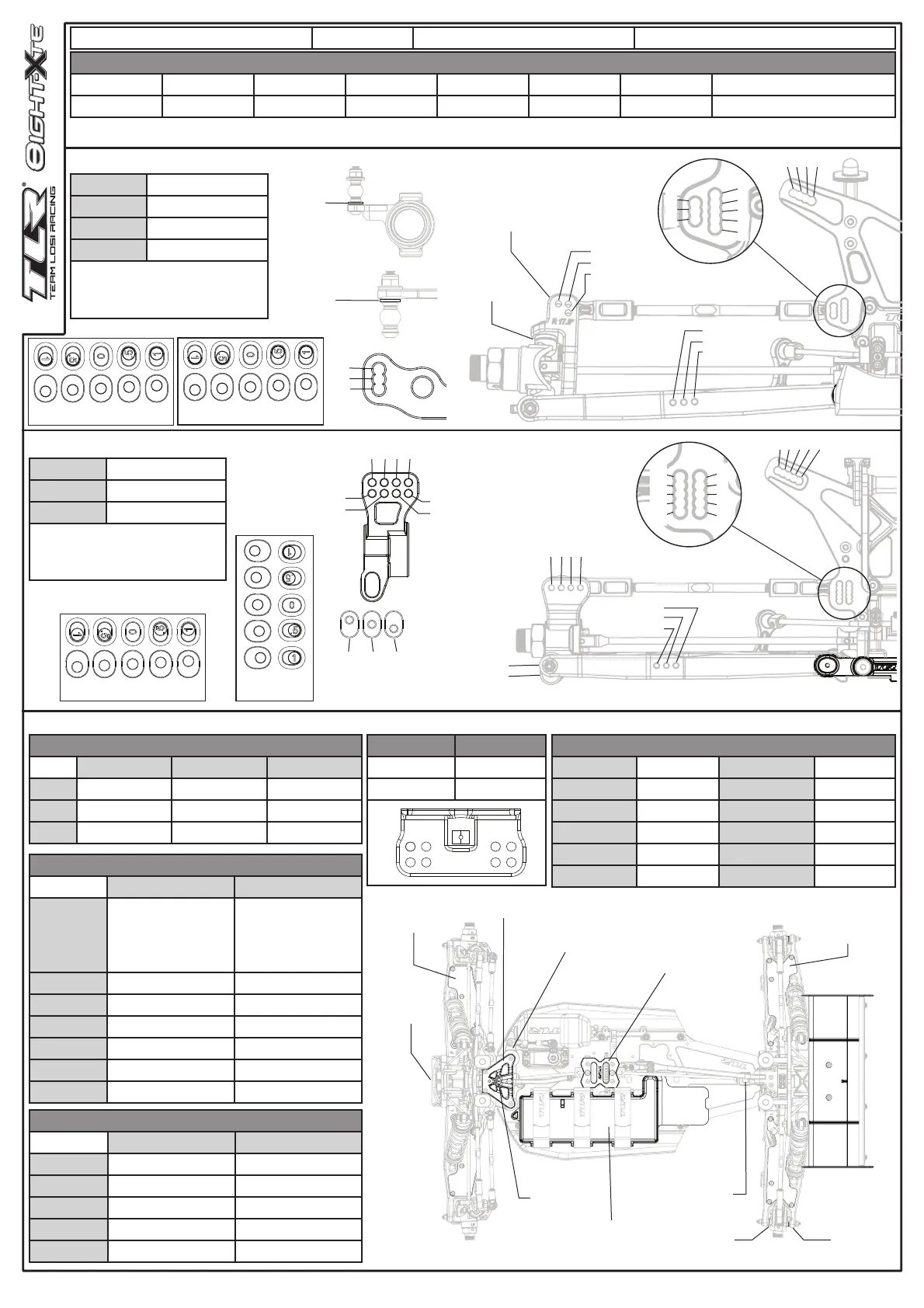

TLR 8IGHT-XT - Page 74

D Pivot, LR
B Pivot
A Pivot
C Pivot
5
4
3
2
1
10
9
8
7
6
B
A
Low A
 1mm
 2mm
 Pl  Al
 17.5  20
Shocks
Shocks
Front Rear
Shock Type
 Bladder
 Re Bladder
 Emulsion
 Vented
 Bladder
 Re Bladder
 Emulsion
 Vented
Shaft Dia  3.5  4.0  3.5  4.0
Piston 6 x 1.3 Taper Down 6 x 1.3 Taper Down
Oil 37 32
Spring Orange Red
Stroke
Droop 27 20
Differentials
Differentials
Front Center Rear
Fluid 7,000 12,500 5,000
Pins  AL  STL  AL  STL  AL  STL
Case  STD  HD  STD  HD  STD  HD
Tires
Tires
Front Rear
Brand
Tread
Compound
Insert
Sauce
Ride Ht 38 Body On
Camber -1.5˚
Toe 1.5 Out
Sway Bar 2.4mm
Notes: _______________________
_____________________________
_____________________________
Ride Ht 39 Body On
Camber -1.5˚
Sway Bar 2.8mm
Notes: _______________________
_____________________________
_____________________________
Electronics
Electronics
Radio Servo
ESC Battery
Motor Pinion/Spur
Initial Brake Drag Brake
Thro Prof Timing Adv
Thro Expo Steering Expo
Track Conditions
Track Conditions
 Indoor  Tight  Smooth  Hard Packed  Blue Groove  Wet  Low Bite  High Bite
 Outdoor  Open  Rough  Loose/Loamy  Dry  Dusty  Med Bite  Other
Name: Kit Setup Date: Event: Track:
4 3 2 1
3
2
1
D C B A
D C B A
A C B
 A
 B
Low D
Low C
Low A
Low B
8
7
6
5
4
3
2
1
 0mm
 1mm
 2mm
Inside
Middle
Outside
Inside
Middle
Outside
 0mm
 1mm
 2mm
 Wing
 None
 Composite
 Carbon
 None
 Composite
 Carbon
 20g
 40g
Battery Position __FWD___
 20g
 40g
 1
 2
 3
 1
 2
 3
 Composite
 Aluminum
 Composite
 Aluminum
 Composite
 Carbon
Front Suspension
Rear Suspension
Chassis
5 4 3 2 1
Wing
Wing
Brand TLR
 Wicker Bill .250
F














74
74
