This document is an instruction manual for the TMA T120 Vacuum Cleaner. It provides comprehensive information on the device's function, technical specifications, usage, and maintenance.

Function Description:

The TMA T120 is a cordless stick vacuum cleaner designed for household use. It functions as a versatile cleaning appliance, capable of vacuuming dry debris from various surfaces. The vacuum features a main motor, an extension tube, and a motorized LED floor brush, making it suitable for different cleaning tasks. It also includes several attachments like a 2-in-1 brush, a cleaning brush, and a crevice nozzle for specialized cleaning. The vacuum operates on a rechargeable Li-ion battery pack, offering cordless convenience. It is designed to be stored on a wall hanger when not in use.

Important Technical Specifications:

Model: T120
Adapter Input Voltage: 100-240V~50/60 Hz
Adapter Output Voltage: 26V
Battery Type: Li-ion batteries (as mentioned in safety instructions)
Operating Temperature Environment: 0 to 40 degrees Celsius

Usage Features:

The TMA T120 offers several user-friendly features:

Cordless Operation: Powered by a rechargeable battery pack, providing freedom of movement without being tethered to an outlet.
Multiple Cleaning Modes: Equipped with a suction mode switch, allowing users to adjust suction power as needed. The manual recommends using the low suction mode for longer runtime and high suction mode for complicated environments or heavy objects.
Battery Indicator: Features a battery indicator to show the remaining power level. The manual advises charging when the last light flashes.
Motorized LED Floor Brush: Enhances cleaning efficiency, especially in dimly lit areas, and is suitable for various floor types.
Versatile Attachments:
- Extension Tube: Extends the reach of the vacuum for cleaning high or hard-to-reach areas.
- 2-in-1 Brush: Can be converted between a crevice tool (bristle pulled back) and a brush (bristle pushed out) for different cleaning needs.
- Cleaning Brush: Useful for general surface cleaning.
- Crevice Nozzle: Ideal for narrow gaps and edges.
Wall Hanger: Provides a convenient storage solution, keeping the vacuum organized and easily accessible.
Overheat Protection: The vacuum is equipped with a thermal cutout that automatically switches off the unit if it overheats. Users are instructed to turn off the power, wait for 45 minutes, and then restart.

Maintenance Features:

Regular maintenance is crucial for the optimal performance and longevity of the TMA T120:

Dust Cup Emptying: The dust cup should be emptied when the dust level is parallel with the lower rim of the filter case to prevent weakened suction. The process involves opening the dust cup lid to dump dust.

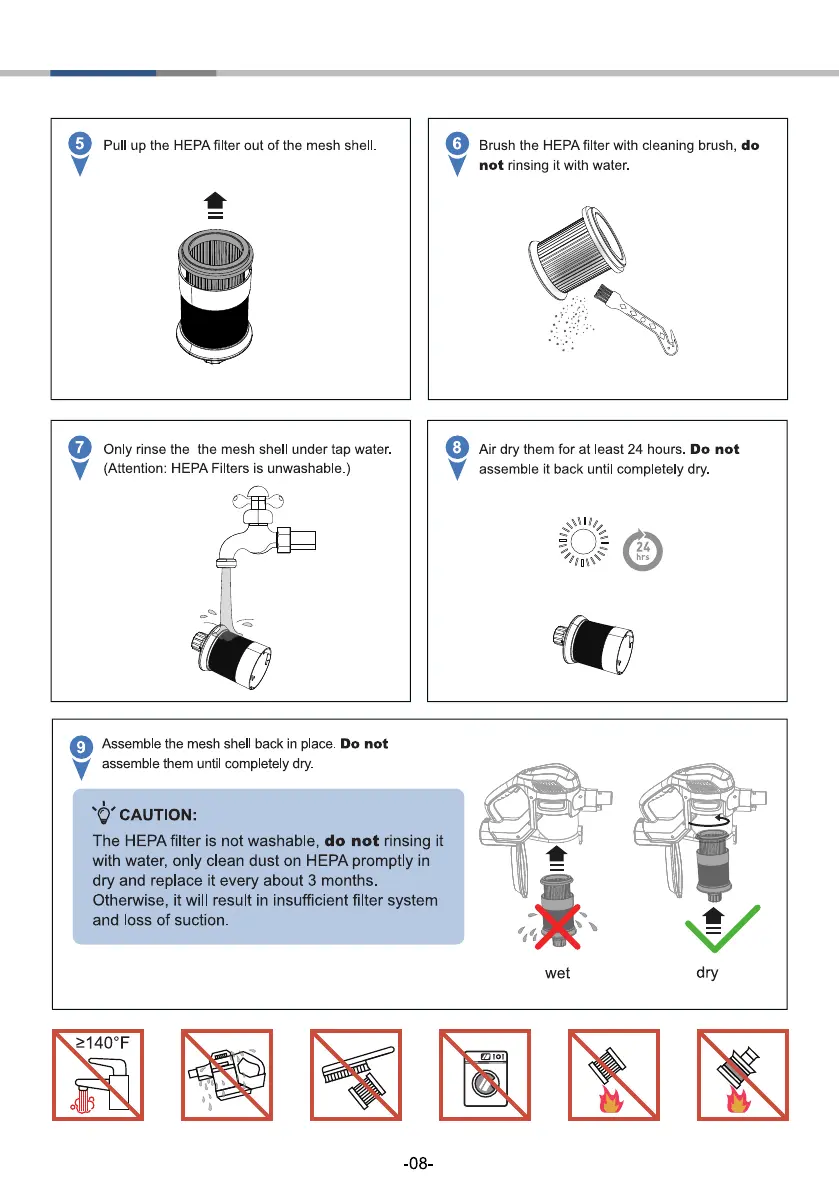

HEPA Filter Cleaning:
- The HEPA filter is not washable and should not be rinsed with water.
- It should be cleaned promptly by brushing off dust with the provided cleaning brush.
- The HEPA filter needs to be replaced approximately every 3 months. Failure to do so can lead to an insufficient filter system and loss of suction.
Mesh Shell Cleaning: The mesh shell, which houses the HEPA filter, can be rinsed under tap water. After rinsing, it must be air-dried for at least 24 hours and assembled back only when completely dry.
Floor Brush Cleaning:
- The roller brush of the motorized LED floor brush can accumulate hair and strings, which may cause it to stop spinning or the vacuum to shut off.
- Users should push the release switch to detach the roll and use the cleaning brush to remove entangled debris.
Clog Clearing: The manual provides instructions for clearing clogs in the dust cup, HEPA filter, extension tube, and floor brush, which can cause low suction or overheating.
Battery Care: The battery pack can be charged either while attached to the main vacuum body or separately. It is recommended to fully charge the machine before first use and after every use. The battery must be removed and disposed of safely when the appliance is scrapped.
Storage: The vacuum should be stored indoors and away from stoves and heat-emitting appliances to prevent deformation or discoloration of plastic parts. It should be stored on the wall hanger when not in use.
Safety Precautions: The manual emphasizes several safety instructions, including not immersing the power cord or plug in water, not vacuuming liquids or flammable substances, and ensuring the vacuum is switched off before performing maintenance.

Warranty Information:

The TMA T120 comes with a 1-year Limited Warranty, applicable to products purchased from TMA and authorized outlets. An extended warranty of 12+3 months can be activated by registering the product on the TMA website. The warranty covers defects due to faulty materials or workmanship under normal, non-commercial usage conditions. It does not cover accidental damage, faults from negligent use, misuse, unauthorized repairs, or reduction in battery runtime due to age or use. For warranty service, customers are advised to contact TMA customer service via email, providing model name/number, purchase date, order number, and a description of the problem.

TMA T120 - Page 11
