Injection Molding Machine Chapter 6
V3.0
6-12
4.4 Lubrication for die height adjustment gear
For machine of 750 tons and abovethere are three imbedded grease holes in each die
height adjustment gear; special extended grease nipple is needed for greasing the gear
mechanism. Fist screw in extended grease nipple into grease holes greasing as usual
take it off after finishing greasingotherwise die height adjustment mechanism will be
seriously damaged.

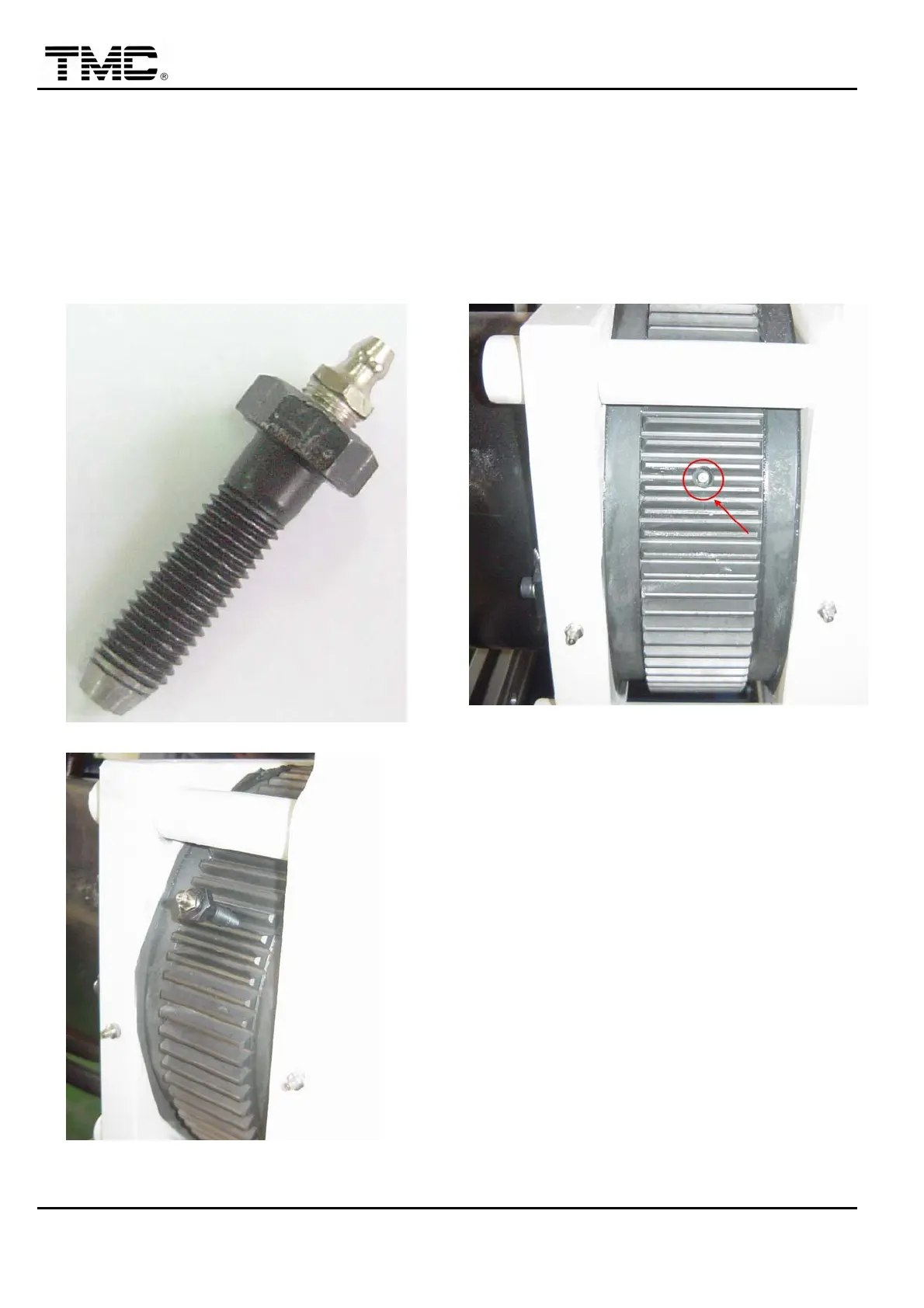

Extended grease nipple Grease hole for die height gear
Screw in extended grease nipple into
greasing hole
