1.9 AUXILIARY SEQUENCE

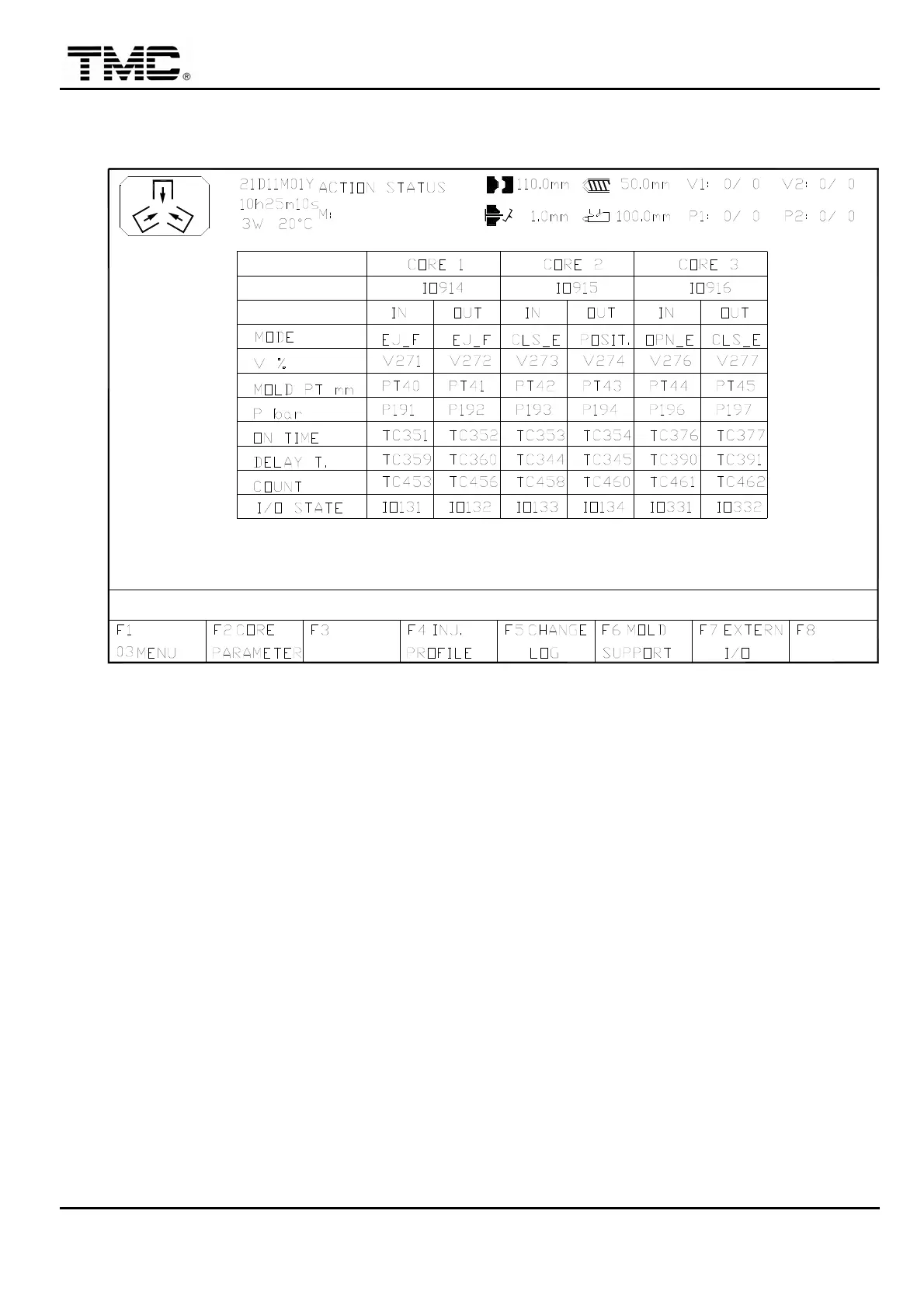

1.9.1 CORE
MODE: OPN_E :Start core movement when mold is at open-end
position.
CLS_E :Start core movement when mold is at close-end
position.
POSIT. :Start core movement when mold is at specified mold
position.
EJ_F :Start core movement when ejector is at forward end
position.
EJ_END :Start core movement when ejector cycle is finished.
AS_EJ :Core outputs is used as standard ejector.
