TMEC 200-1 - CLUTCH ADJUSTMENT PROCEDURE

I
l
I
I
I

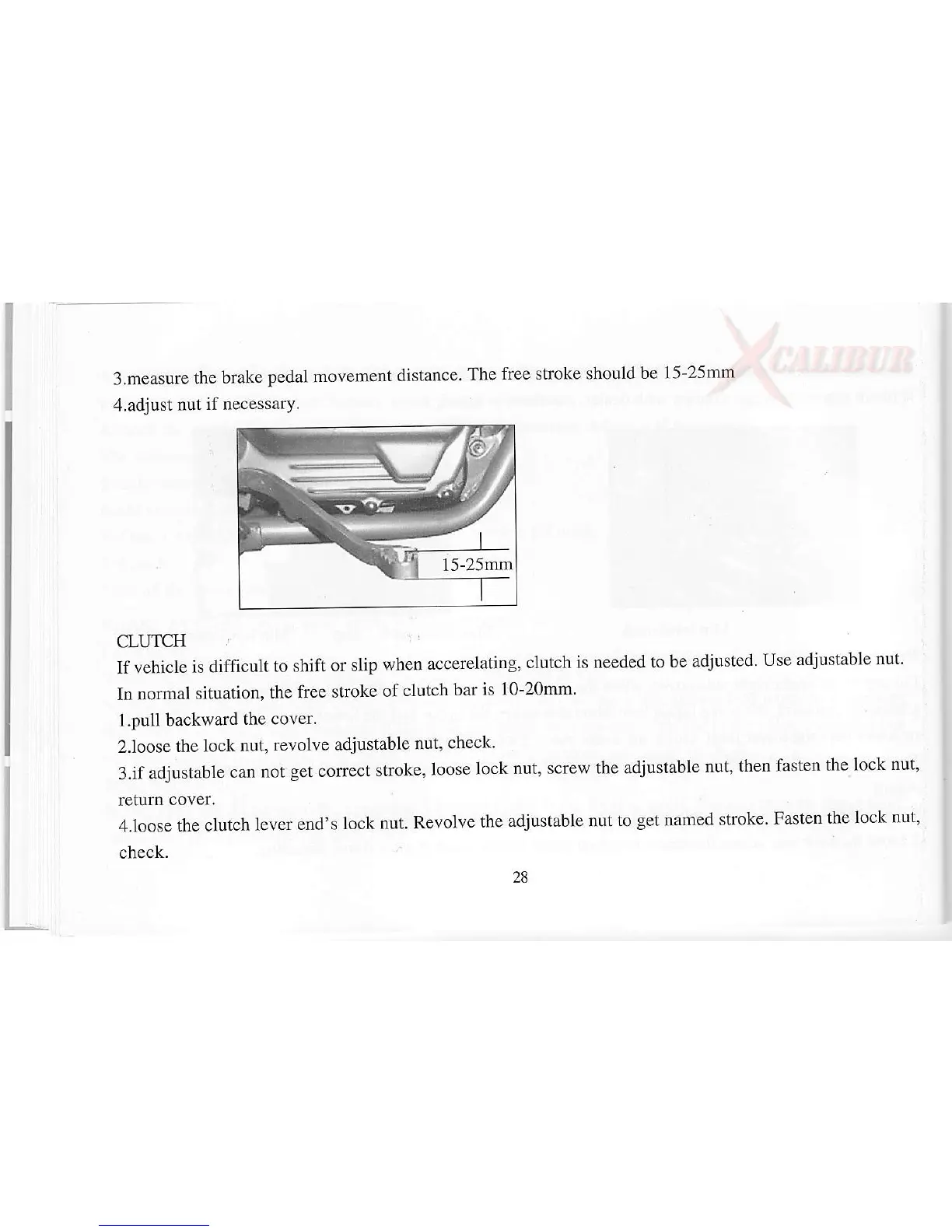

3.measure
the
brake
pedal
movement
distance.
The
free stroke should
be 15-25mm
4.adiust
nut
if necessary.
CLLITCH
If vehicle
is difficult
to shift
or slip
when
accerelating,
clutch
is needed to
be adjusted.
use
adjustable
nut'
In normal
situation,
the free
stroke
of
clutch
bar
is 10-20mm'
1.pull
backward
the cover.
2.loose
the lock
nut,
revolve
adjustable
nut,
check.
3.if adjustable
can
not
get conect
stroke,
loose
lock
nut, sclew
the adjustable
nut,
then fasten
the
lock
nut,
return
cover.
4.loose
the clutch
lever
end's
lock
nut. Revolve
the
adjustable nut
to
get
named
Stfoke.
Fasten
the
lock nut'
check.
