HANDLING PRECAUTIONS
The MP-1216's operating voltage is within 10% of your local power voltage (50/60 Hz).
Do not install the MP-1216 in locations which are subject to corrosive chemicals or salt water. Also, keep your
beverages away from the unit.
To avoid electric shocks, do not touch the unit's internal components. Always refer the servicing to your TOA
dealer.
FEATURES
The signal level meter allows simultaneous monitor of a maximum of 16 channels per unit.
Any of the high-impedance speaker line output, low-impedance speaker line output, and line level output can be
monitored by connecting it to the corresponding input.
One of the 16 channels can be monitored with an internal speaker or headphone.
By connecting two MP-1216 units, a maximum of 32 channels can be monitored.

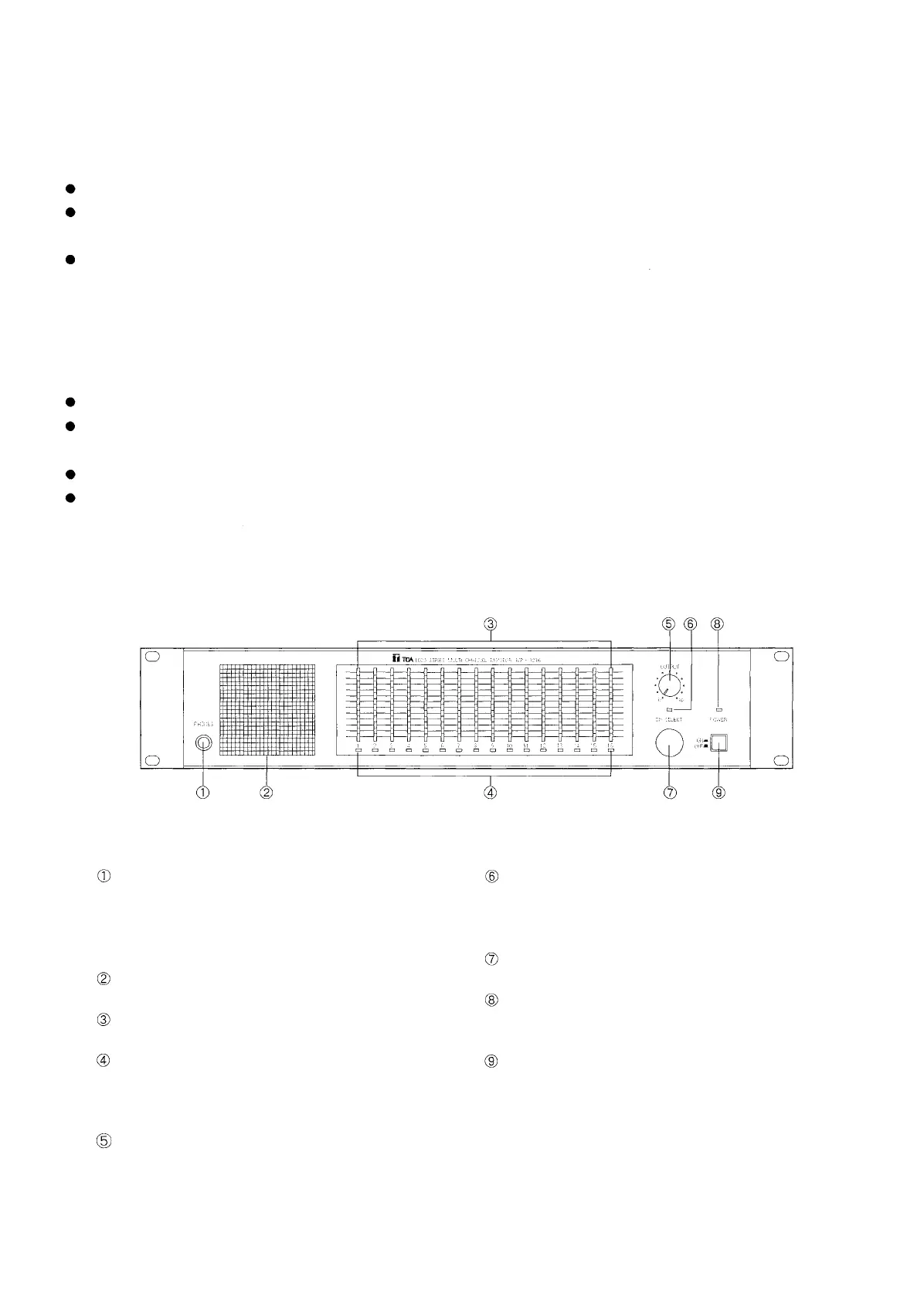

NOMENCLATURE [Front Panel]
Headphone Jack (PHONES)
Use this jack for headphone-monitoring of the
channel selected with the channel selection
switch. No sound is output from the speaker
while this jack is used.
Speaker
Outputs the sound of the selected channel.
Level Meter (1~16)
Indicates the signal level of each channel.
Channel Indicator (1~16)
Indicates the current channel being monitored.
The 16th channel's indicator lights whenever the
power is switched ON.
Volume Control (OUTPUT)
Adjusts the sound volume of the speaker or
headphone.
Channel Selection Switch Indicator
Lights when the channel selection switch is
enabled, and is extinguished when the linkage
setting switch is set to SLAVE position.
Channel Selection Switch (CH SELECT)
Selects the channel to monitor.
Power Indicator
Lights when the power switch is set to ON, and
is extinguished when the switch is set to OFF.
Power Switch (POWER)
Press this switch to turn power ON. To turn
power OFF, press the switch again.
