Toa DP-0206 Supplement Instruction Manual

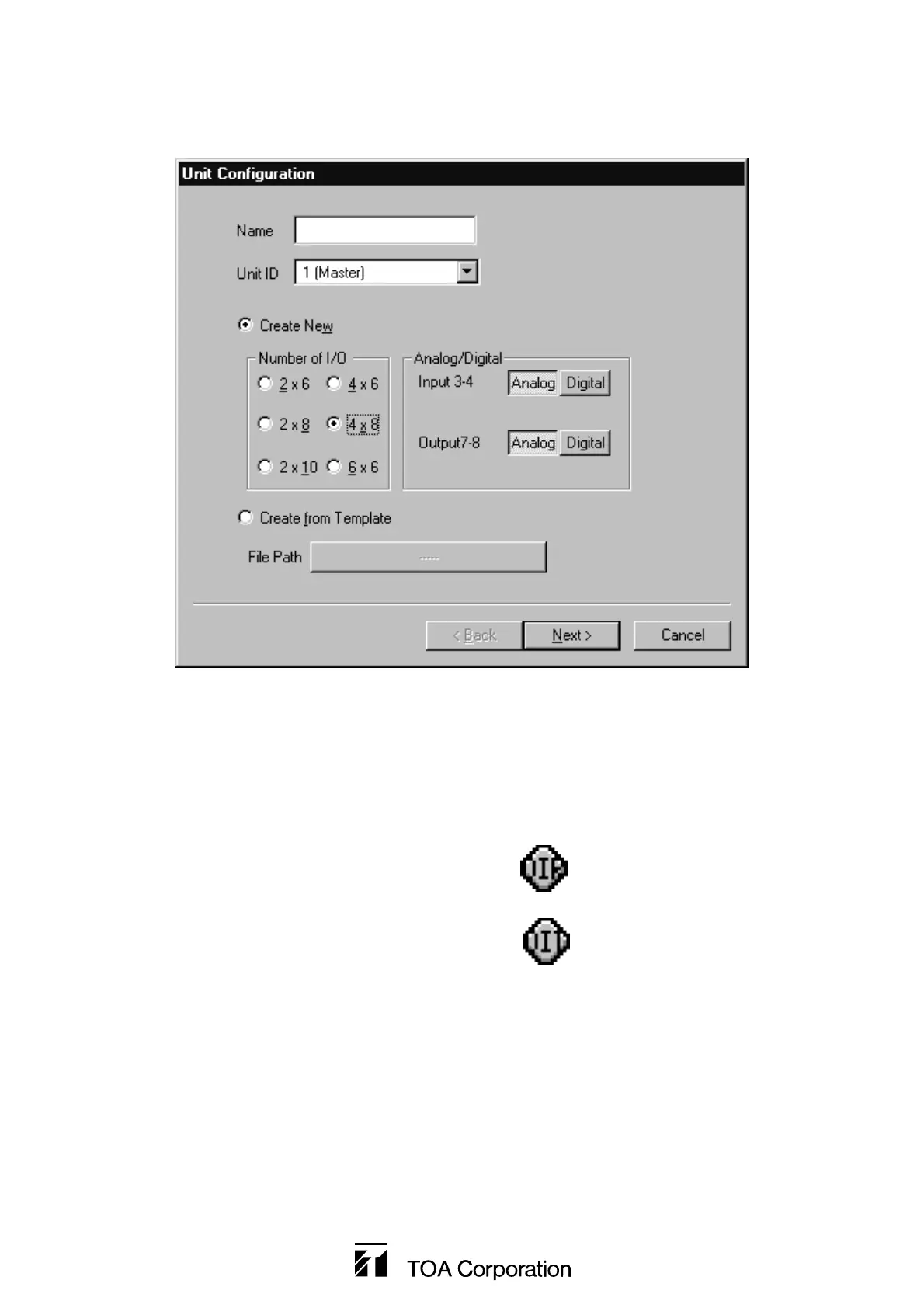

Creating a Unit (DP-0206 Software Instruction Manual, p. 13)
If the number of inputs and outputs are set for any other configuration than 2x6, the Analog/Digital Selection
column will be displayed on the right of the I/O No. column.
• When using the DQ-D01, click on the corresponding Input/Output [Digital] button.
• When using the DQ-A01 Analog Input module or DQ-A02 Analog Output Module, click on the [Analog]
button.
• Initial setting is for [Analog].
Signal Indicator (DP-0206 Software Instruction Manual, p. 22)
The following indicators will be displayed during digital input:
The following indicators will be displayed during digital output:
RED: Signal level exceeds –6 dB*.
GREEN: Signal level is greater than –72 dB* but less than –6 dB*.
GRAY: Signal level is less than –72 dB*.
* 0 dB = Digital full scale level
133-21-477-00
