Toa HY-PF1B - Page 2

HX-5 Series
HY-PF1B
SPEAKER RIGGING FRAME

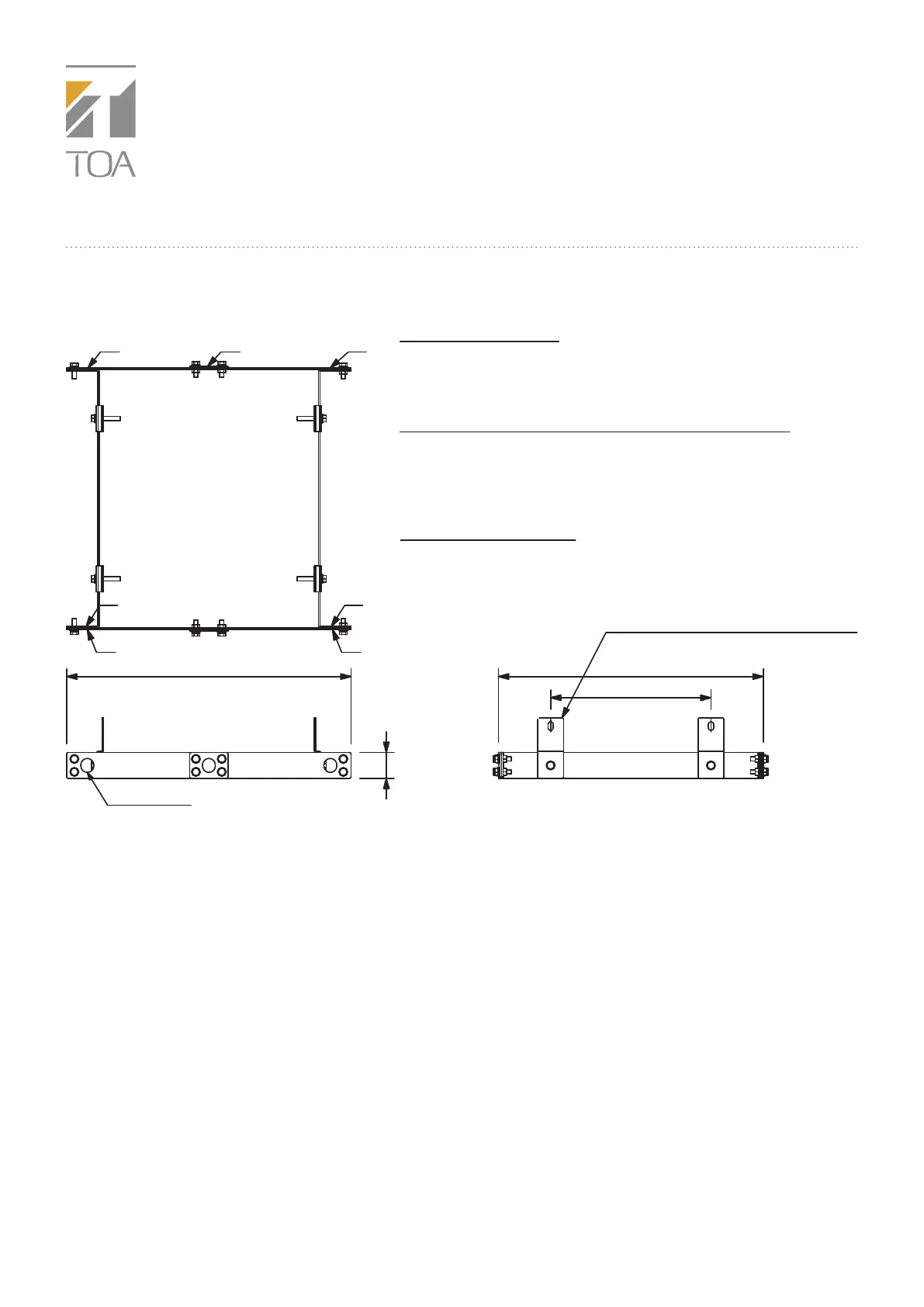

Appearance
550
50
512
310
Hanging the HX-5B
Holes A are used for hanging between the HY-PF1B
and the HX-5B, and also between the HY-PF1B and
the ceiling (3-point hanging).
Hanging the HX-5B with the FB-120B mounted
Holes A are used for hanging between the HY-PF1B
and the HX-5B (3-point hanging), and Holes B for
hanging between the HY-PF1B and the ceiling
(4-point hanging).
Hanging the FB-120B
Holes B are used for hanging between the HY-PF1B
and the ceiling (4-point hanging).
3-27

25
A
B
B A
A
B
B
Subwoofer mounting bracket
(accessory)
