Specifications are subject to change without notice.
Printed in Japan (0505) 833-52-331-80 U
TOA Corporation
URL : http://www.toa.jp/
SR-S4L SR-S4LWP SR-S4S SR-S4SWP
Enclosure Bass-reflex type Sealed type Bass-reflex type Sealed type
Power Handling Capacity Continuous program: 600W
Rated Impedance 8Ω
Sensitivity 94dB (1W, 1m) 93dB (1W, 1m)
Frequency Response 70 – 20,000Hz (when using DP-0206 option)
Crossover Frequency 3,500Hz
Directivity Angle Horizontal: 90° Horizontal: 90°
Vertical: 0° (within the range of speaker height) Vertical: 10°
Speaker Component Low frequency: 10cm cone-type × 8
High frequency: 2.5cm balanced dome-type × 24
Input Connector M5 screw terminal, distance M5 screw terminal, distance
between barriers: 12.2mm and
—
between barriers: 12.2mm and
—
Neutrik NL4MP x 2 (usable cable Neutrik NL4MP x 2 (usable cable
connector: Neutrik NL4FC) connector: Neutrik NL4FC)
Connected Cable Direct cable withdrawal from Direct cable withdrawal from
—
internal speaker: ø8.6mm,
—
internal speaker: ø8.6mm,
conductor cross section: 1.25mm
2
, conductor cross section: 1.25mm
2
,
4-core cable, 3m 4-core cable, 3m
Water Protection — IPX4 — IPX4
Operating Temperature — –10°C to+50°C—–10°C to+50°C
Finish Enclosure: MDF, white, paint Plywood, white, urethane coating MDF, white, paint Plywood, white, urethane coating
Front grille: Punched steel plate, Punched stainless steel (SUS304), Punched steel plate, Punched stainless steel (SUS304),
white, acrylic paint white, paint white, acrylic paint white, paint
Dimensions 160 (W) × 895 (H) × 255 (D)mm 160 (W) × 895 (H) × 255 (D)mm 160 (W) × 892 (H) × 303 (D)mm 160 (W) × 892 (H) × 303 (D)mm
(excluding connected cable) (excluding connected cable)
Weight 16kg
Accessory Bi-amplifier drive rating label × 1, Bi-amplifier drive input indication label × 1
Option
Matching transformer: MT-S0601, Extension plate: SR-EP4, Matching transformer: MT-S0601, Matching transformer: MT-S0601, Extension plate: SR-EP4,
Matching transformer: MT-S0601,
Flying bracket: SR-FB4, Wall mounting bracket: SR-WB4, Extension plate: SR-EP4WP, Wall tilt bracket: SR-TB4WP, Flying bracket: SR-FB4, Wall tilt bracket: SR-TB4, Extension plate: SR-EP4WP, Wall tilt bracket: SR-TB4WP,
Wall tilt bracket: SR-TB4, Stand adapter: SR-SA4, Wall mounting bracket: SR-WB4WP, Stand adapter: SR-SA4, Protection pad: SR-PP4, Protection pad: SR-PP4, Digital processor: DP-0206
Protection pad: SR-PP4, Floor stand: SR-FS4, Protection pad: SR-PP4, Digital processor: DP-0206 Digital processor: DP-0206
Digital processor: DP-0206
SR-S4L/SR-S4LWP SR-S4S/SR-S4SWP

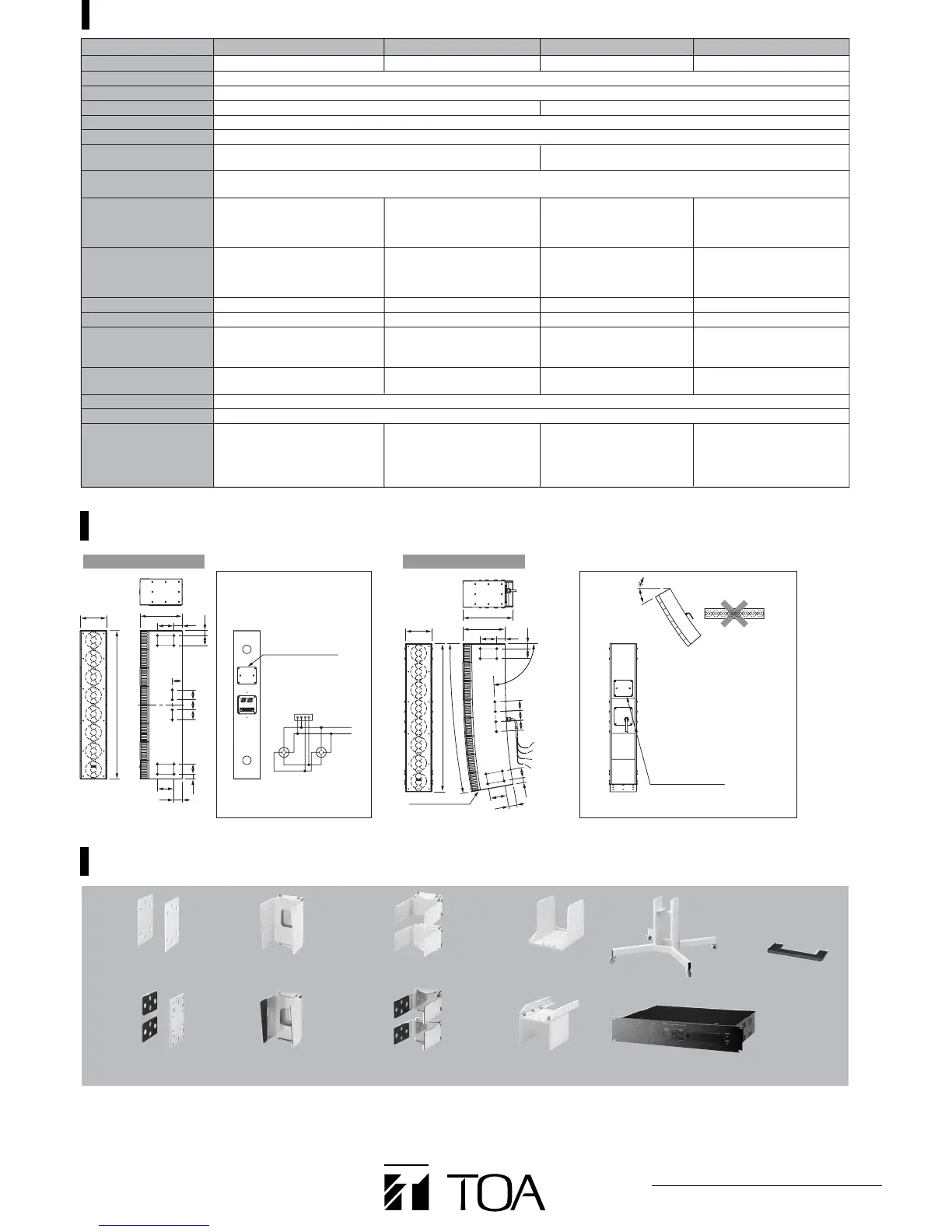

APPEARANCE AND DIMENSIONAL DIAGRAM
OPTIONS
SR-TB4
Wall Tilt Bracket
for indoor use
SR-TB4WP
Wall Tilt Bracket
for outdoor use
SR-WB4
Wall Mounting Bracket
for indoor use
SR-FB4
Flying Bracket
SR-PP4
Protection Pad
SR-SA4
Stand Adapter
SR-WB4WP
Wall Mounting Bracket
for outdoor use
SR-EP4
Extension Plate
for indoor use
SR-EP4WP
Extension Plate
for outdoor use
SR-FS4
Floor Stand
DP-0206
Digital Processor
SR-S4LWP/SR-S4SWP (Rear)
SR-S4L/SR-S4S (Rear)
SPECIFICATIONS
160
255
100 50
30
30
60
6060 60 60
60
895
Matching transformer
mounting panel
(option)
Screw terminal 4P
2–
NL4MP NL4MP
1–
2+
1+
2–
1–
2+
1+
(+)
(–)
Wiring Diagram
Illustration of SR-S4L Illustration of SR-S4SWP
100
50
160
Air hole (internal)
60
60
60
10˚
892
Matching transformer
mounting panel
(option)
255
303
100 50
3060
87˚
30
60
100
50
Green (+)
Horizontal
Black (–)
Red (N.C)
White (N.C)
Note:
1. Install the speaker with its air hole down, as
indicated by the Up mark on the speaker.
2. It features the water protection construction
(IPX4), however it is recommended that it be
installed under roofs, eaves, or other locations
not directly exposed to rain or snow.
3. For outdoor permanent installation, the
installation angle of the SR-S4LWP must be
between 0˚ horizontal and 45˚
(SR-S4SWP: 30°)
downward as shown at the above.
Do not install the speaker horizontally.
4. When permanently installing the speaker
outdoors, inspect it periodically.
A: SR-S4LWP = 45°
SR-S4SWP = 30°
A
