TOHATSU MFS 2 Service Manual

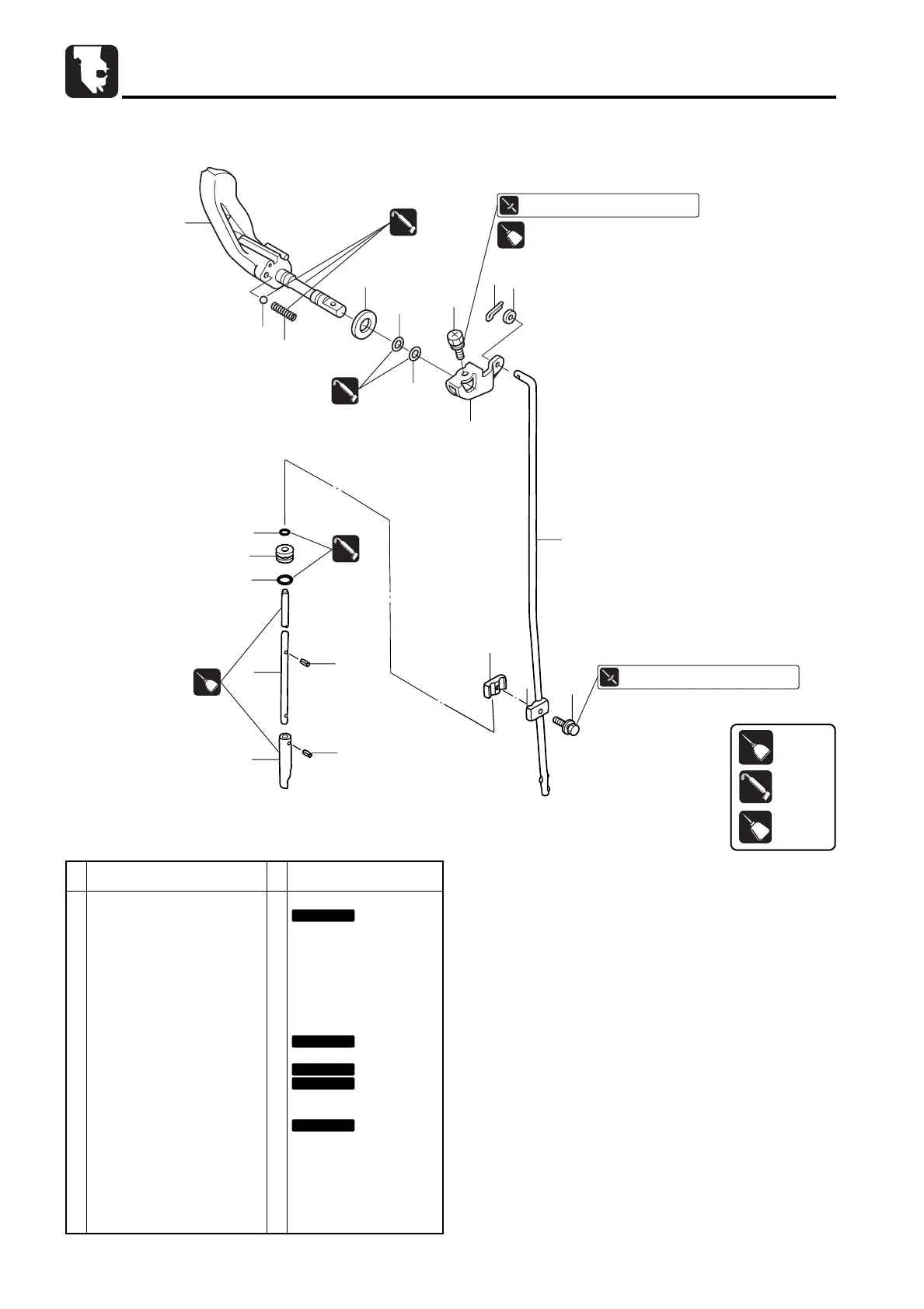

1 Shift Lever 1
2 O-Ring, 1.9-6.8 2
3 Ceramic Ball, 7.7 1
4 Shift Lever Stopper Spring 1
5 Washer, 10.5-18-1.5 1
6 Shift Rod Lever 1
7 Bolt 1 M6 L=12mm
8 Clutch Cam 1
9 Cam Rod "S" 1 for "S"
Cam Rod "L" 1 for "L"
10 Spring Pin, 3-8 2
11 Cam Rod Bushing 1
12 O-Ring, 2.5-4.9 1
13 O-Ring, 2.4-9.5 1
14 Shift Rod 1
15 Washer 1
16 Split Pin, 2-12 1
17 Shift Rod Joint
1set
18 Bolt 1 M6 L=16mm
Ref.
No.
Description Remarks
Q'ty
6-6
Lower Unit
4st 2/2.5/3.5 2007
12
2
2
6
7
16
15
5
4
3
1
13
9
10
10
17
17
18
14
8
11
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
OIL
GEARGEAR
GEAR
6 N·m (4 lb·ft) [0.6 kgf·m]
4 N·m (3 lb·ft) [0.4 kgf·m]
TB
13421342
1342
Shift
P/L Fig. 12
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
OIL
GEARGEAR
GEAR
TB
13421342
1342
GREASE
OBMOBM
OBM
MFS2sec06070524.qxd07.5.243:20 PM  ページ6
