WARNING
Before removing or installing propeller, be
sure to disconnect spark plug cap and
remove stop switch lock plate.

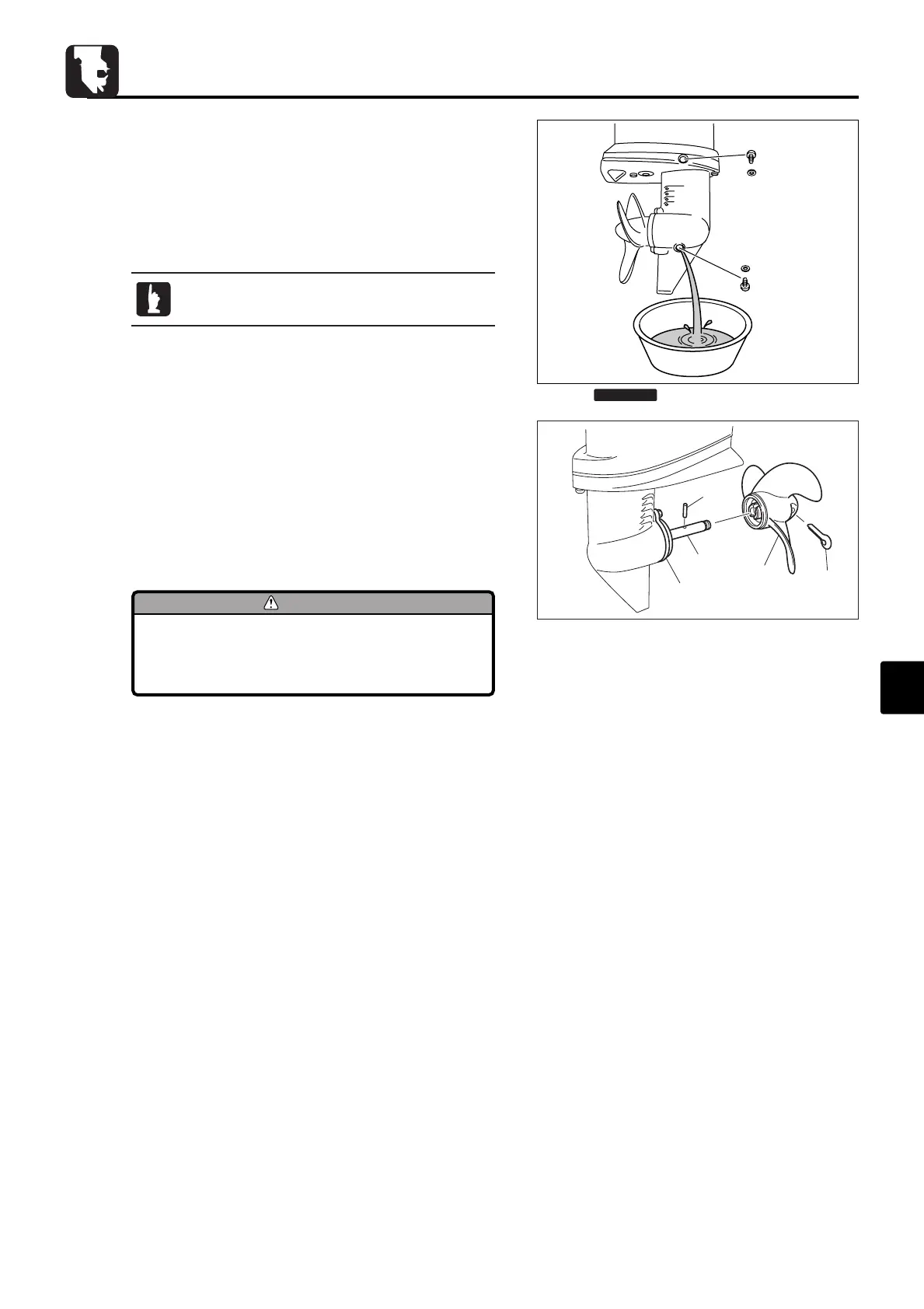

3. Inspection Item
1) Draining Gear Oil
1. Set outboard motor vertical.
2. Remove oil plugs
2 and then 1 to drain gear oil. Refer to
"Replacement of Gear Oil" in Chapter 3.
2) Removing Propeller
1. Shift gear into neutral (N).
2. Remove lock plate (of stop switch lanyard) from stop switch.
3. Straighten and pull out split pin 1, and then, remove shear
pin 3 and propeller 2.
1 Split Pin
2 Propeller
3 Shear Pin
4 Propeller Shaft
5 Propeller Shaft Housing
3 Gasket
1
2
3
4
5
Remove lower oil plug 1 first.
Do not reuse.
