TOHATSU MFS 2 Service Manual

6-10
Lower Unit
4st 2/2.5/3.5 2007

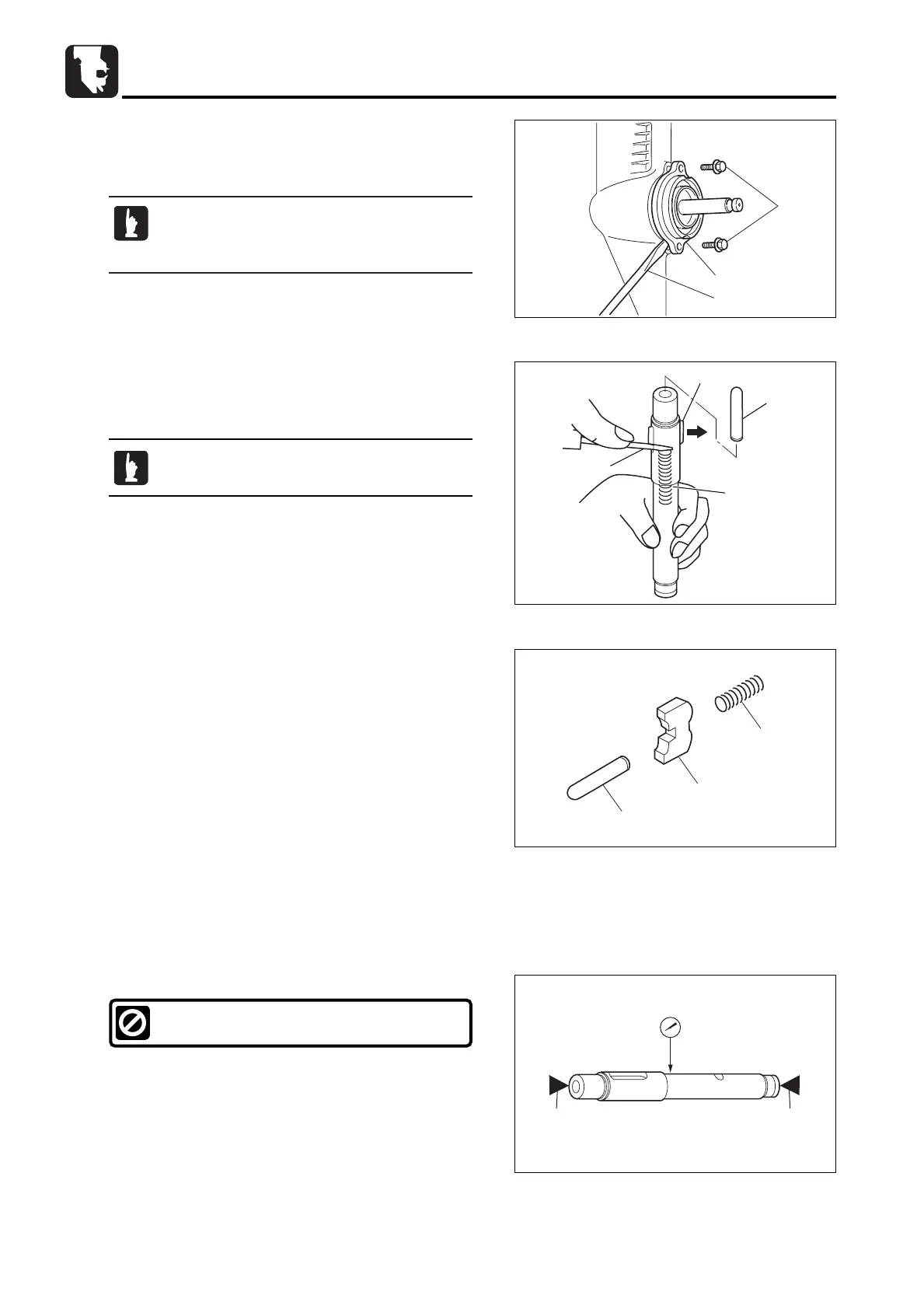

6) Removing Propeller Shaft Housing
Ass'y
1. Remove bolt 1 and pull out propeller shaft housing ass'y 2.
3
2
1
2. Remove propeller shaft ass'y.
7) Disassembly of Propeller Shaft Ass'y
1. Remove clutch push rod 1 and then clutch 2 and clutch
spring 4.
2
1
4
3
When removing clutch, push down clutch spring
by using bladed screw driver 3 with thin tip.
8) Inspection of Propeller Shaft
1. Check propeller shaft for bend and wear. Replace if
necessary.
2. Measure propeller shaft runout.
a
a
2. Check clutch 2, clutch push rod 1, and clutch spring 4 for
cracks and wear. Replace if necessary.
4
2
1
Propeller Shaft Runout Limit :
0.05 mm (0.0020 in)
When the ass'y is pulled off a little, put bladed
screw driver 3 in the mating surface of lower
gear case to separate it from the case.
