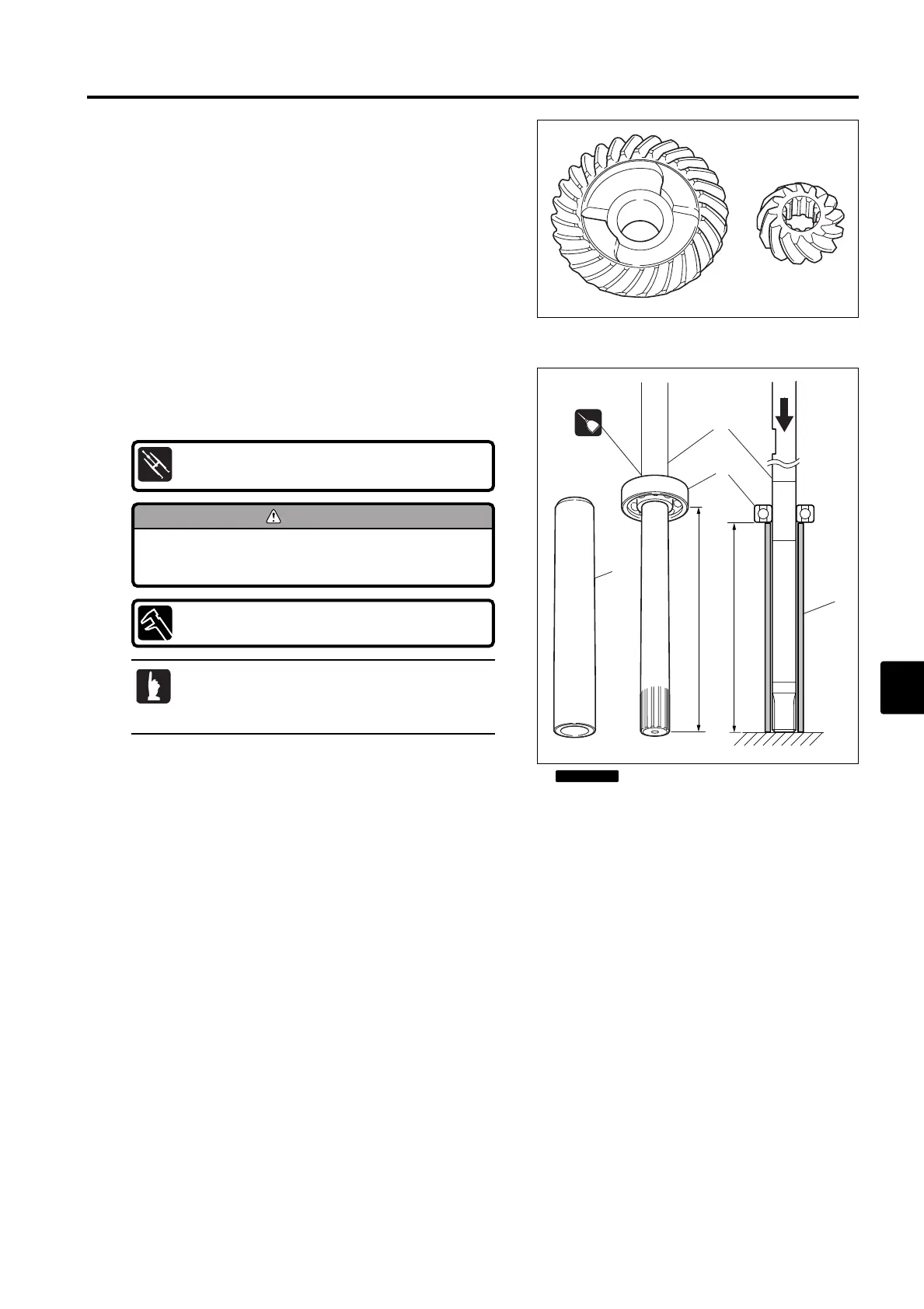

23) Inspection of Forward Gear and
Pinion Gear (A and B Gears)
1. Check teeth and jaw of forward (A) gear and pinion (B) gear
and jaw of clutch for cracks and wear. Replace if necessary.
1
2
3
3
a
a
OIL
GEARGEAR
GEAR
24) Assembly of Drive Shaft
1. Use a press device to install new drive shaft bearing 1 to
drive shaft 2 with the numbered side up.
Bearing Install Tool 2 3 :
P/N. 3AB-99900-0
Do not reuse bearing. Be sure to replace
with new one.
CAUTION
Installation Depth a :
92.00 mm±0.15 mm (3.6220 in±0.0006 in)
If a special tool is not available and thus the
above depth cannot be maintained, order shaft
ass'y and gear case ass'y.
①
Do not reuse.
