TOHATSU MFS 2 Service Manual

6
6-17
4st 2/2.5/3.5 2007
4
5
2
3
1
5
3
1
a
OIL
GEARGEAR
GEAR

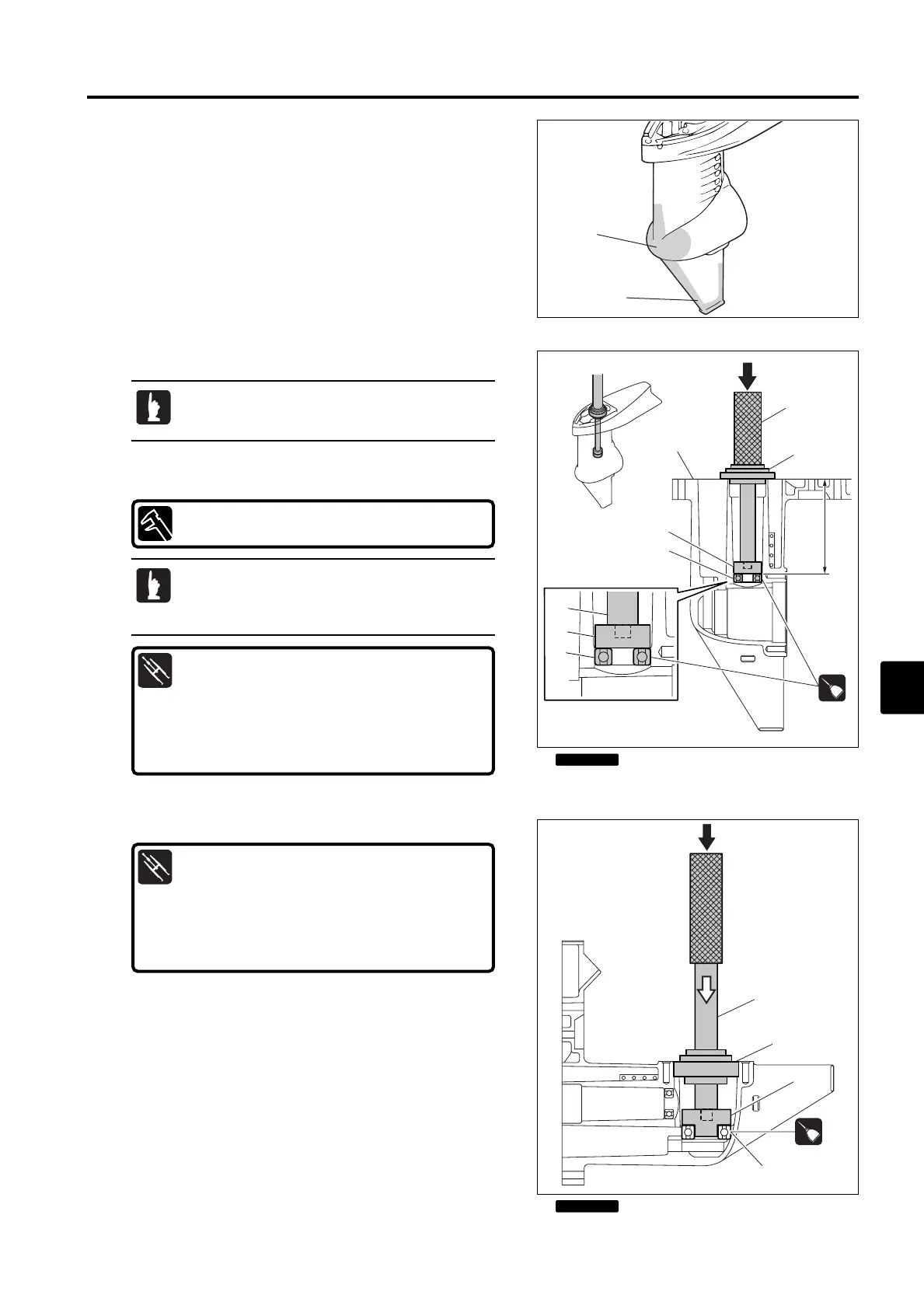

27) Assembly of Gear Case
Bearing Attachment 3 3 :
P/N. 3AB-99905-0
Center Plate 3 4 :
P/N. 3AB-99701-0
Driver Rod 3 5 :
P/N. 3AB-99702-0
Bearing Attachment 4 7 :
P/N. 3BV-99905-0
Center Plate 3 8 :
P/N. 3AB-99701-0
Driver Rod 3 9 :
P/N. 3AB-99702-0
Installation Depth a :
88.10 mm±0.05 mm (3.4685 in±0.0020 in)
· If a special tool is not available and thus the
above depth cannot be maintained, order shaft
ass'y and gear case ass'y.
2. Install new bearing 6 with numbered side up.
9
8
7
6
OIL
GEARGEAR
GEAR
Do not reuse removed bearing.
26) Inspection of Gear Case
1. Check skeg area a and torpedo-like front area b for cracks
and damage. Replace if necessary.
b
a
6
Do not reuse.
1. Install bearing 1 with numbered side up to gear case 2 to
specified depth.
1
Do not reuse.
MFS2sec06070524.qxd07.5.243:20 PM  ページ17
