TOHATSU MFS 2 Service Manual

6-20
Lower Unit
4st 2/2.5/3.5 2007
8
0
e
f
9
TB
13421342
1342
GREASE
OBMOBM
OBM
4st OIL
4st
OIL

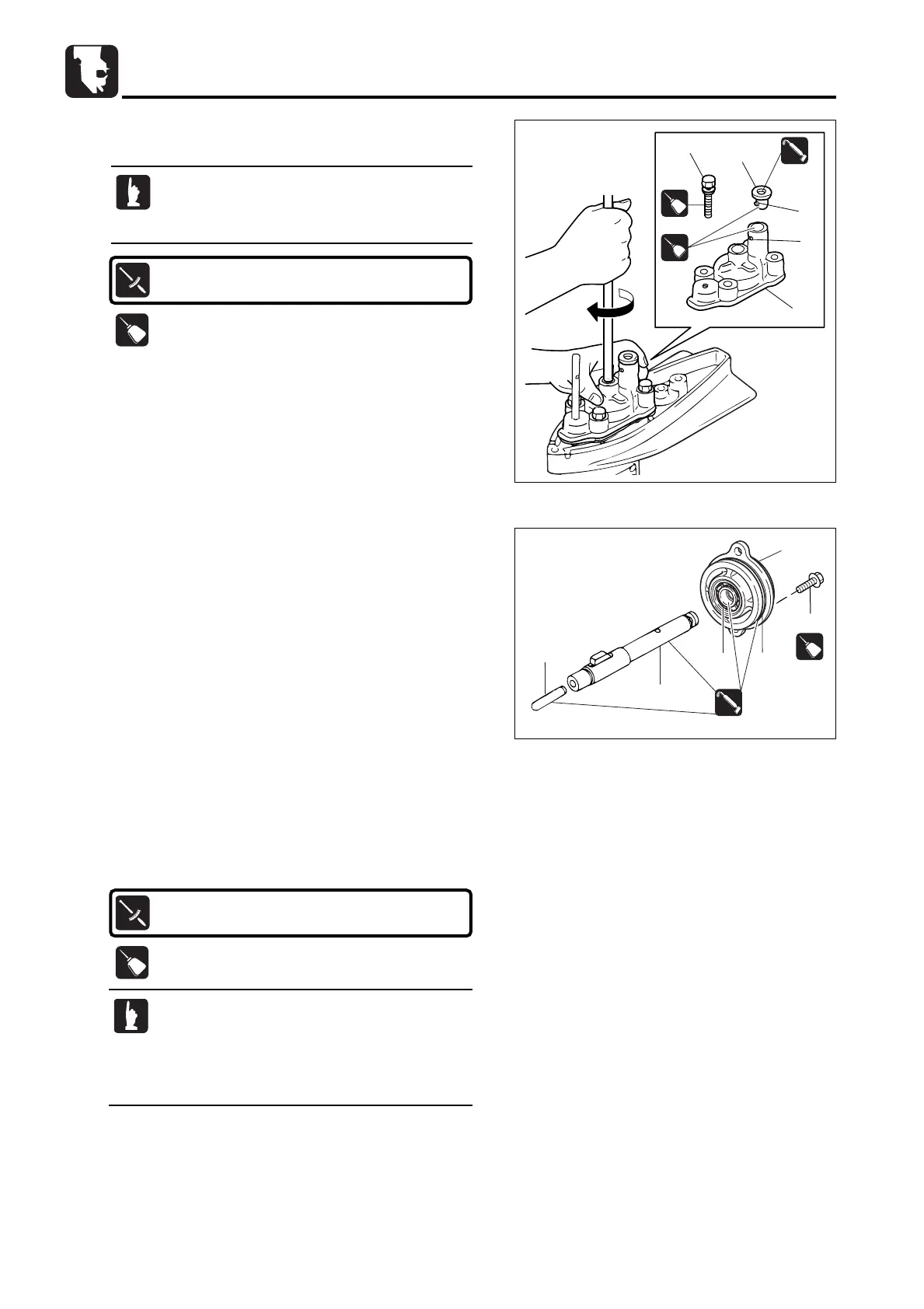

5. Install pump case (upper) ass'y 8 on the gear case, and
tighten bolts 0 in two or three steps to specified torque.
6. Bring grommet 0 projection e to hole f, and install it to
pump case (upper) ass'y 8.
Apply grease to interior of pump case liner, and
install pump case (upper) by pushing it down
with hand while turning drive shaft clockwise.
Pump Case (Upper) Bolts 9 :
6 N · m (4 lb · ft) [0.6 kgf · m]
32) Installation of Propeller Shaft
Housing
1. Check that OBM grease is applied to housing ass'y 1 oil
seal 2.
2. Install propeller shaft ass'y 3 to propeller shaft housing
ass'y 1.
3. Apply grease to new O-ring 4 and install it.
4. Apply grease to clutch push rod 5 and install it to propeller
shaft ass'y 3.
5. Attach propeller shaft housing ass'y 4 to gear case, and
tighten bolts 7 to specified torque.
TB
13421342
1342
4
1
3
5
2
7
GREASE
OBMOBM
OBM
Propeller Shaft Housing Bolts 7 :
6 N · m (4 lb · ft) [0.6 kgf · m]
· Apply grease to clutch push rod to prevent it
from dropping when attaching.
· When installing housing ass'y to gear case,
tighten upper and lower bolts in 2 or 3 steps
evenly to specified torque.
TB
13421342
1342
TB
13421342
1342
MFS2sec06070524.qxd07.5.243:20 PM  ページ20
