TOHATSU MFS 2 Service Manual

2-4
Service Data
4st 2/2.5/3.5 2007
1
3
4
5
6
7
8
9
0
q
w
2
1Thermostat
2Cylinder (with cylinder head)
3Crankcase
4Flushing Plug
5Cooling Water Check Port
6Water Feed Passage in Drive Shaft Housing
7Water Discharging Passage in Drive Shaft Housing
8Drive Shaft Housing
9Water Pipe
0Water Pump
qExhaust Gas and Discharged Water
wCooling Water Intake
Thermostat1
Cylinder
(with cylinder head)2
Water Pump0
Water Pipe9
Cooling Water
Intakew
Exhaust Gas and
Discharged Waterq
Drive Shaft
Housing8
6
Water Feed
Passage in Drive
Shaft Housing
7
Water Discharging
Passage in
Drive Shaft Housing
Cooling Water
Check Port5

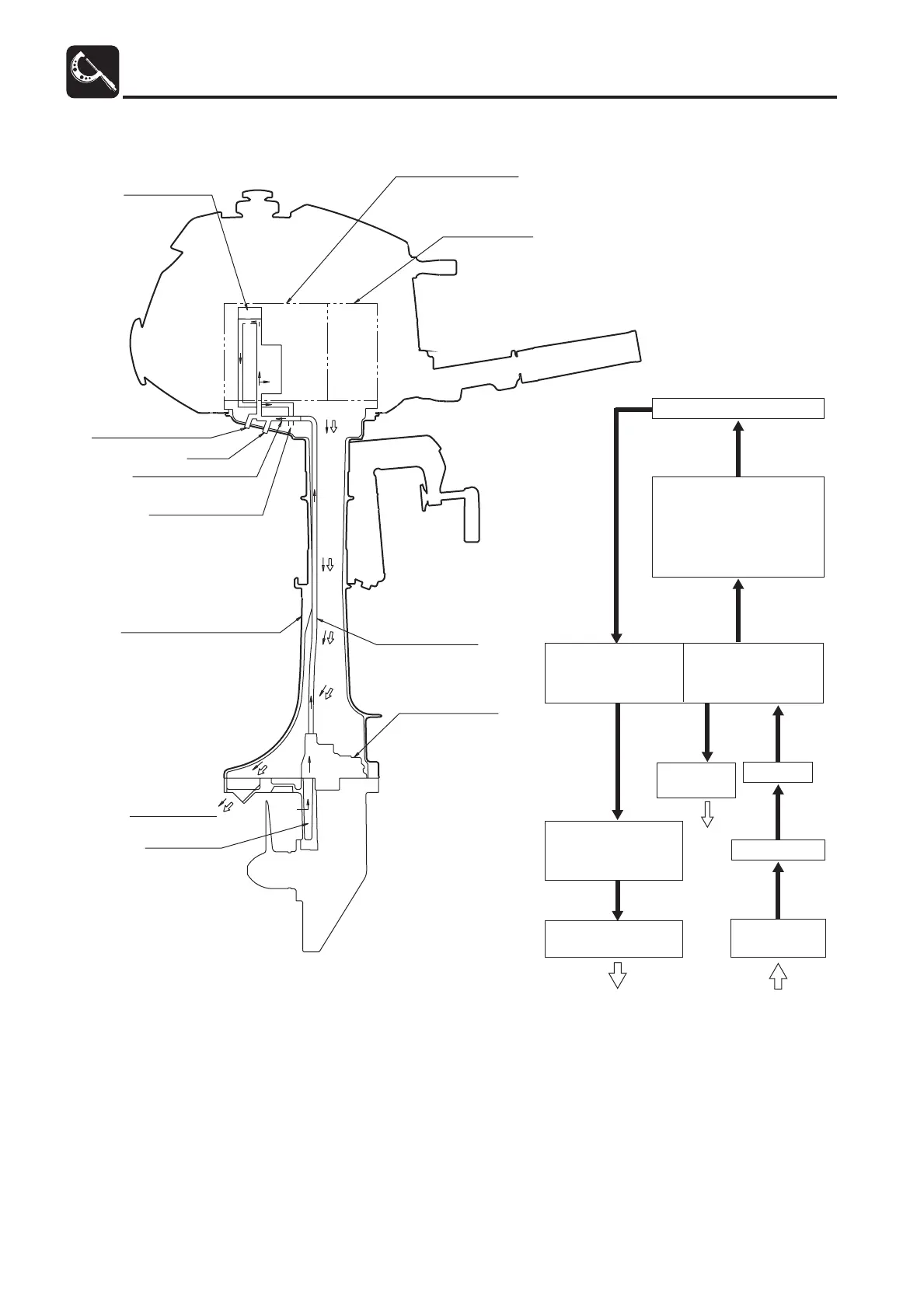

2.Cooling Water System Diagram
