6
6-21
4st 9.9/15/20 2008

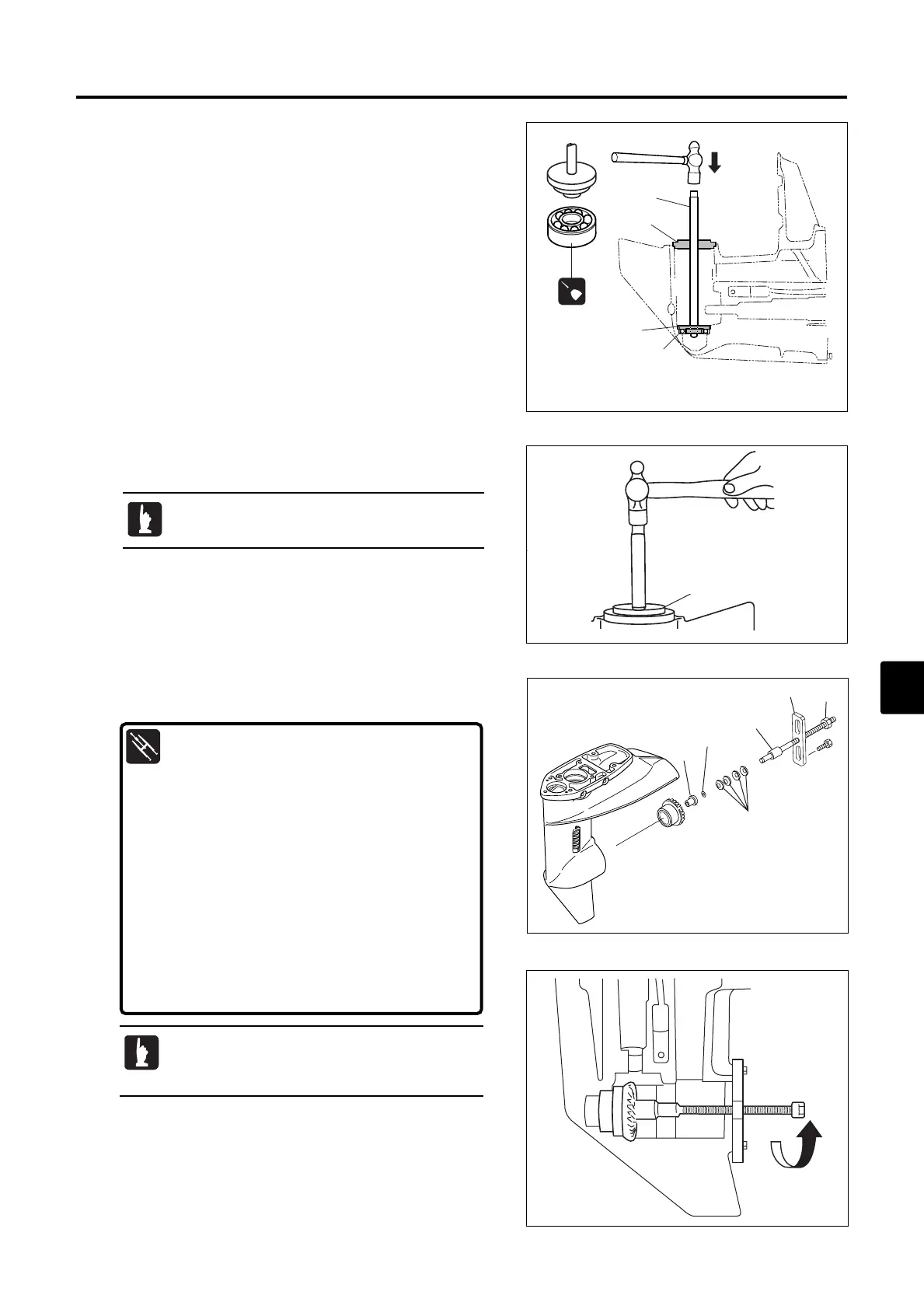

2. Fix gear case on the vice with its propeller shaft opening
facing upward.
3. Clean outer race installation face in the gear case and apply
gear oil.
4. Apply gear oil to external face of outer race, and put the
outer race in the center of the housing with the marked face
of the race facing in the housing.
The hammering sound changes when the ball
bearing is set in the housing properly.
5. Tap the end of the rod with a hammer to press-fit the ball
bearing 4 in the housing securely.
6. Check that ball bearing is press-fit in the housing surely, and
then press-fit gear A by using the following tools.
Fixing gear case on the vice with its propeller
shaft opening facing upward makes the work
easier.
Backlash Measuring Tool Kit :
P/N. 3C8-72234-1
Backlash Measuring Tool Shaft 5 :
P/N. 345-72723-0
Backlash Measuring Tool Plate 6 :
P/N. 3A3-72724-0
Nut M12P1.5 7 :
P/N. 930191-1000
Measuring Tool Set Piece 8：
P/N. 3BJ-72245-0
O-Ring 9：
P/N. 332-60002-0
Cone Disk Spring 0：
P/N. 3B7-72734-0
E_MFS20C_ch06_081216.qxd 09.1.20 5:27 PM ページ 21
To Next Page
