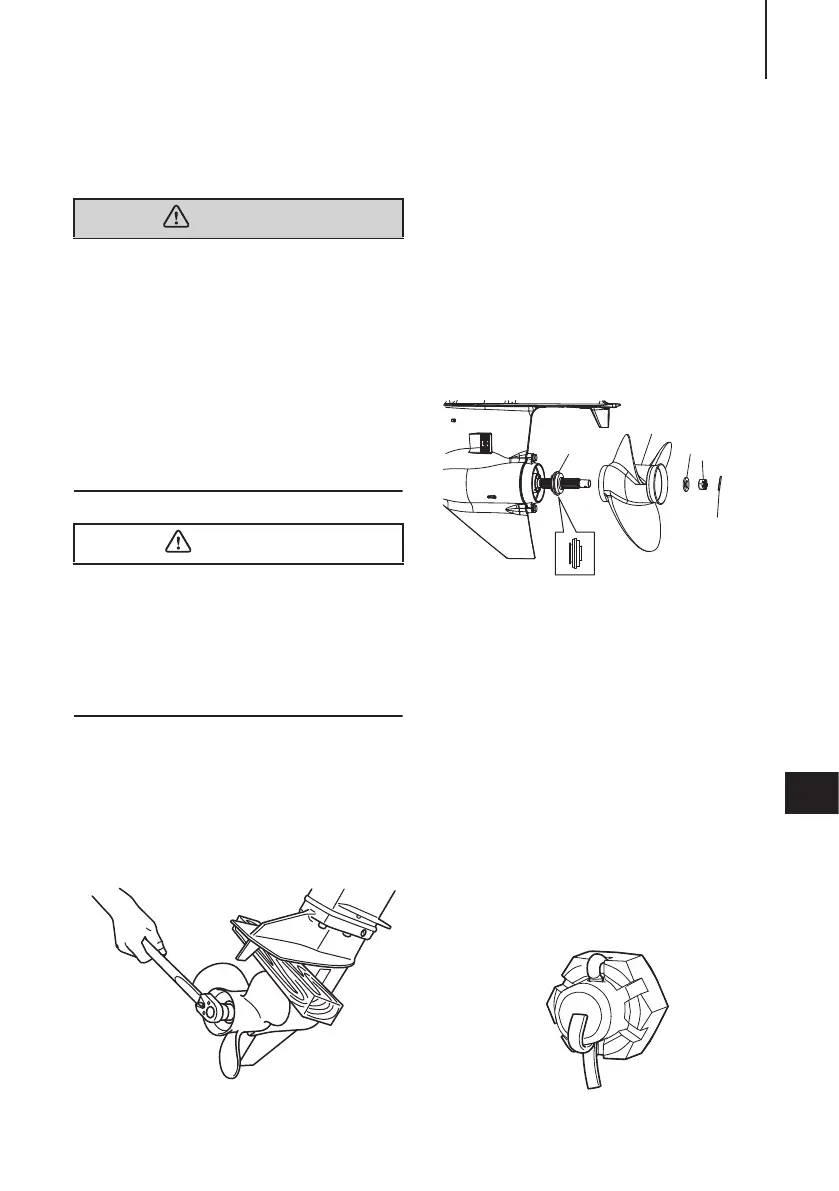

Propeller replacement
ENOW00084-1
z Do not install or remove propeller on the
outboard motor with spark plug caps
attached, shift in forward or reverse,
main switch at other than “OFF”, engine
stop switch lock attached to the switch,
and starter key attached, or engine could
accidentally start leading to serious per-
sonal injury. Disconnecting battery cable
is recommended (if equipped).
z The propeller edge is thin and sharp. Wear
the gloves while installing or removing to
protect your hands.
ENOW00086-1
z Do not install propeller without thrust
holder, or propeller boss could be dam-
aged.
z Do not reuse split pin.
z After installing split pin, spread bend both
end of the pin apart to lock propeller in
place.
A worn-out or bent propeller will lower
the motor's performance, and cause
engine trouble.
1. Put a piece of wood block between
propeller blade and anti-ventilation
plate to hold propeller.
2. Remove the split pin, propeller nut
and washer.
3. Remove the propeller and thrust
holder.
4. Apply waterproof grease to the pro-
peller shaft before installing a new
propeller.
5. Install the thrust holder, propeller,
stopper, washer and propeller nut
onto the shaft.
1. Propeller
2. Thrust holder
3. Washer
4. Propeller nut
5. Split pin
6. Tighten the propeller nut to specified
torque and align one of the grooves
with propeller shaft hole.
Propeller nut torque:
25 N·m

(18 ft·lb, 2.5kgf·m)
7. Install a new split pin into the nut hole
and bend both ends of pin apart to
lock propeller in place.
WARNING
CAUTION
ENOF00084-B
1
2
3
5
4
ENOF00084-C
ENOF00084-E
