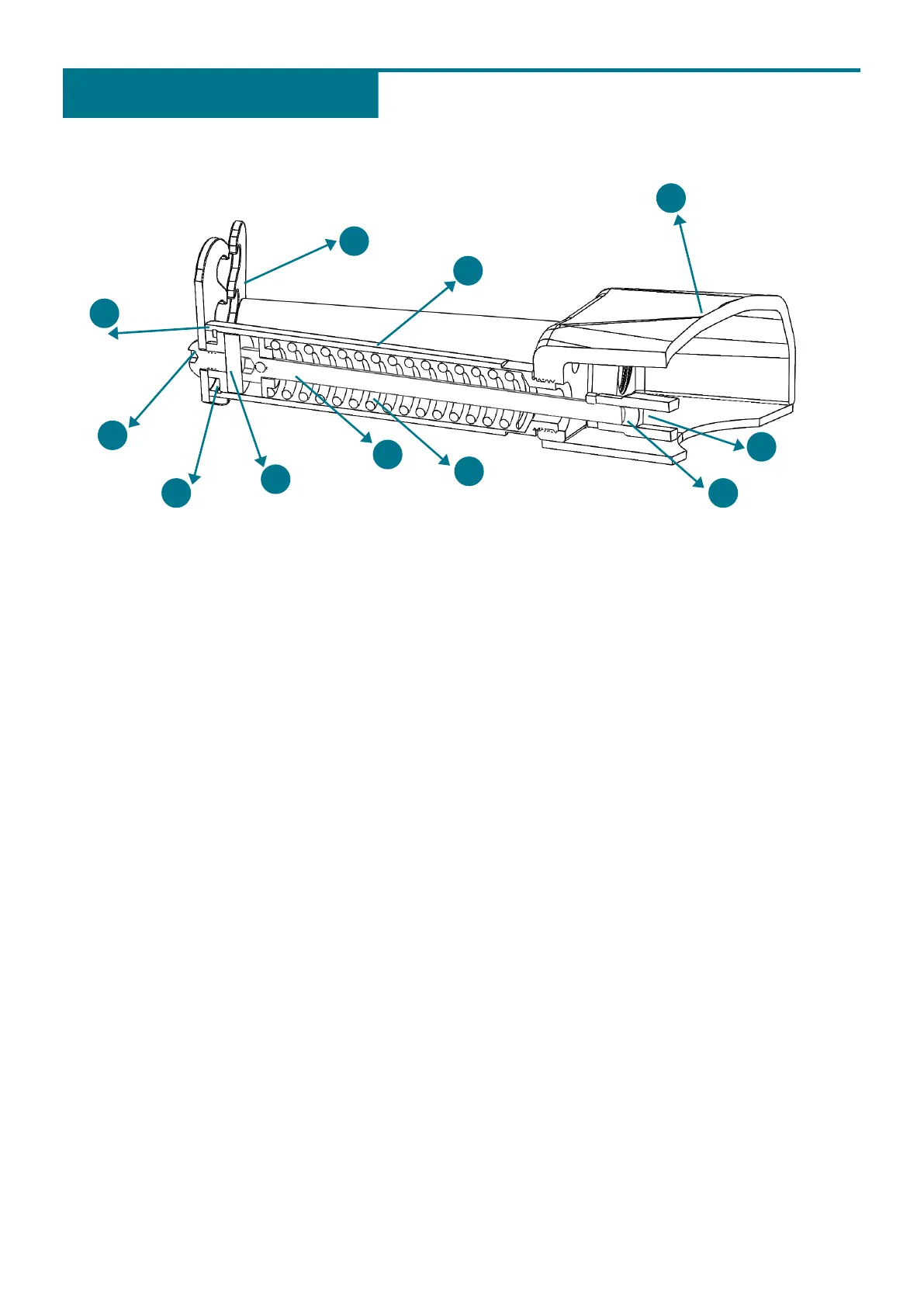

Checking or replacing springs.
1.Remove the spring cylinder lockplate screws (10) and the lockplate itself (1).
2.Remove the circlips (11) retaining the lockplate nut (9)
3.Now use the lockplate screw (10) to draw out the lockplate nut (9) to expose the
rubber buffer ring. (8)
4.Use a screwdriver etc, to remove the buffer ring. (8)
5.Measure the distance between the head of the cap screw (7) that is now visible,
and the end of the spring cylinder (2). Make a note of the measurements.
6.Remove the Cap screws (7) carefully as parts may fly.
7.Withdraw the compression washer and spring. (6)
8.Remove the cover plates from the underside of the SCS body. (3)
9.Grease all working parts with a medium, waterproof, bike grease.
10.Refit the new springs complete with compression washer and screw.
12.Check that the threaded end on the screw (5) is level with, or within +/- 2mm
of the bottom of the slot in the clevis. (4)
| SIL VER BU LLE T & AR ROW
PA GE | 8
1
2
3
4
5
6
7
8
9
10
11
