2-11
䕔

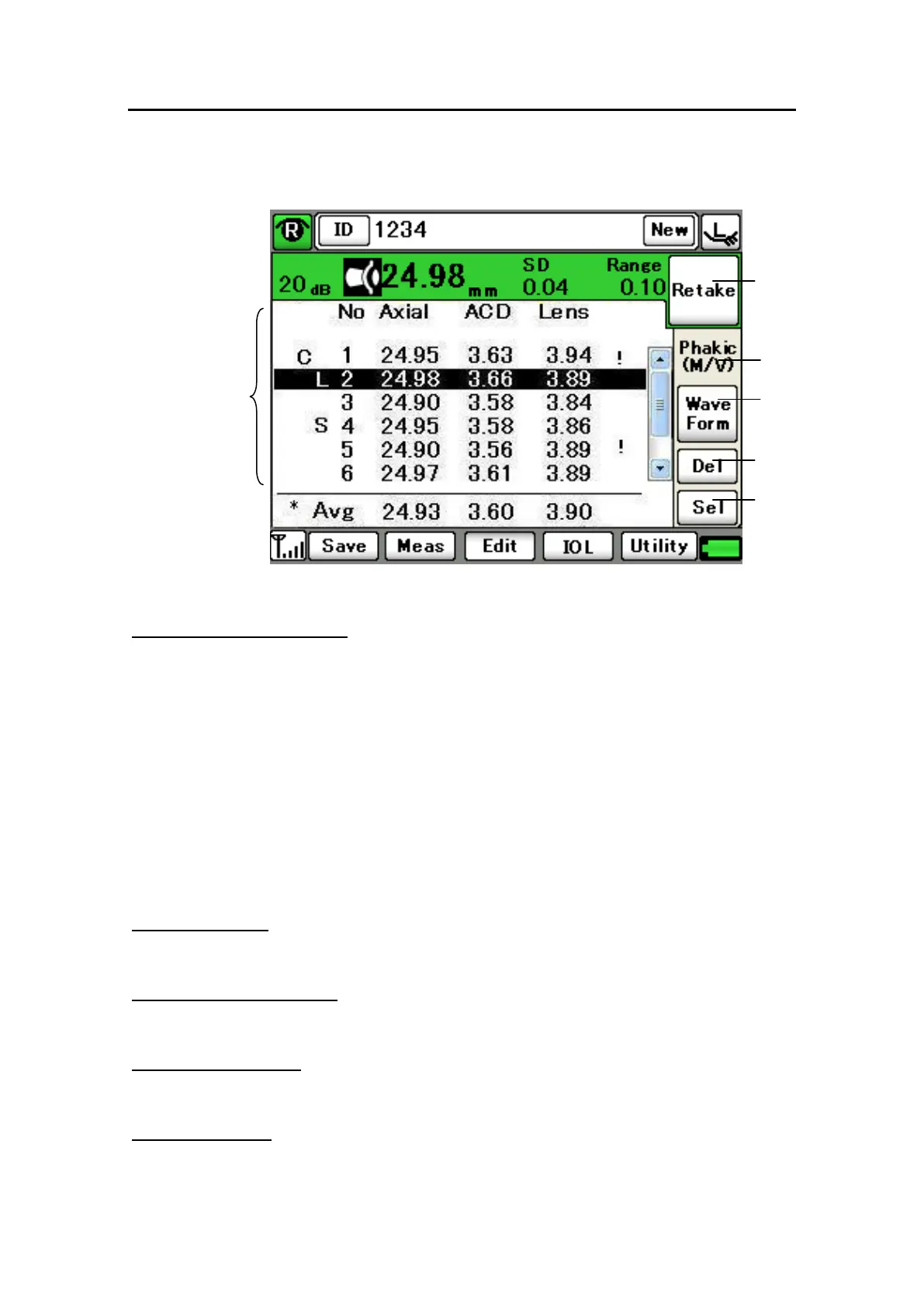

b) Edit screen (data list)
(1) Measurement data display
Measurement data of the axial length, anterior chamber depth, and crystal lens thickness,
and their averages are listed. The following marks are assigned to the measurement
data.
“*”: Data used for calculating IOL
L : Longest axial length
S : Shortest axial length
C : Calipered data
“!” : Indicates only when wave form appears at more than 1mm away from Retina spike
wave form.
(2) “Retake” button
Deletes only the displayed measurement data and takes another measurement.
(3) Eye type to be measured
Displays the current eye type to be measured.
(4) “Wave Form” button
Opens the edit screen (waveform).
(5) “Del/Ret” button
Deletes or retakes the data.
(1)
(3)
(5)
(6)
(2)
(4)
To Next Page
