7
Service
Manual
HANDY PACHYMETER SP-100
Doc. No

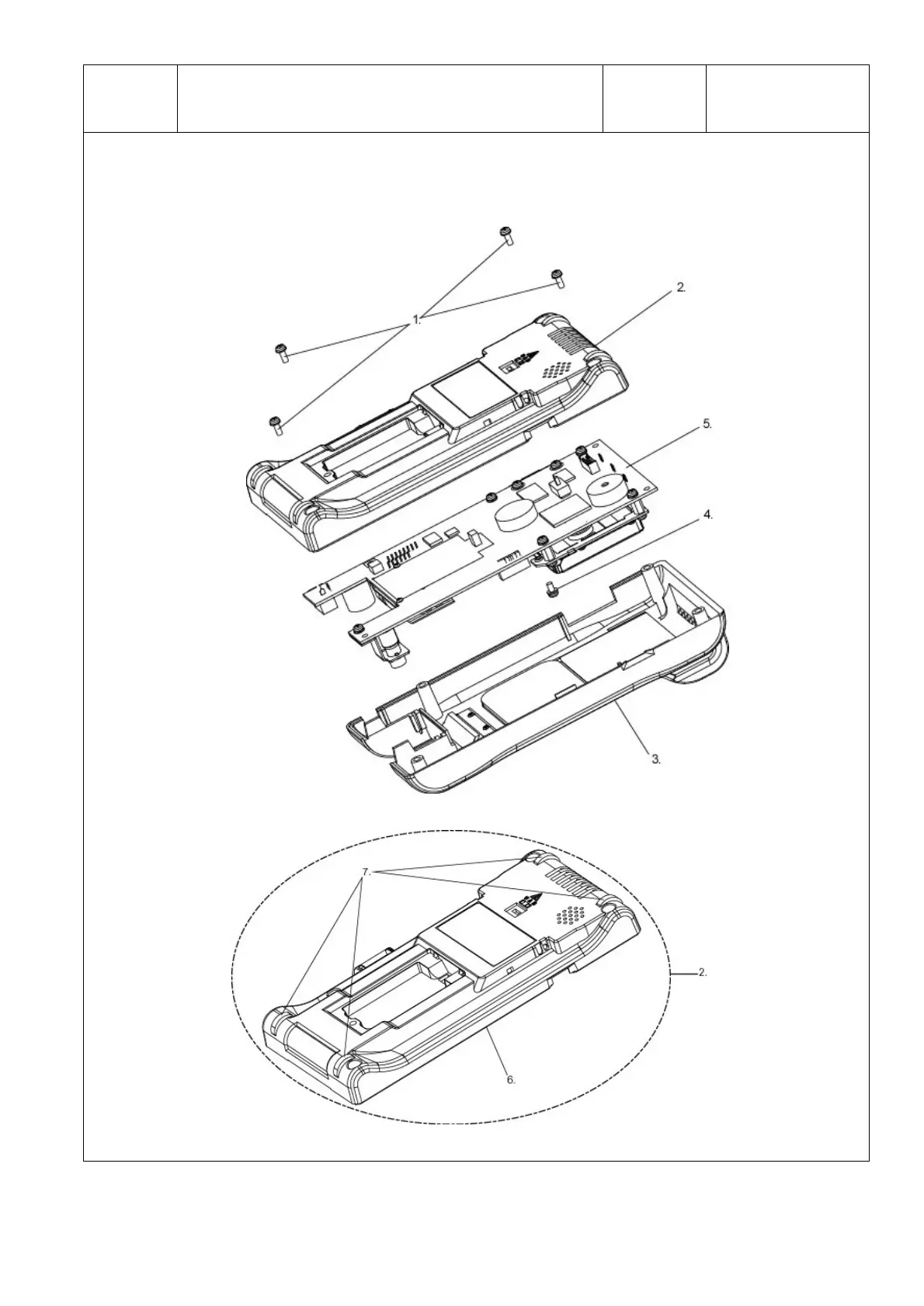

A) Remove “1. Screws and remove “2. Rear cover, Assy”.
B) Remove “4. Screws with spring washer” that hold ground cable (ALPET) connected to 3. Front cover, Assy”
C) Remove connector of “Membrane switch” from connector of “5. Main base (process3)”.
Note:
7. Foot, rubber” is attached to “6. Cover, rear” with adhesive glue.
