TOORX CSX3000 - Page 16

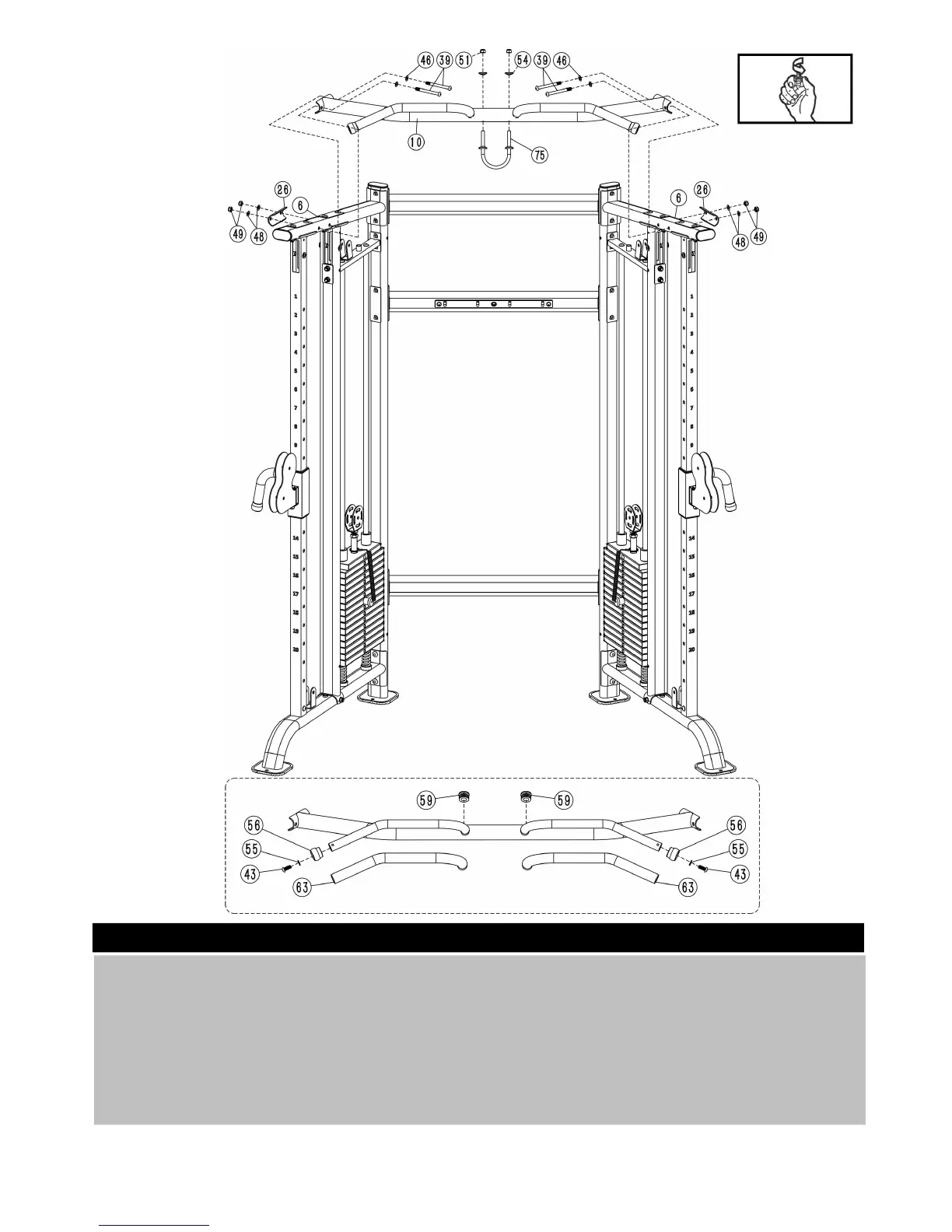

Step 10
1. Attach the U-shape hook (75) to the Chin up bar Frame (10) using 2 x φ12 Curved Washers (54), 2 x
M12 Aircraft Nut (51).
2. Attach the Chin up bar Frame (10) to the middle of the 2 x Upper Frame (6) using 8 x φ10mm
Washers (48), 4 x M10 Aircraft Nut (49), 4 x M10×100mm Allen Bolts (39) and 2 x Arc Bracket (26).
Notes: Parts (43, 55, 56, 59, 63) are pre-assembled.
