Step 13

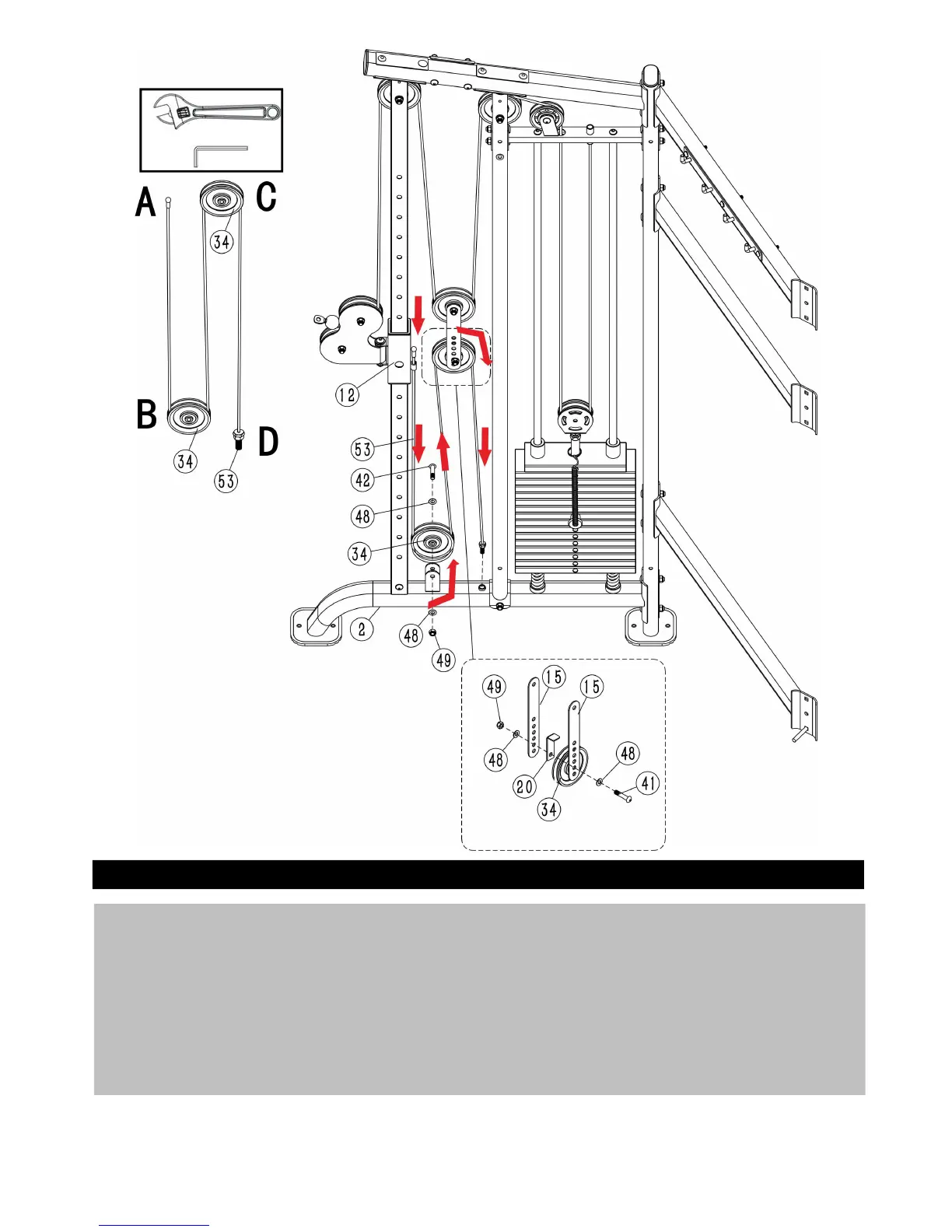

1. Put the End A of the Adjustment Cable (53) through the sleeve on the right side of the Right Sliding
Frame (12) as shown in the diagram, then screw the End D in the nut on the Base Frame (2).
2. Connect the Pulley φ114 B (34) and Adjustment Cable (53) to the Base Frame (2) using 1 x
M10×45mm Allen Bolt (42), 2 x ø10mm Washers (48) and 1 x M10 Aircraft Nut (49), and ensure the
cable in the pulley groove.
3. Connect the Pulley φ114 C (34) and Adjustment Cable (53) to 1 x L- Shaped Cable Protector (20) and
2 x Double Pulley Bracket (15) using 1 x M10×50mm Allen Bolt (41), 2 x ø10mm Washers (48) and 1 x
M10 Aircraft Nut (49).
4. Cable tension can be adjusted by the End D of the Adjustment Cable (53).
