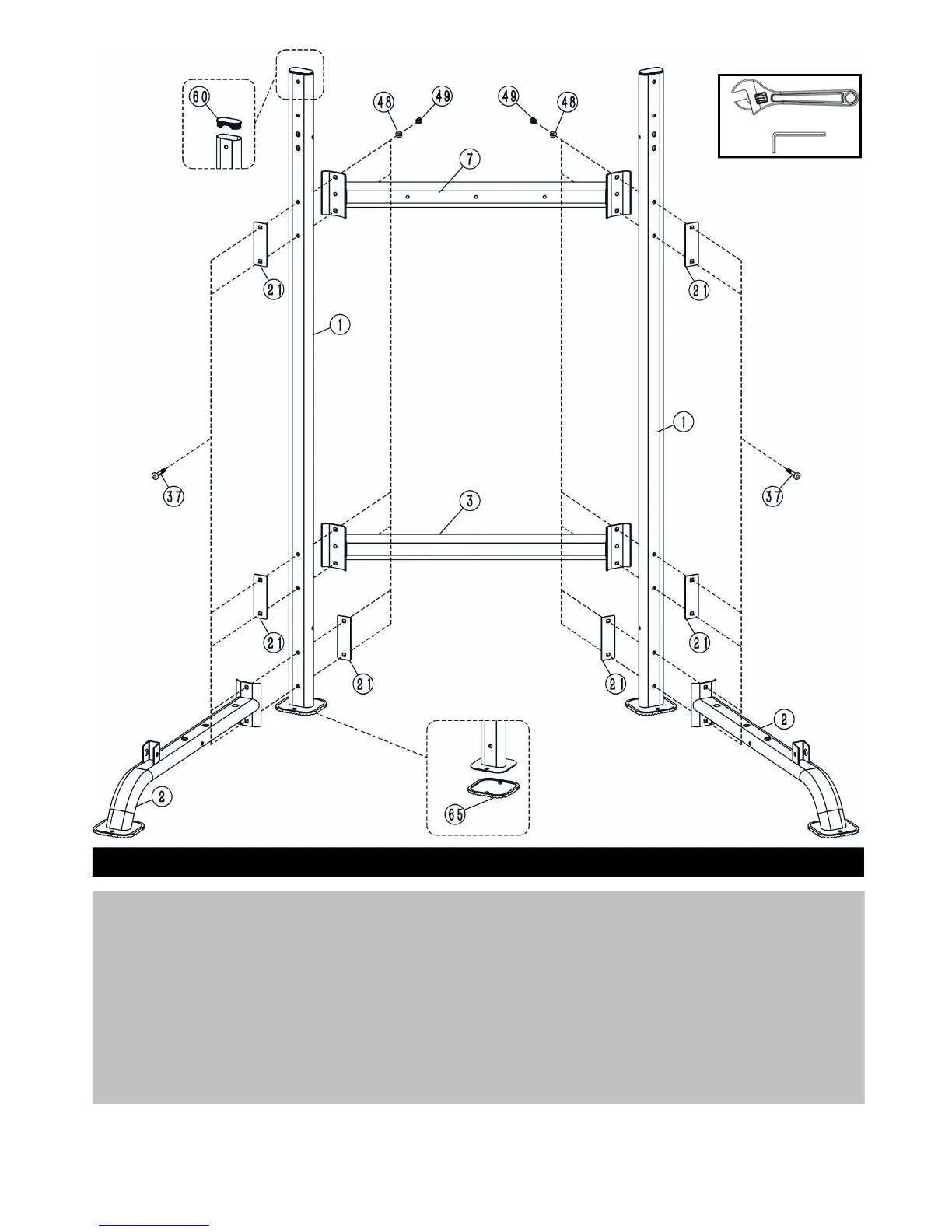

Step 1
1. Attach 2 x Base Frame (2) and 2 x Flat Bracket (21) to 2 x Rear Vertical Support (1) respectively using 2
x M10×60mm Carriage Bolts (37), 2 x φ10mm Washers (48) and 2 x M10 Aircraft Nuts (49).
2. Attach 1 x Cross Beam (3) and 2 x Flat Bracket (21) to 2 x Rear Vertical Support (1) respectively using 4
x M10×60mm Carriage Bolts (37), 4 x φ10mm Washers (48) and 4 x M10 Aircraft Nuts (49).
3. Attach 1 x Upper Connecting Frame (7) and 2 x Flat Bracket (21) to 2 x Rear Vertical Support (1)
respectively using 4 x M10×60mm Carriage Bolts (37), 4 x φ10mm Washers (48) and 4 x M10 Aircraft
Nuts (49).
Notes: The part (60) and (65) are pre-assembled.
