Tooway KA-SAT - Pointing Beeper Process Phase

54 pages

To Next Page

To Previous Page

page 50

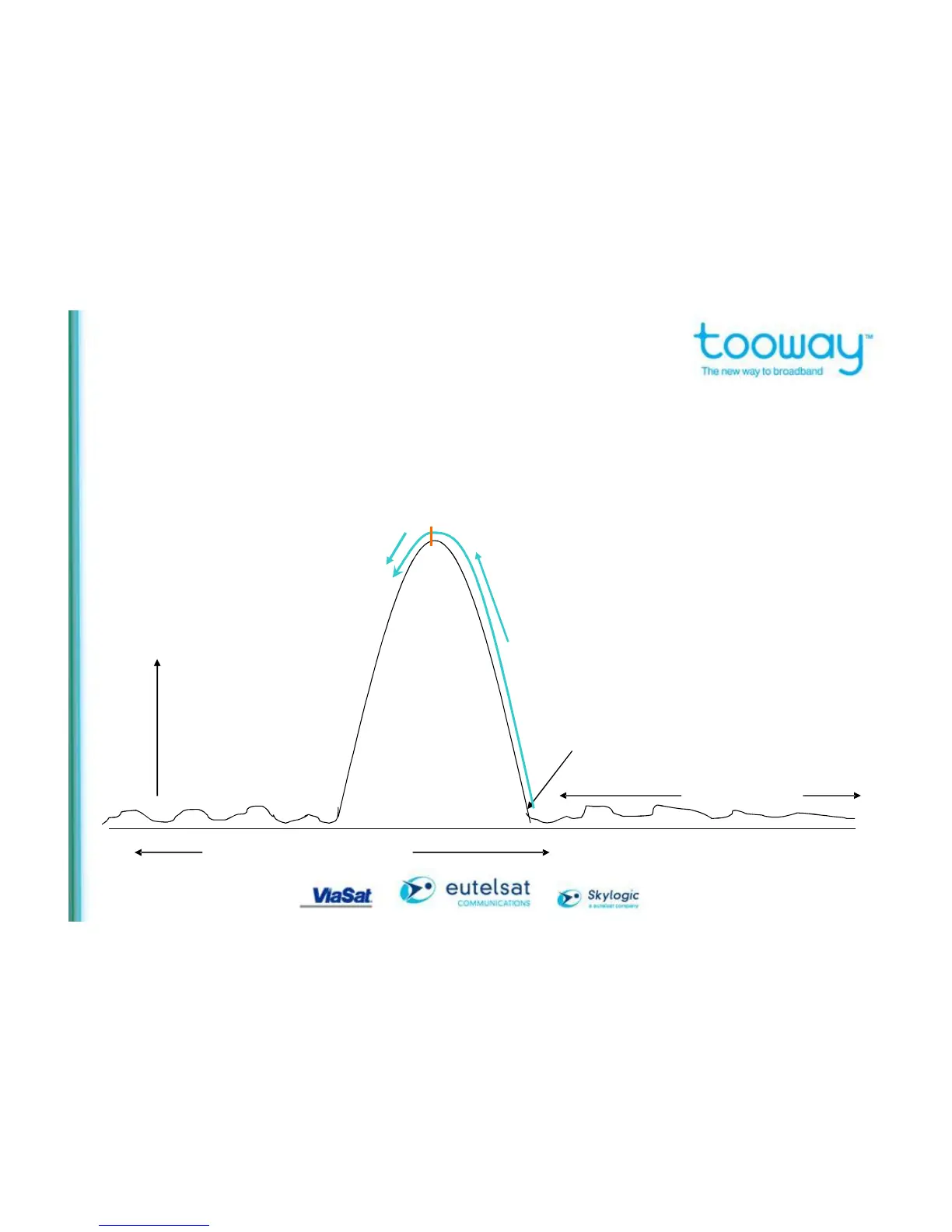

Pointing Beeper process Phase

In Az, Modem detect the first maximum

Az or El angle of antenna

Satellite

Fwc carrier

SNR

SNR about 0 dB

AGC tone (bip bup), Modem Carrier

detection and synch.

Heard Beat

First maximum

Constant Beep Beep tone

Lower Beep Beep tone
