MC-2.5 Receiver Box
P/N 7010-0781
B-5

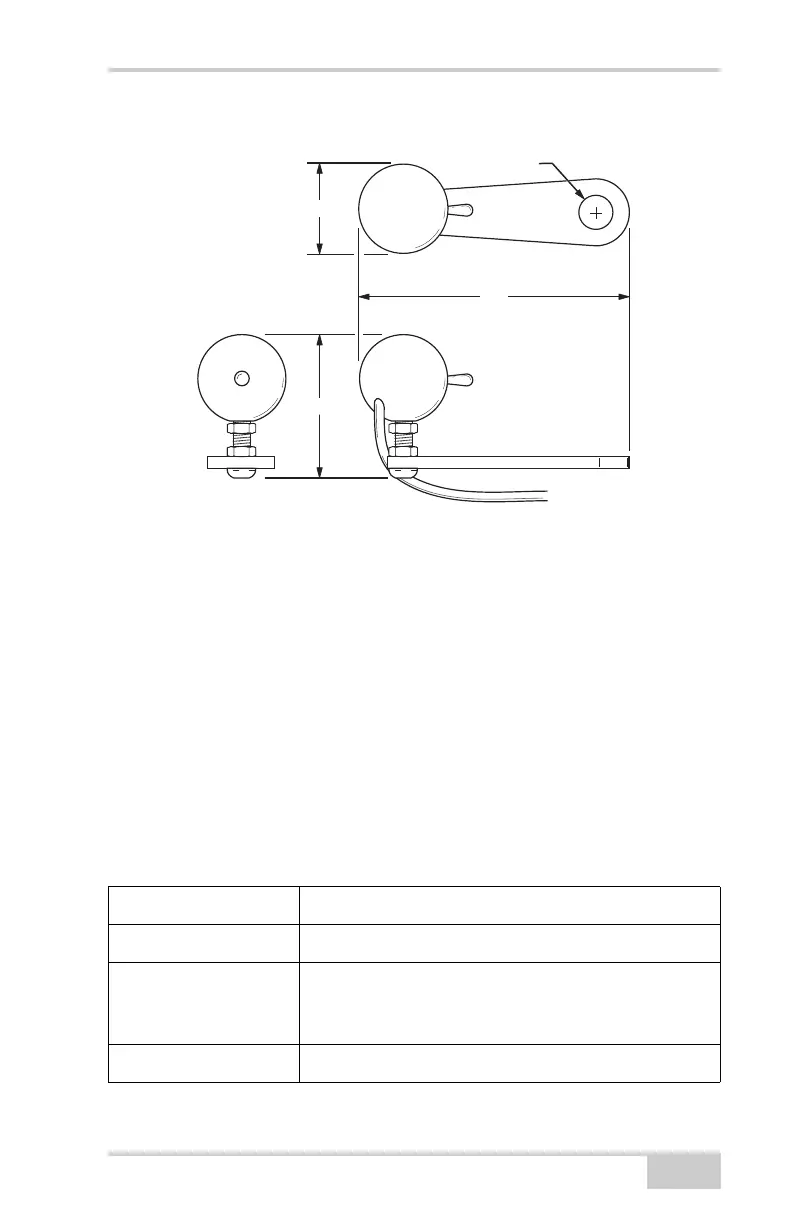

Figure B-3 shows the dimensions of the Simple A/M Knob:
Figure B-3. Simple Auto/Manual Knob Dimensions
MC-2.5 Receiver Box
The MC-2.5 Receiver provides the industry’s most advanced
GLONASS and GPS dual-frequency satellite tracking system in a
heavy-duty construction design with a shock absorbing mounting
bracket. Four, high-power, bottom mounted magnets keep receiver in
place on machine. The receiver also features compliance with CMR
and RTCM industry standards and has optional advanced multipath
mitigation and optional in-band interference rejection. Table B-4 lists
specification details for the MC-2.5 Receiver Box.
Table B-4. MC-2.5 Receiver Box Specifications
Housing Cast aluminum
Weight 12.10 lb. (5.5 kg)
LEDs Three LEDs: Power (red); Satellite status (green for
GPS; green and red GPS and GLONASS); Radio status
(yellow)
Supply Voltage 10 to 30 VDC
3.0
1.6
5.0
Ø0.5
