D. Implement Wheels Offset - deﬁnes the

distance from pivot point of the drill to front

row of openers. Enter:

i. a negative number for standard machines

as the pivot point is the back tires;

ii. a positive number for a High Flotation

machine as pivot point is the front tires.

E. Implement Offset - is the distance from the

front hitch to pivot point of the drill.

i. for a regular drill, the pivot point is back

tires;

ii. for a high ﬂotation drill, the pivot point is

front tires.

Note

The individual boom geometry is set to match

the actual position and depth of the respective

openers for that boom. Factory proﬁles have the

Fertilizer and NH3/Liquid booms set up assuming

it is using MRB’s. If that is not the case then the

geometry needs to be adjusted for those booms

to match the Seed boom.

F. Trailer Wheels Offset (used for Leading Air

Seeders ONLY) - is the distance from the

airseeder tires to rear hitch pin.

G. Trailer Offset (used for Leading Air Seeders

ONLY) - is the distance from the airseeder

tires to the front hitch pin.

H. Working Length - is the depth of the boom

(distance from the front row of openers to the

back row of openers).

Note

If you are using Auto Section Control (ASC)

to control the product, these dimensions are

extremely important for guidance to perform

accurate coverage.

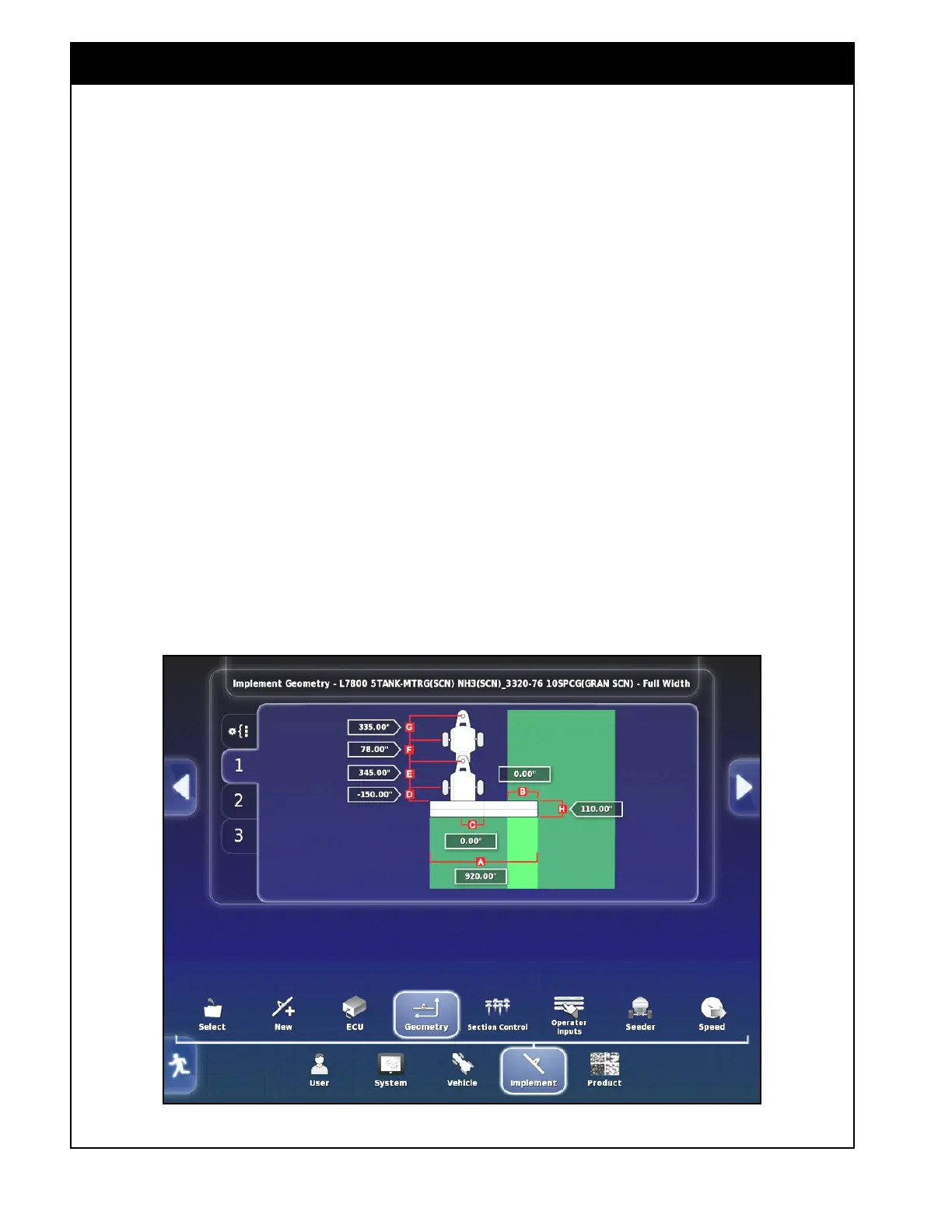

Figure 6.42 - Implement Geometry (LDG)
