Topsonic TM035 - Main Function Outline

Page
4

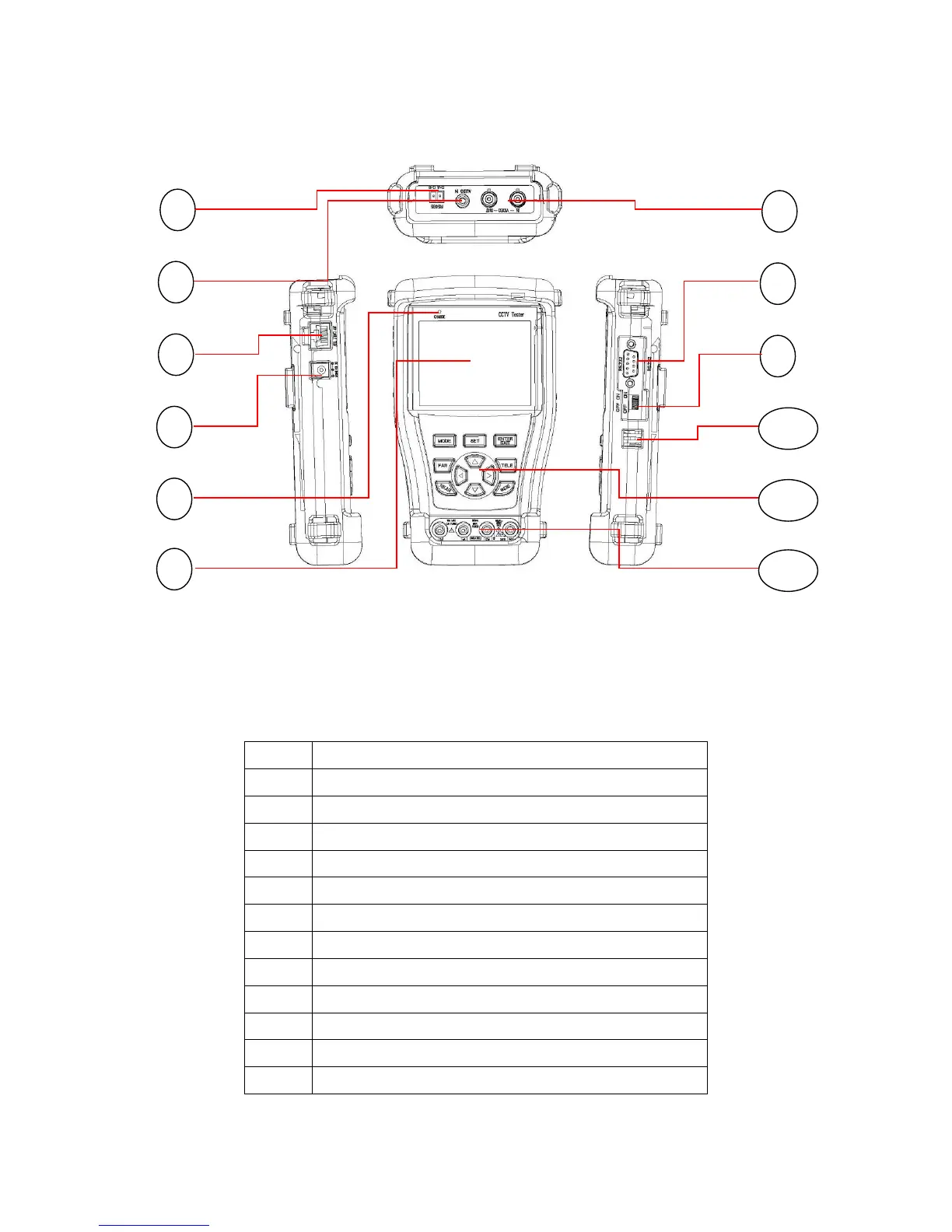

2.2 Main function outline
Table 1. Function table
Item
Function
1
PTZ control (RS-485)
2
Audio in from Microphone
3
RJ45 connector for LAN connection
4
DC 12V input/output jack
5
Charging indicator for internal Battery
6
LCD panel Display
7
Video input / output
8
RS232 connector
9
On/Off Power switch
10
Speaker
11
Function buttons (see Table 2)
12
Digital multi-meter Sockets
1
2
3
4
5
6
7
8
9
10
11
12
