3.2 Tork EasyCube Gateway
The Gateway collects the data from the sensors
and sends information to the Tork EasyCube
system. The gateway acts as a communication
hub for all the sensors that have been paired
with it. The unit collects and processes incoming
sensor data.
The gateway needs to be connected to a power
outlet all the time.
The gateway is installed away from water and as
high up as possible for best performance.

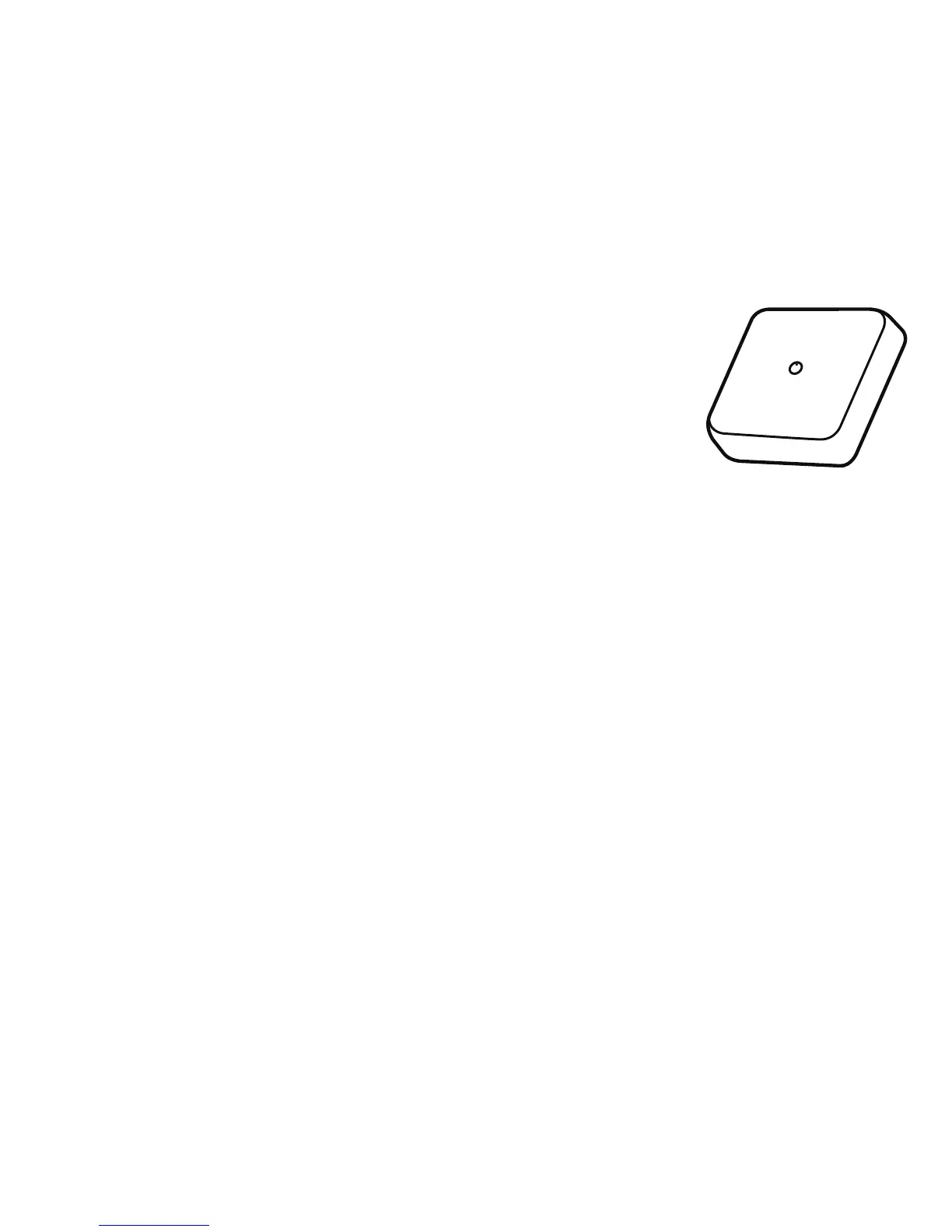

Figure 8. Gateway
The gateway has a built-in 2G/3G modem used to connect to Internet.
No access to local physical networks is needed. Communication
between sensors and the gateway is based on Essity proprietary
protocol. Article number: 682920
In order to cover larger areas, several gateways may be needed. As
each gateway has communication capabilities with the server, they
can be installed over a large area with no requirements of in-between
communication.
