Drive type TORMAX 1102 Swing Door Drive
Drive system Electro-mechanical drive with DC-motor, extensible with modules, spring activated
closing or opening.
Control System MCU42
Door leaf width and mass 28” – 48”, up to 275 lbs. according to diagram
Opening angle 70 ° … 110 ° max.
Speed 5 °… 60 °/s max.
Mains connection 230/115 V AC, 50/60 Hz
Dimensions 3-11/32” x 5-3/64” x 25-13/64”
2 leaves with mechanical door coordinator: 100 × 135 × door width
Power consumption 3 … 140 W
Automatic reset in the event of a
power failure
In the closing
and opening direction corresponds according to DIN 1154 to closer
parameter 4 with the linkage pushing.
Protective class IP 20
Ambient temperature – 68… 122° F
Weight: 11,2 kg
Emitted noise level < 70 dBA
Sensor supply 24 VDC (+0,5–1,5 V) Pmax. 36 W, Imax. 1,5 A
Inputs 24 VDC or potential-free (Multi Door Module MDM-A)
Outputs Holding magnet 24 VDC, < 0,25 A (Exterior Door Module EDM)
Bell 24 VDC, < 1 A, (Exterior Door Module EDM)
El. door opener 24 VDC, < 1 A, (Exterior Door Module EDM)
Potential-free 24 VDC, < 1 A, (
Multi Door Module MDM-A)
Test-out 24 VDC, < 1 A, (Power Door Module PDM)
Interfaces CAN for double door and air lock (MDM-A/MDM-B)
RS232 for Skipper (EDM, Programming Interface Module PIM)
RS485 (MDM-A)
LIN-Bus (EDM, Programming Interface Module PIM)
Approvals and standards CE
EN 16005 (TÜV)
UL 325
EN 61000-6-2, EN 61000-6-3, EN 60335-1
Durability DIN 18650 (TÜV) – 1 Million test cycles at
4000 cycles per day

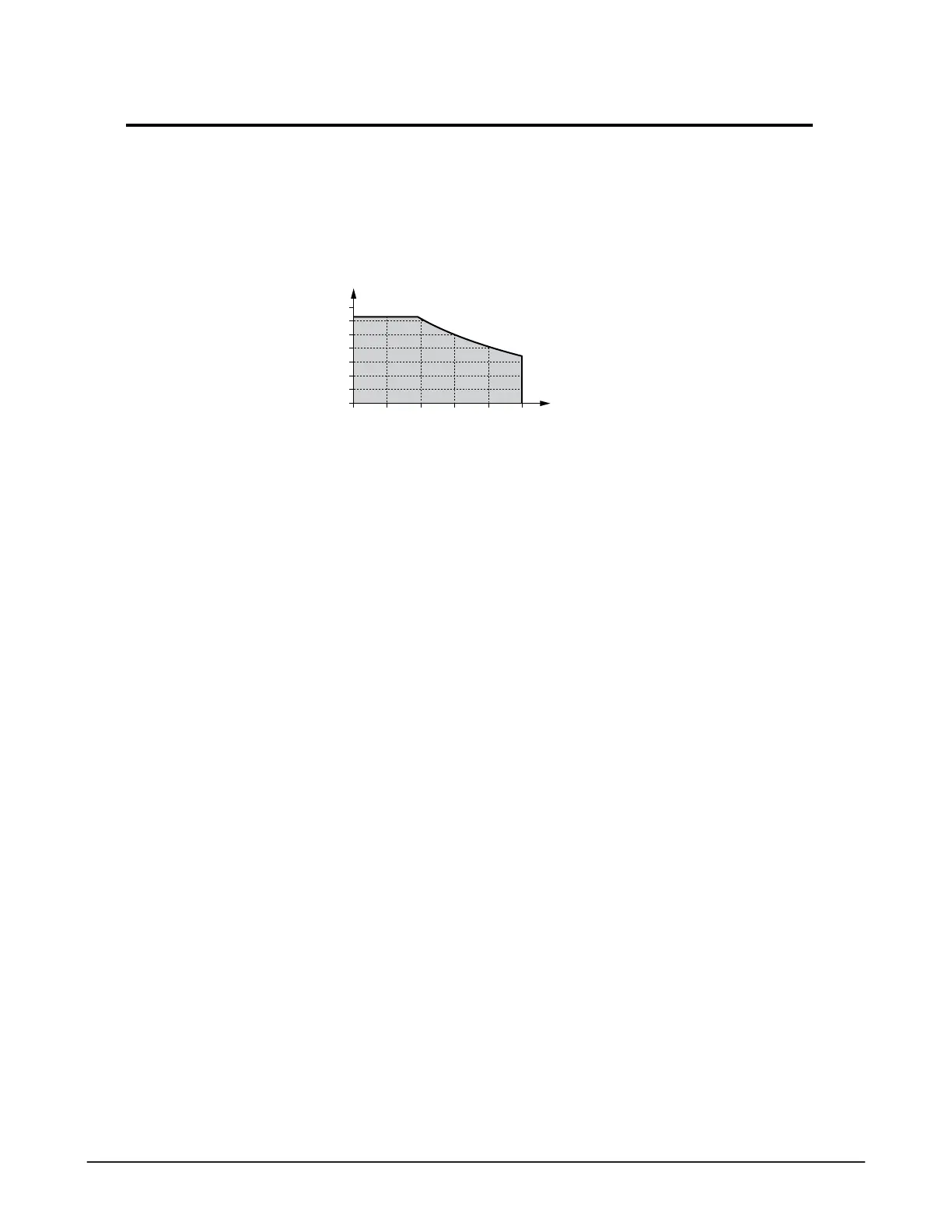

308
264
220
176
132
88
44
0
28 32
Door leaf width [inches]
Door leaf weight [lbs]
36 40 44 48 T1634_1e
TECHNICAL SPECIFICATIONS
T-1634e 1102 Technical Information
