Fuses
Reelmaster 216 (Fig. 29)
The starter circuit is protected by a 30A fuse located on
the dash panel.
Reelmaster 216 (Fig. 30)
The electrical system is protected by a 15A “ACC” fuse
located on the dash panel, a 15A “ENGINE” fuse in the
wiring harness near the ignition switch and a fusible link
in the wiring harness near the starter solenoid.
1

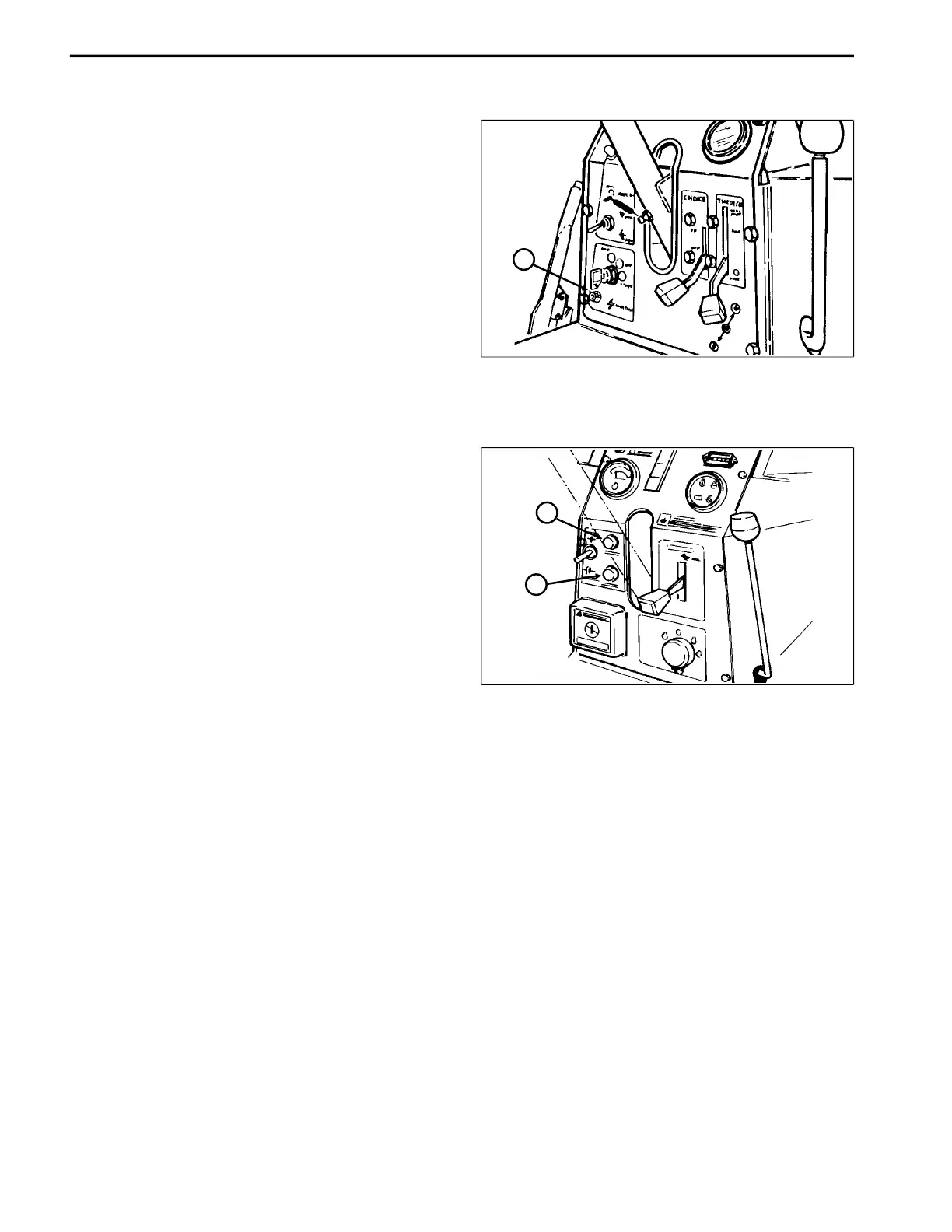

Figure 29
(Reelmaster 216)
1. Fuse holder
1
2
Figure 30
(Reelmaster 216-D)
1. Accessory fuse
2. Engine fuse
Repairs Page 6 - 32 Reelmaster
®
216/216-D
