Steering Stop Adjustment (Fig. 4)
T
o increase o
r decrease turnin
g radius of mach
ine when
steering wh
eel is turned fully left
or right, adjust steerin
g
stop screws.
1. Loosen lo
cknuts securing stop scr
ews to tabs on
steering se
ctor
.
2. Thread stop scr
ews in or out until desired tu
rning
radius is atta
ined.
3. Check adjust
ment and tighten locknu
ts.

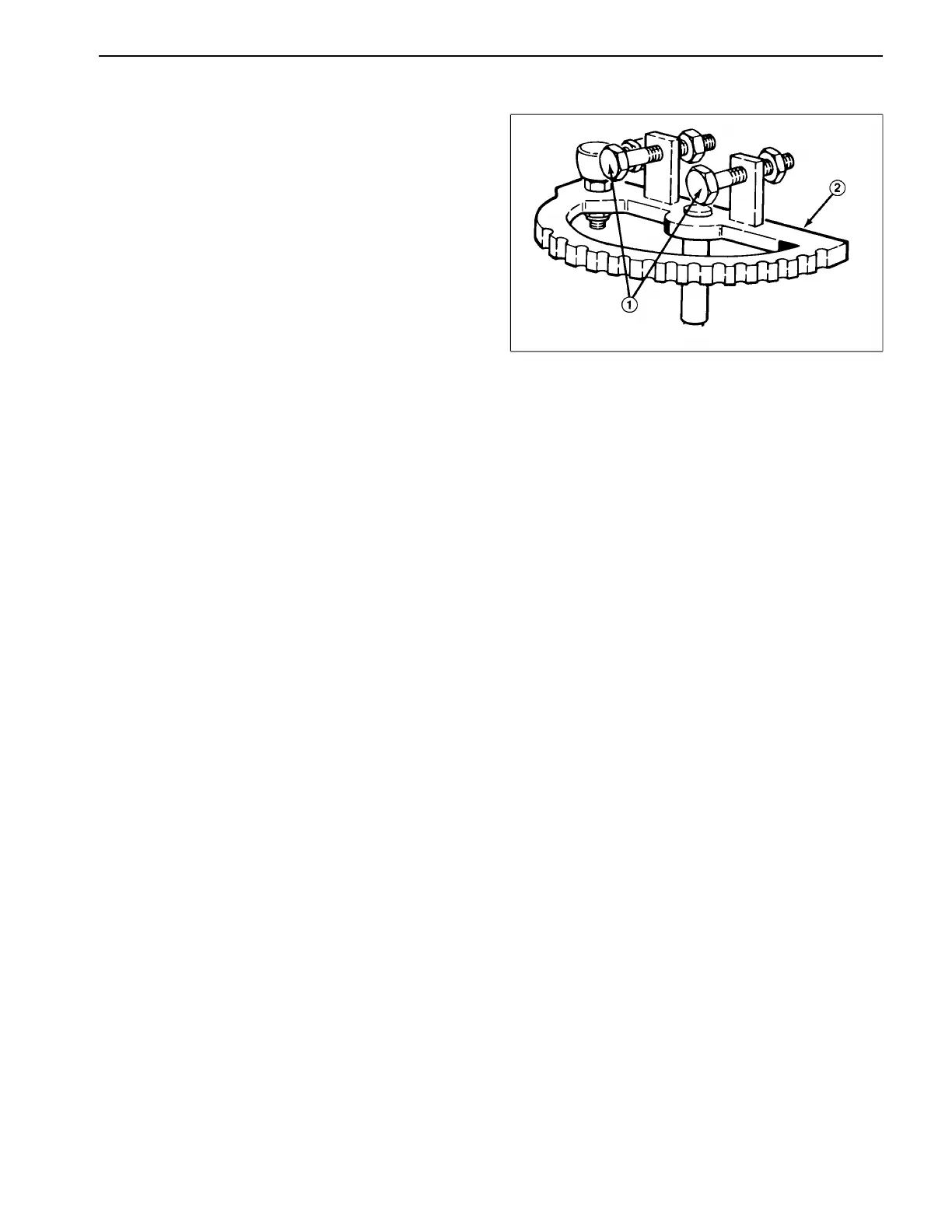

Figure 4
1. Stop screws
2. Steering sector
Reelmaster
®
216/216
-D
Page 7 - 5
Ad
justments
110
112
