Clutch Adjustment (Reelmaster 216) (Fig. 7)
1. Check adjustment by inserting a feeler gauge through
slots next to flange studs on clutch (Item 21).
2. Correct disengaged clearance between clutch plates
is 0.006 to 0.012 in. It will be necessary to check this
clearance at each of the three slots to make sure the
plates are parallel to each other and equal at all three
locations.
3. Adjust by tightening or loosening locknuts on flange
studs.

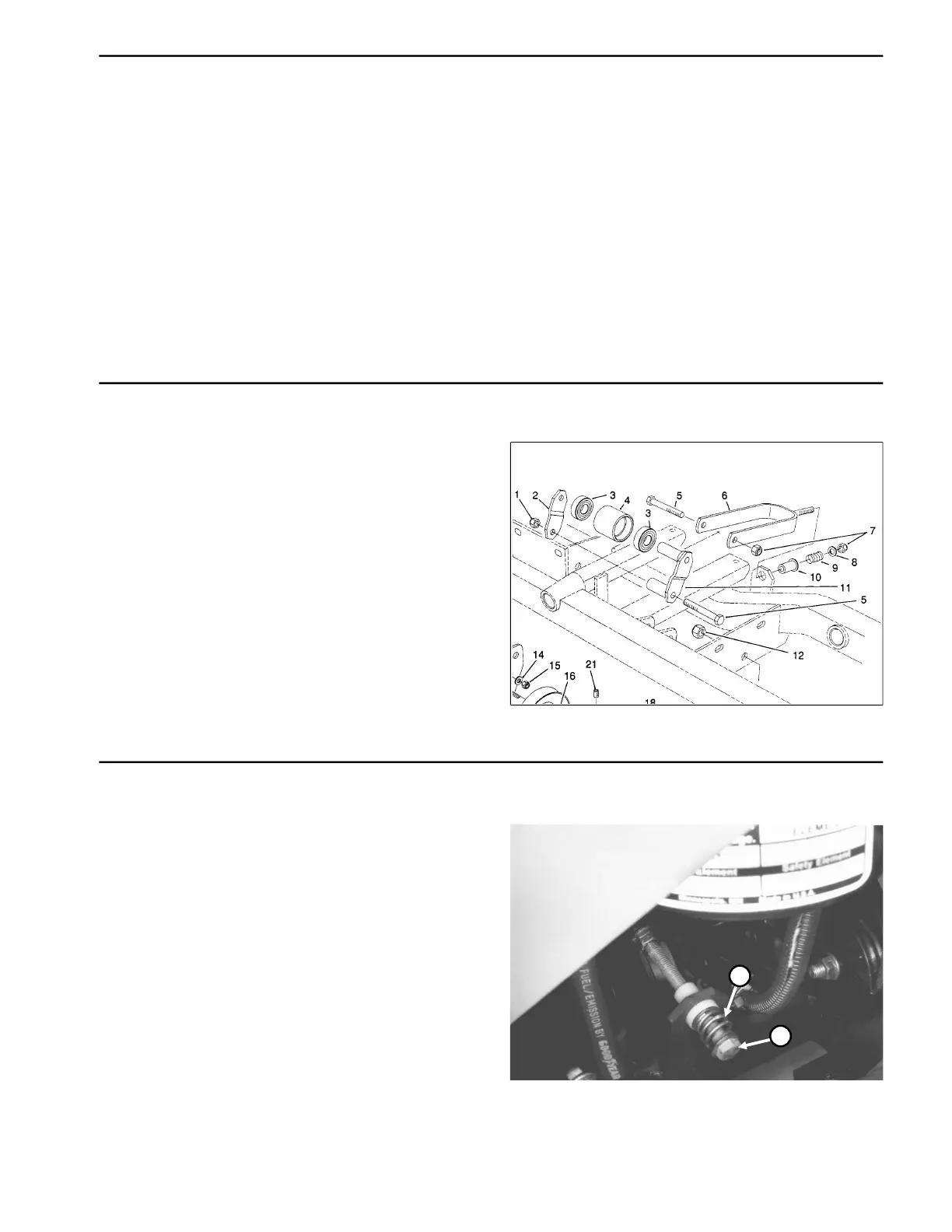

Jackshaft Belt Adjustment (Reelmaster 216) (Fig. 5)
NOTE: When a new belt has been installed, check
tension again after the first 8 hours of operation.
1. Make sure the idler bracket (Item 11) and belt ten-
sioner (Item 6) are free to move.
2. Adjust nut (Item 7) on belt tensioner to compress
spring (Item 9) to a length of 3/4 in.
Figure 5
Jackshaft Belt Adjustment (Reelmaster 216-D) (Fig. 6)
NOTE: When a new belt has been installed, check
tension again after the first 8 hours of operation.
1. Make sure the idler bracket and belt tension yoke are
free to move.
2. Adjust capscrew to compress spring to a length of
3/4 in.
1
2
Figure 6
1. Capscrew 2. Spring
Reelmaster
®
216/216-D Page 8 - 3 Adjustments
