AdjustingtheReelBearing(continued)
6.Useasuitabletorquewrenchandsplineinserttool(referto(page)),check
thatthereelrollingtorquedoesnotexceed1.1N∙m(10in-lb).Also,check
ifreelbearingend-playexists.Ifend-playexists,replacethecuttingreel
bearingsandseals;refertoReelAssembly(cuttingunitswithpaintedside
plates)(page9–29)andReelAssemblyService(cuttingunitswithpainted
sideplates)(page9–33).
7.ApplyLoctite#243(orequivalent)tothethreadsofthesetscrewandsecure
thebearingadjusternutinplacewiththesetscrew;torquethesetscrew
to1.4to1.7N∙m(12to15in-lb).
8.Afteradjustingthereelbearing,installalltheremovedcuttingunit
componentstothecuttingunit.
LevelingtheRearRoller
Theprecisionmachinedcomponentsofthecuttingunitframekeeptherearroller
andcuttingreelinalignment(parallel).Ifthesideplatesaredisassembledoras
thecuttingreelwears,alimitedamountofsideplateadjustmentispossibleto
ensurethatthecuttingunitisproperlyaligned.
1.Placetheassembledcuttingunitonasurfaceplate.
2.Ensurethatthebedknifeisproperlyadjustedtothecuttingreel.
3.Checkiftherearrollerisleveltothecuttingreelbyusinga0.13mm(0.005
inch)feelergaugetodeterminetheclearancebetweenthesurfaceplateand
therearrollerateachendoftheroller.Astherearrollerisrotated1fullturn,
checkifthefeelergaugewillconsistentlypassundertherolleratoneend
butwillnotpassundertheoppositeend.Checktherearrollerwiththefeeler
gaugejustinsidethemachinedendsoftheroller.Aframeadjustmentshould
bemadeifthereisconsistentlymorethan0.13mm(0.005inch)clearance
undertherollerononeendbutnotontheother.
Note:Cuttingunitswith5inchdiameterreeluse2shoulderboltstosecure
thesideplatestotheframe.Cuttingunitswith7inchdiameterreeluse3
shoulderboltstosecurethesideplatestotheframe.

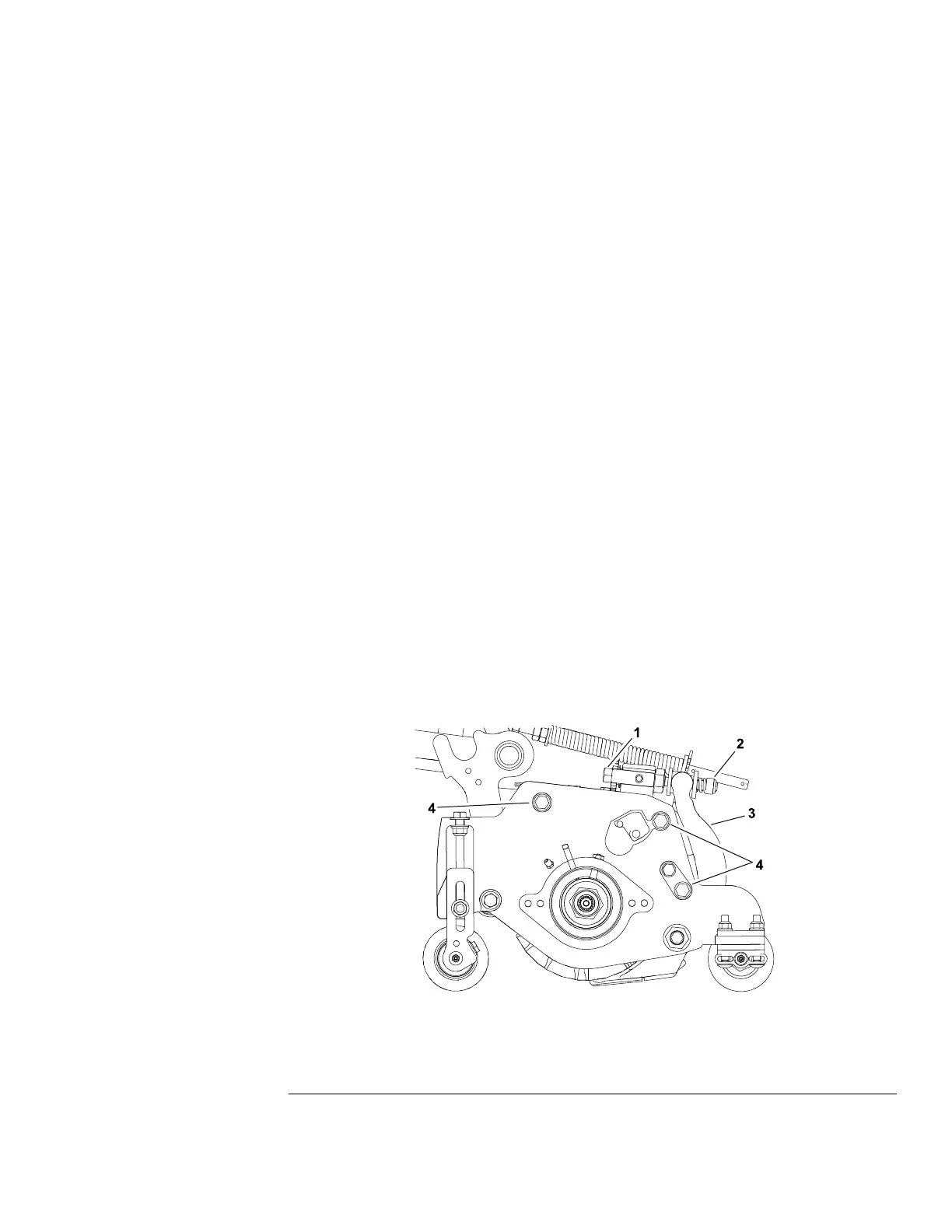

g214673
Figure325
1.Bedbaradjusterscrew3.Bedbar
2.Springtensionlocknut4.Shoulderbolt
4.Loosen,butdonotremovetheshoulderboltsthatsecurethesideplateto
theframeoppositethesidethatisnotlevel(Figure325).
Reelmaster
®
5410/5510/5610Series
Page9–15
CuttingUnit:Adjustments
15216SLRevC
