Toro 03721 Service Manual

Reelmaster 7000−DPage 8 − 16Chassis

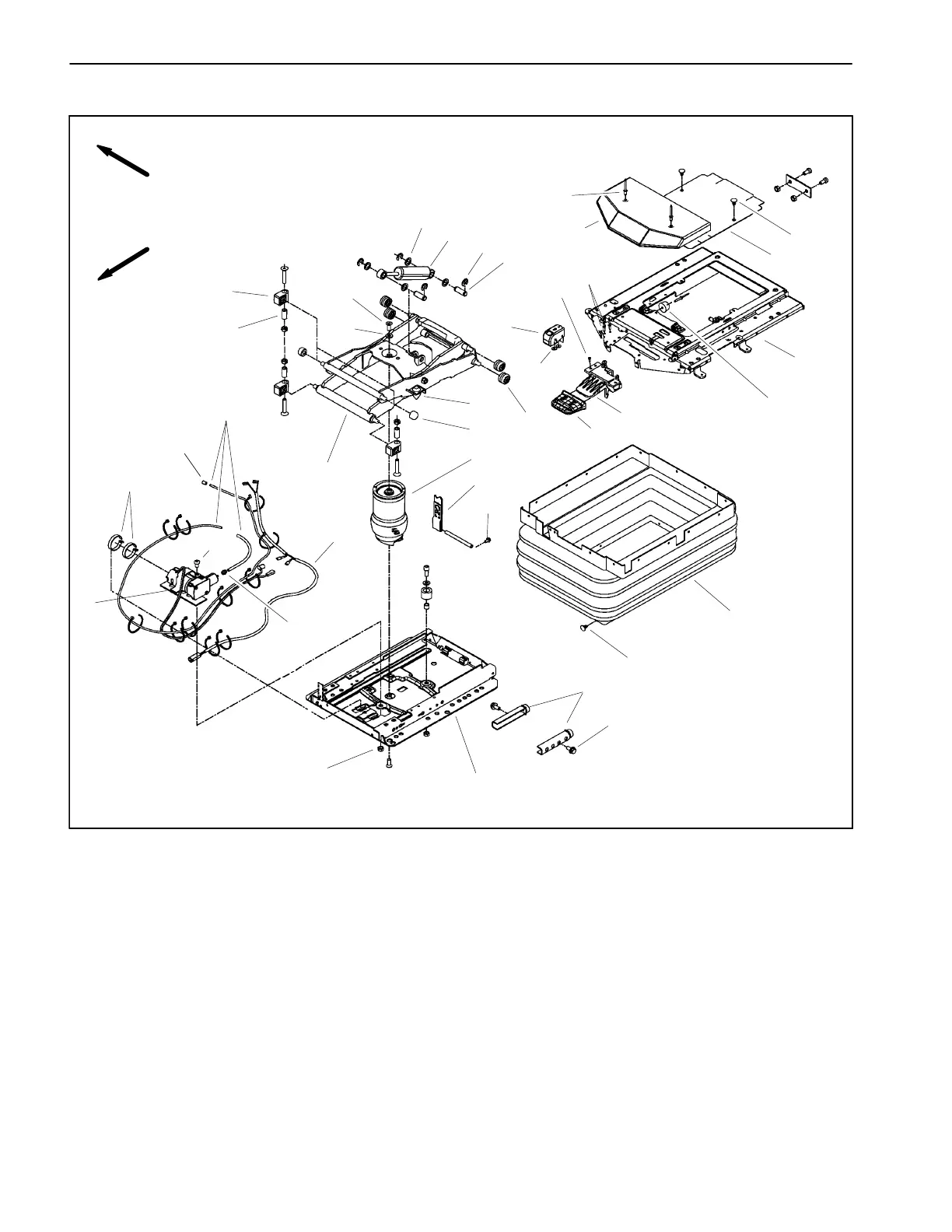

Operator Seat Suspension
1. Cover
2. Cover
3. Level control
4. Air control valve
5. Shock absorber
6. Air spring
7. Air tube assembly
8. Wire harness
9. Compressor
10. Bellows
11. Stop
12. Bumper set (2)
13. Roller (4)
14. Washer (2)
15. Tether
16. Rivet (2)
17. Washer (4)
18. C−clip (4)
19. Pin (2)
20. Rivet (2)
21. Washer (3)
22. Screw (2)
23. Washer
24. Housing support (4)
25. Spacer (4)
26. Hose nipple
27. Clamp (2)
28. Hose nipple
29. Screw
30. Handle
31. Bumper
32. Nut
33. Plastic plug (23)
34. Screw (2)
35. Roller (2)
36. Screw (4)
37. Base plate
38. Suspension frame
39. Upper plate
Figure 13
FRONT
RIGHT
11
8
7
30
10
15
6
12
13
5
3
4
2
1
9
21
33
16
17
18
19
20
22
23
24
25
26
27
28
29
31
32
33
34
35
36
14
37
38
39
