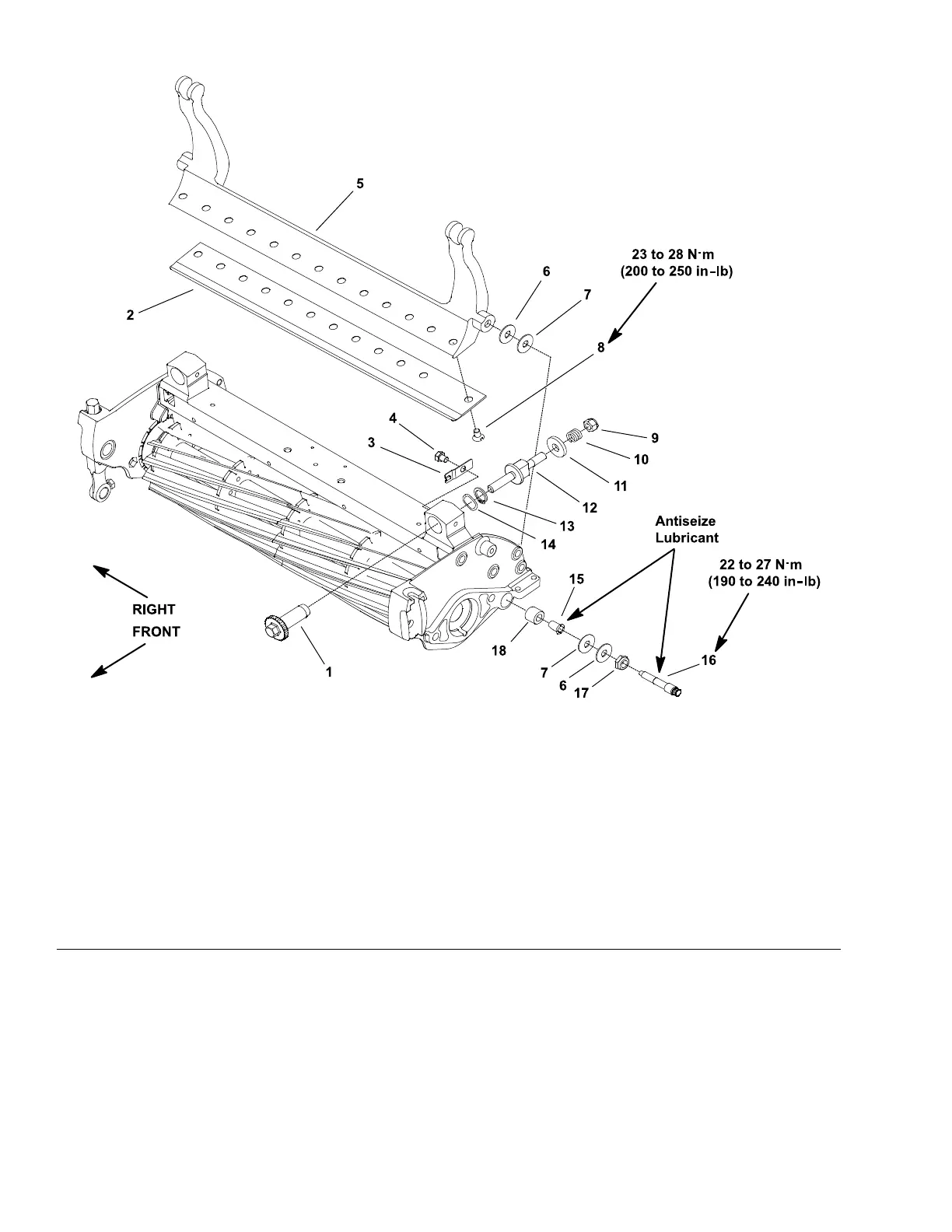

BedbarAssembly
g206881
Figure159
eFlex2100/2120
1.Bedbaradjustershaft
(2each)
7.Plasticwasher(4each)13.Retainingring(2each)
2.Bedknife8.Screw(13each)14.Wavewasher(2each)
3.Detent(2each)9.Locknut(2each)15.Nylonbushing(2each)
4.Bolt(2each)10.Compressionspring(2each)16.Bedbarpivotbolt(2each)
5.Bedbar
11.Washer(2each)17.Locknut(2each)
6.Metalwasher(4each)
12.Bedbaradjusterscrew
(2each)
18.Rubberbushing(2each)
RemovingtheBedbar
1.Parkthemachineonalevelsurface,turnthekeyswitchtotheOFFposition
andremovethekeyfromtheswitch.Ensurethatthetractionleverisinthe
NEUTRALposition.
2.Disconnectthebatterypack;refertoConnectingtheLithiumBatteryPack
(page7–3).
3.Removethecuttingunitfromthemachineandplacethecuttinguniton
aatworkarea.
CuttingUnit:ServiceandRepairs
Page7–10
