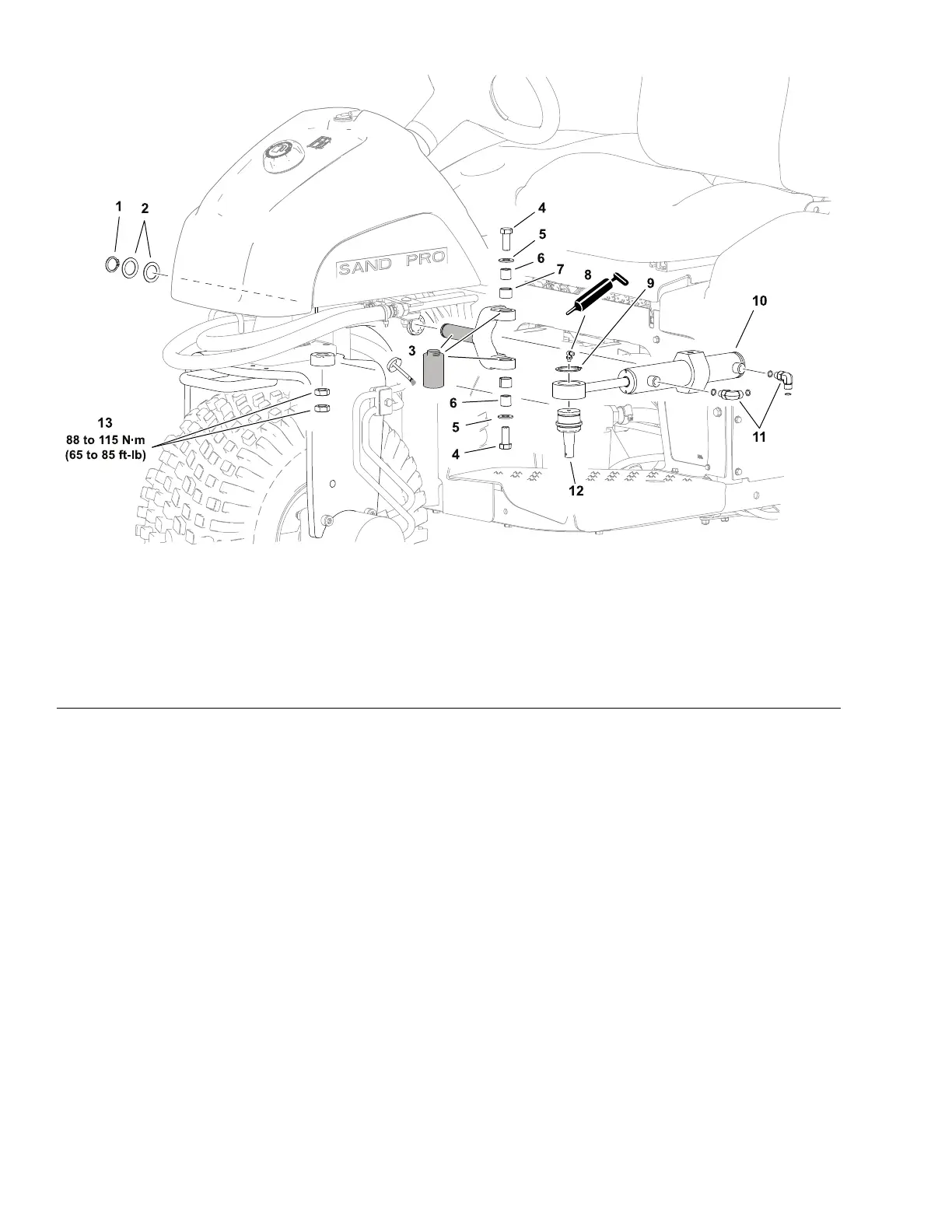

SteeringCylinder(Model08745)

g351128

Figure67

1.Retainingring

6.Spacer(2each)11.Elbowtting(2each)

2.Washer(2each)7.Bushing(2each)

12.Balljoint

3.Yoke

8.Greasetting13.Jamnut(2each)

4.Capscrew(2each)

9.Retainingring

5.Washer(2each)10.Steeringcylinder

RemovingtheSteeringCylinder

RefertoFigure67forthisprocedure.

1.Parkthemachineonalevelsurface,loweranyattachments,engagethe

parkingbrake,setthekeyswitchtotheOFFpositionandremovethekey

fromtheswitch.

2.ReadandadheretotheinformationprovidedinGeneralPrecautionsfor

RemovingandInstallingtheHydraulicSystemComponents(page5–54).

3.Cleanthettingandhydraulichoseconnectionsbeforedisconnectingthe

hydraulichosestopreventsystemcontamination.

4.Disconnectthehydraulichoses.Capthettingsandplugthehosesto

preventsystemcontamination.

5.Removethe2jamnutsthatsecurethesteeringcylinderballjointtothe

frontfork.

6.Useasuitabletool(picklefork)toseparatetheballjointfromthefrontfork.

7.Removethe2capscrewsandatwashersthatsecurethesteeringcylinder

totheyokeandremovethecylinderfromthemachine.Locateandretrieve

thespacers.

HydraulicSystem:ServiceandRepairs

Page5–102

SandPro

3040and5040

20251SLRevA
