Toro 21462 - Curved Handle Replacement (Non-Electric Start Models Only)

AWDPERSONALPACE®HandleAssemblyInstallation(continued)

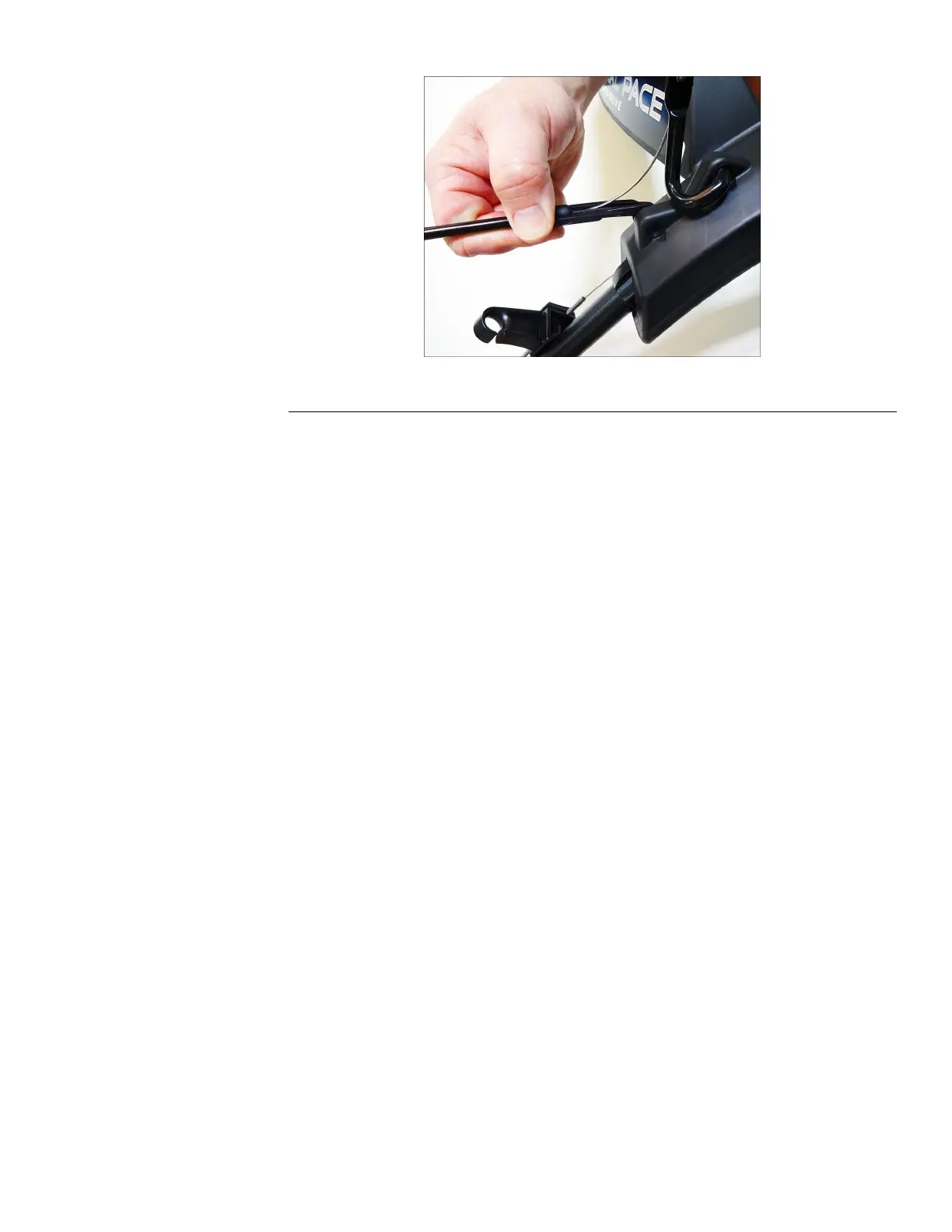

g352638
Figure76
14.Installthebrakecableintothecableanchor.
15.Installtherecoilropeontotheropeguide.
AWDPERSONALPACE®HandleAssemblyTest
1.Verifythetractioncontrolrodreturnstoaneutralpositionsmoothly.If
excessiveforceisobserved,inspectthetorsionspringforthecorrectamount
ofwrap.
Note:Thespringhashalfoftherotationwrapwhenfullyassembled.
CurvedHandleReplacement(Non—ElectricStartModelsOnly)
CurvedHandleRemoval(Non—ElectricStartModelsOnly)
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Removethegrassbaggerassemblyifattached.
3.RWDmodelsonly,removetheRWDPERSONALPACE®handle.RWD
PERSONALPACE®AssemblyHandleRemoval(page5–20)
4.AWDmodelsonly,removetheAWDPERSONALPACE®handle.AWD
PERSONALPACE®HandleAssemblyRemoval(page5–31)
5.Removethelocknutsecuringtheropeguidetothecurvedhandle.
