Toro 30410 Service Manual

Groundsmaster 4000--D/4010--DPage 6 -- 6Axles, Planetaries and Brakes
Service and Repairs
Brake Assembly

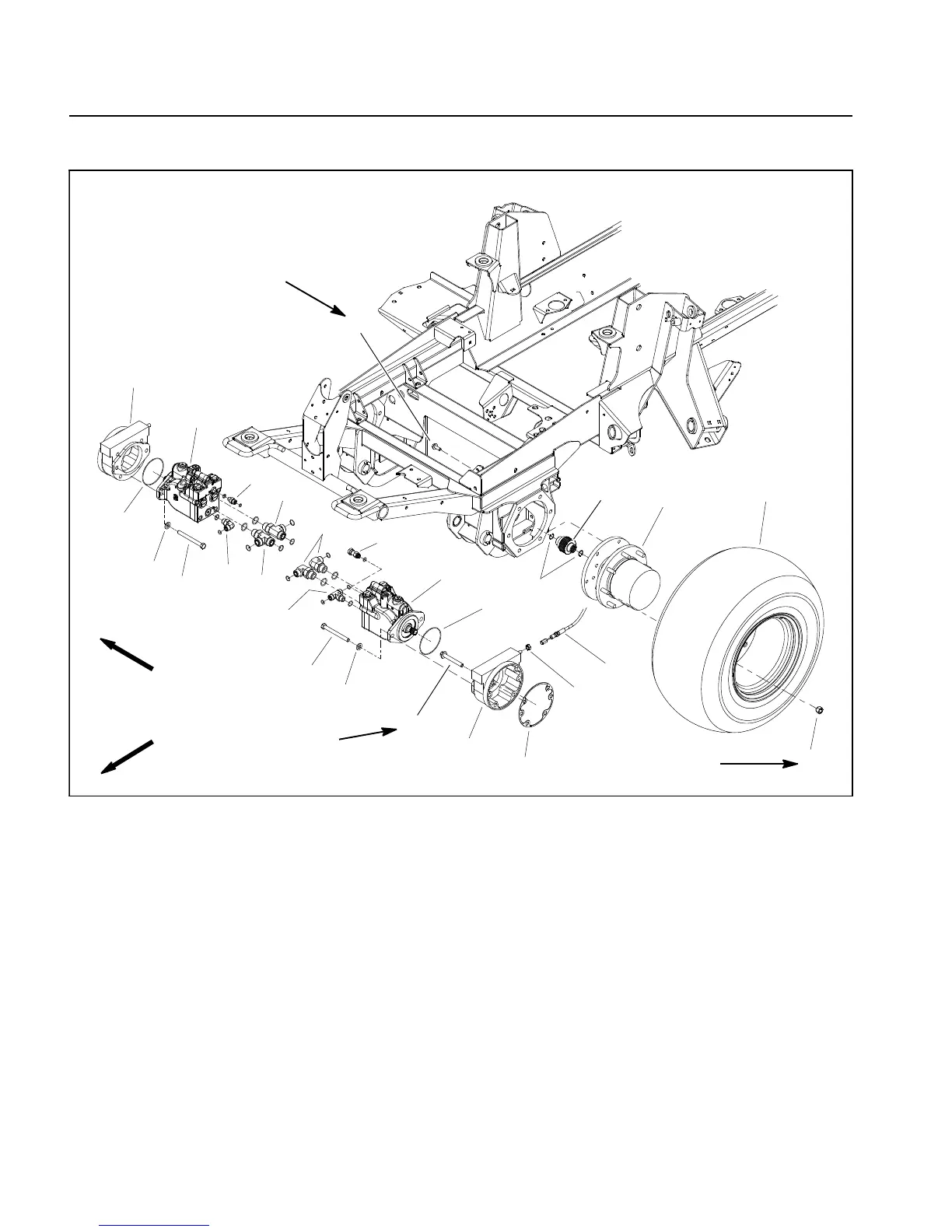

Figure 1
FRONT
RIGHT
75 to 85 ft--lb
(101 to 115 N--m)
85 to 100 ft--lb
(115 to 135 N--m)
75 to 85 ft--lb
(101 to 115 N--m)
2
3
6
8
9
11
13
1
5
7
12
14
15
4
10
1
6
7
8
13
1. Front wheel motor
2. Internal retaining ring
3. Splined brake shaft
4. RH brake assembly
5. Planetary assembly (2 used)
6. Cap screw (2 used per motor)
7. Flat washer (2 used per motor)
8. O--ring
9. LH brake assembly
10. Hydraulic tee fitting
11. 90
o
hydraulic fitting (2 used)
12. Hydraulic connector
13. Hydraulic tee fitting (2 used)
14. 90
o
hydraulic fitting
15. Straight hydraulic fitting
16. Flange screw (4 used per brake)
17. Jam nut
18. Gasket
19. Flange screw (6 used per side)
20. Front wheel assembly
21. Lug nut (8 used per wheel)
22. Brake cable (RH shown)
16
17
18
19
20
21
22
