Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 112

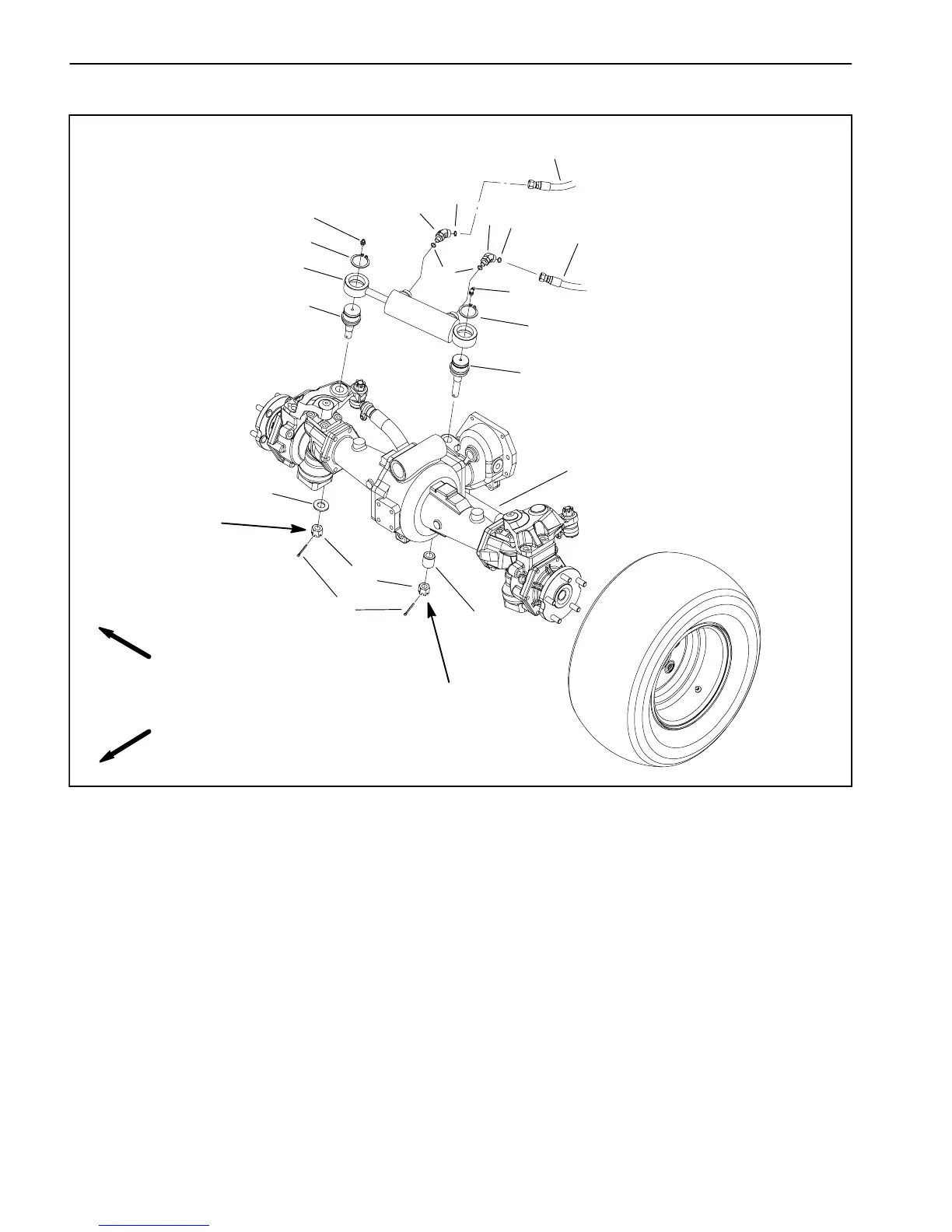

Steering Cylinder
1. Steering cylinder
2. Ball joint
3. Ball joint
4. Retaining ring
5. Grease fitting
6. Grease fitting
7. 90
o
hydraulic fitting
8. O--ring
9. O--ring
10. Drive axle assembly
11. Ball joint spacer
12. Axle washer
13. Hex slotted nut
14. Cotter pin
15. Hydraulic hose
16. Hydraulic hose
Figure 77
6
4
1
2
5
4
3
12
14
11
13
7
8
9
9
10
See text for
tightening
FRONT
RIGHT
procedure
See text for
tightening
procedure
7
15
16
