Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 136

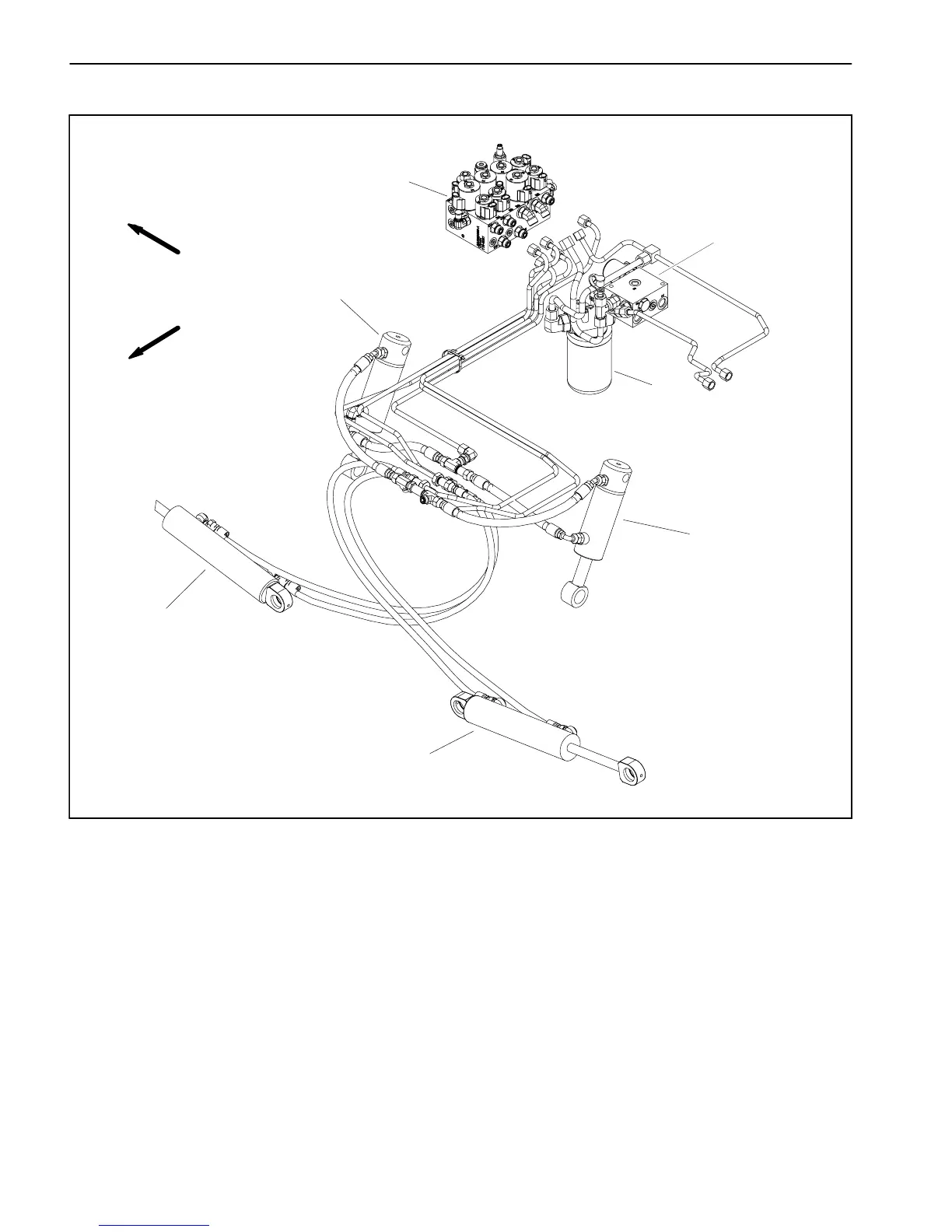

Cutting Deck Lift/Lower Circuit
1. Lift/lower manifold
2. RH wing deck lift cylinder
3. LH wing deck lift cylinder
4. Fan drive manifold
5. Oil filter
6. Front deck lift cylinder
Figure 98
FRONT
RIGHT
2
1
5
4
3
6
6
Figure98illustratesthecomponentsthatareusedinthe
Groundsmaster 4100-- D and 4110--D cutting deck lift
and lower circuits. Procedures for removal, installation
and disassembly/assembly of these components are
provided on the following pages of this section.
