Groundsmaster 4100--D/4110--DPage 6 -- 10Axles, Planetaries and Brakes

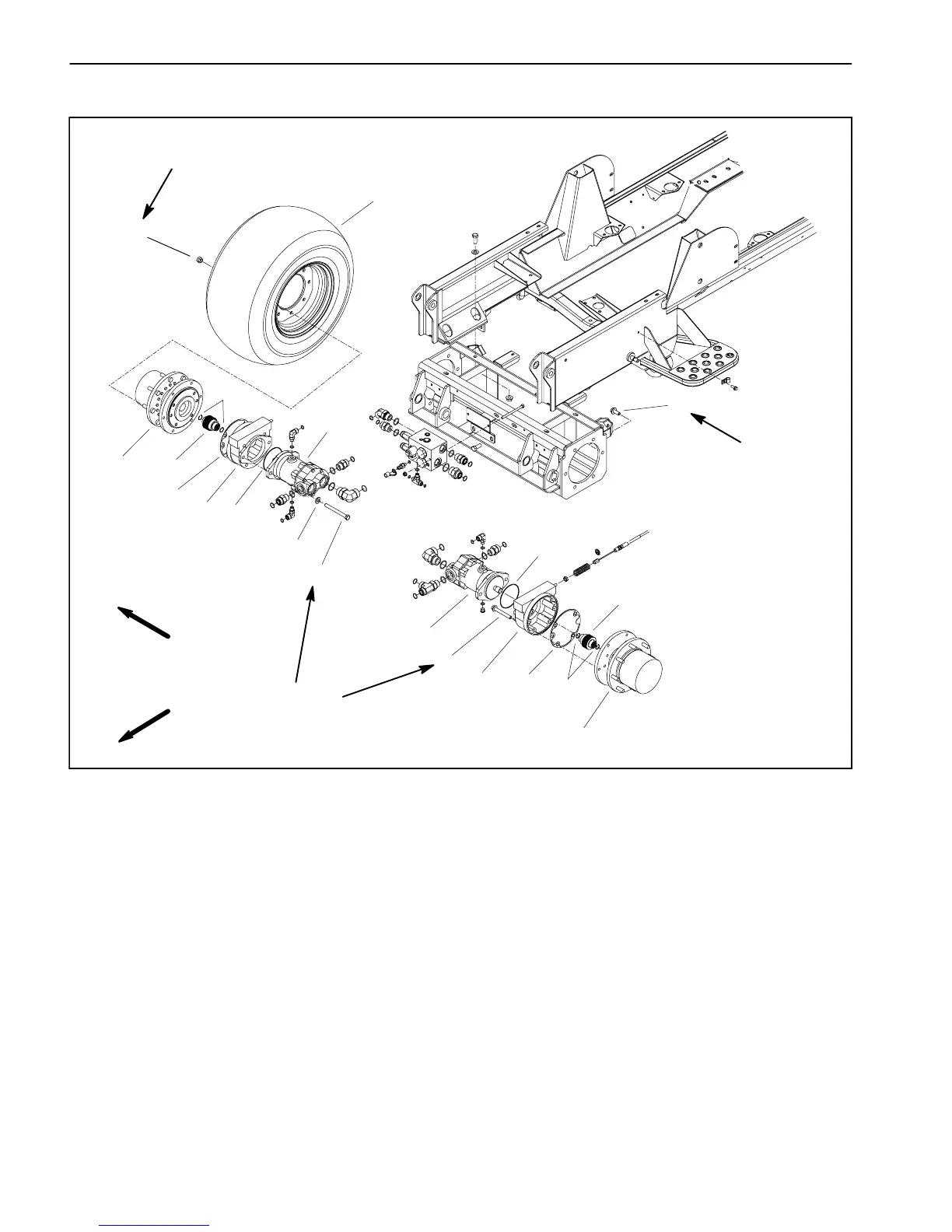

Planetary Wheel Drive Assembly
1. Planetary assembly
2. Retaining ring
3. Splined brake coupler
4. Brake assembly (RH)
5. O--ring
6. Hydraulic wheel motor
7. Flat washer
8. Cap screw (2 used per side)
9. Flange head screw (4 used per side)
10. Brake assembly (LH)
11. Gasket
12. Flange head screw (6 used per side)
13. Tire and wheel assembly
14. Lug nut (8 used per wheel)
Figure 7
FRONT
RIGHT
75 to 85 ft--lb
(101 to 115 N--m)
85 to 100 ft--lb
(115 to 135 N--m)
75 to 85 ft--lb
(101 to 115 N--m)
5
3
2
1
2
3
4
5
6
12
13
9
10
11
8
7
14
1
6
11
NOTE: Theplanetarywheeldriveassemblycanbeser-
vicedwiththeplanetaryinstalledtomachine(seePlane-
tary Wheel Drive Service in this section). Use the
following procedure to remove and install planetary
wheel drive assembly from machine.
