Groundsmaster 4100--D/4110--DCutting Deck
Page 8 -- 8
NOTE: Installationofclevispinstodeckandheight--of--
cut chains is easier if deck is lifted s lightly.
4. Install c levis pins and hairpins that secure the
height--of--cutchains tothe rearofthecuttingdeck (Fig.
2).
5. Remove plugs from hydraulic hoses and fittings on
wing deck lift cylinders. Using labels placed during re-
moval, correctly attach hydraulic hoses to lift cylinders.
6. Connect cutting deck w ire harness to mainmachine
wire harness (Fig. 5).
7. Position dampers to lift arms. Install clevis pins and
hairpins to secure dampers to lift arms (Fig. 3).
8. Install all removed c utting deck covers.
9. Install hydraulic motors to cutting deck (see Cutting
DeckMotorInstallation in the Service and Repairs Sec-
tion of Chapter 4 -- Hydraulic System).
10.Lubricate grease fittings on cutting deck and lift as-
semblies.
11.Fill reservoir with hydraulic fluid as required.

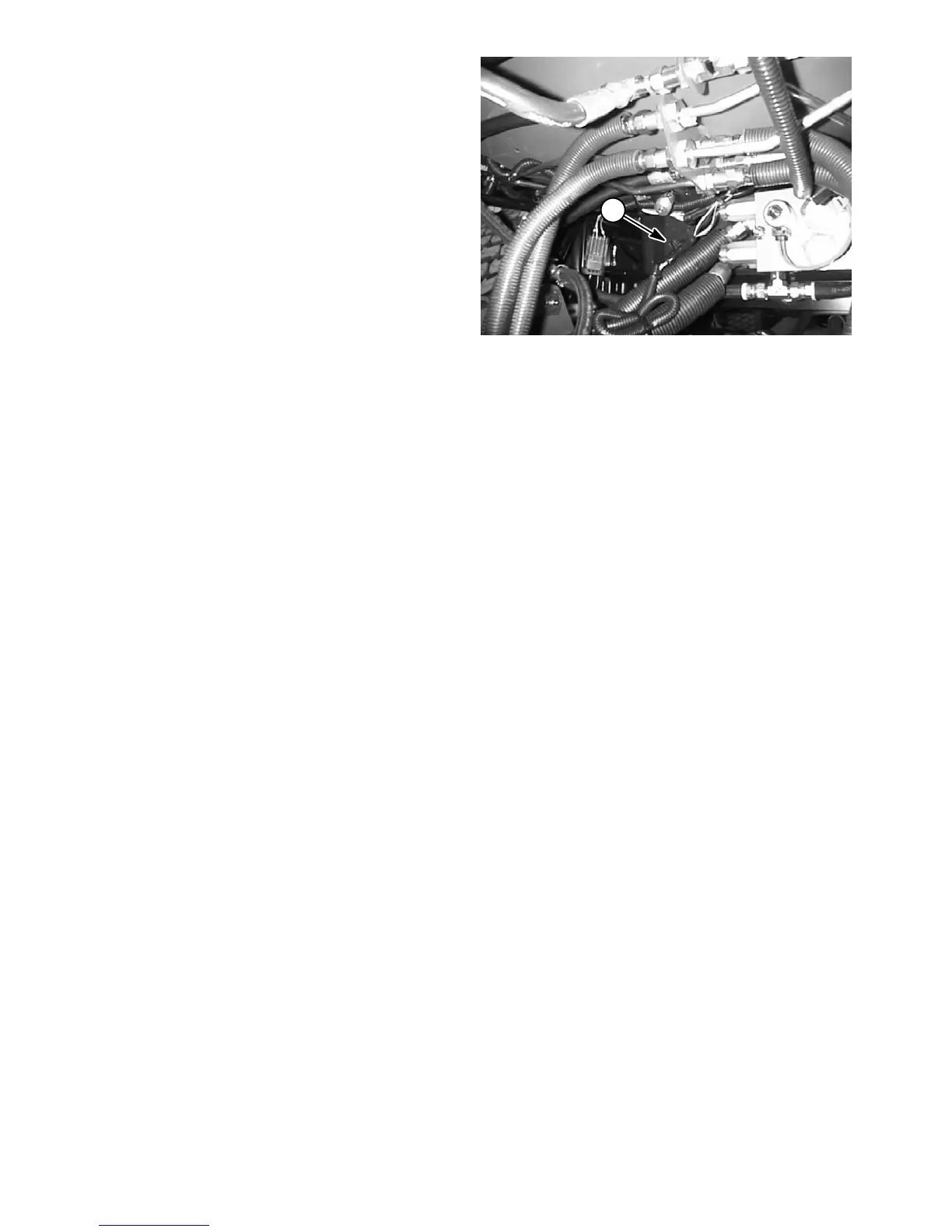

1. Cutting deck wire harness connection
Figure 5
1
